Toyota COROLLA SED (JPP) — CLUTCH & RELEASE FORK

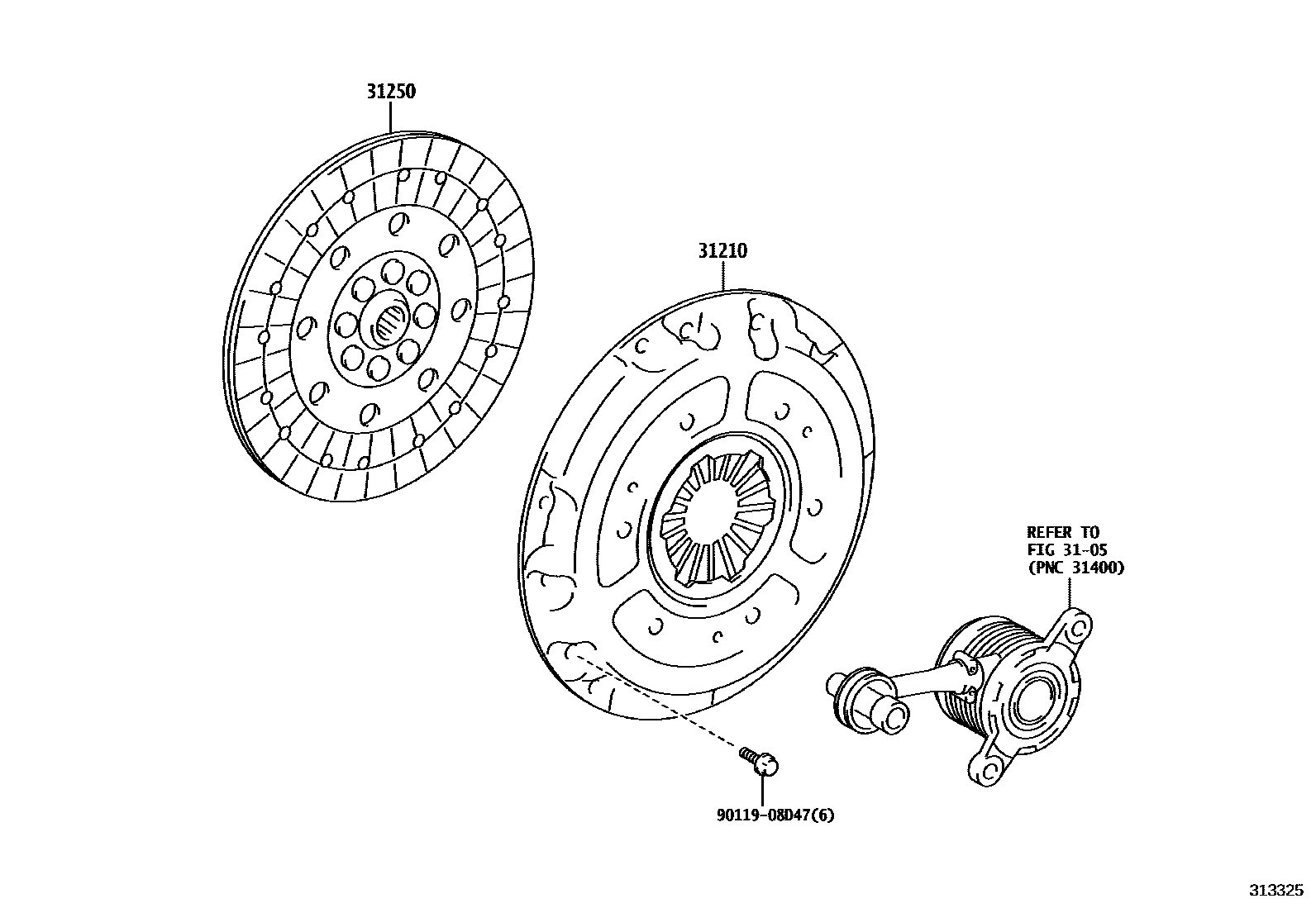

Parts diagram

3105

31210COVER ASSY, CLUTCH

main31210-12371i¥10,800201901-202004

main31210-12390i201909-202004

31250DISC ASSY, CLUTCH

main31250-12670i201909-202004

main31250-12680i¥15,300201901-202004

9011908D47

main90119-08D47¥80

4 parts on this diagram · 2 diagrams in section
