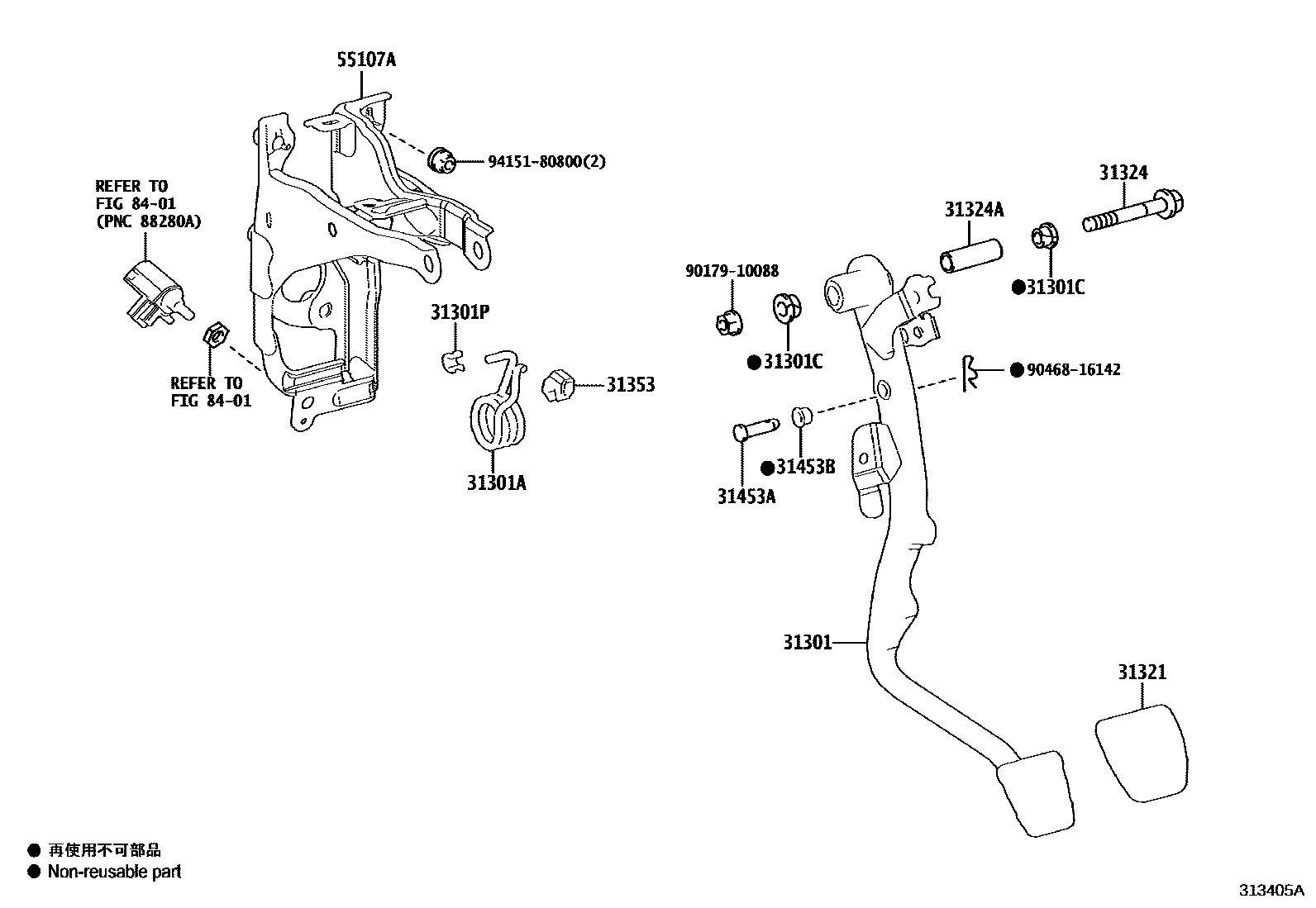

Toyota COROLLA SED (JPP) — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02600iMZEA12..6F¥1,690201909-202004

main31301-02600iMZEA12..6F¥1,690202004

main31301-02610iZRE212..6F202004

main31301-02610iZRE212..6F201901-202004

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iMZEA12,ZRE212..6F¥630202104

main90949-03068iMZEA12,ZRE212..6F¥510202004-202103

main90949-03068iMZEA12,ZRE212..6F¥510201901-202004

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMZEA12,ZRE212..6F¥120201901-202004

main90386-13015iMZEA12,ZRE212..6F¥120202004

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iMZEA12,ZRE212..6F¥100201901-202004

main90389-06055iMZEA12,ZRE212..6F¥100202004

31321PAD, CLUTCH PEDAL

main31321-42010iMZEA12,ZRE212..6F¥230202004

main31321-42010iMZEA12,ZRE212..6F¥230201901-202004

31324SHAFT, CLUTCH PEDAL

main90105-10524iMZEA12,ZRE212..6F¥160201901-202004

main90105-10524iMZEA12,ZRE212..6F¥160202004

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMZEA12,ZRE212..6F¥370201901-202004

main90387-10003iMZEA12,ZRE212..6F¥370202004

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iMZEA12,ZRE212..6F¥210201901-202004

main31353-26010iMZEA12,ZRE212..6F¥210202004

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08084iMZEA12,ZRE212..6F¥120201901-202004

L=28.3

main90240-08084iMZEA12,ZRE212..6F¥120202004

L=28.3

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iMZEA12,ZRE212..6F¥110201901-202004

main90386-08033iMZEA12,ZRE212..6F¥110202004

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02510iMZEA12..6F¥2,110201909-202004

main55107-02510iMZEA12..6F¥2,110202004

main55107-02520iZRE212..6F202004

main55107-02520iZRE212..6F201901-202004

8401

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

15 parts on this diagram · 4 diagrams in section
