Toyota COROLLA SED (JPP) — ANTI-THEFT DEVICE

89780COMPUTER ASSY, TRANSPONDER KEY

main897H0-12020iMZEA12..6F¥4,040202004-202201

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main897H0-12020iMZEA18..D¥4,040201901-202409

main897H0-12021iMZEA12..6F¥4,040202202-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89782COIL, TRANSPONDER KEY

main89782-12060iMZEA12,ZRE212..D¥2,000201901-202409

89784COMPUTER, IMMOBILIZER CODE

main89784-12040iMZEA12,ZRE212,ZWE21#..L¥4,190202004-202208

SOUTH AFRICA SPEC&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main89784-12040iMZEA12,ZRE212,ZWE211..L¥4,190201901-202004

main89784-48060iMZEA12..D¥4,190202209-202508

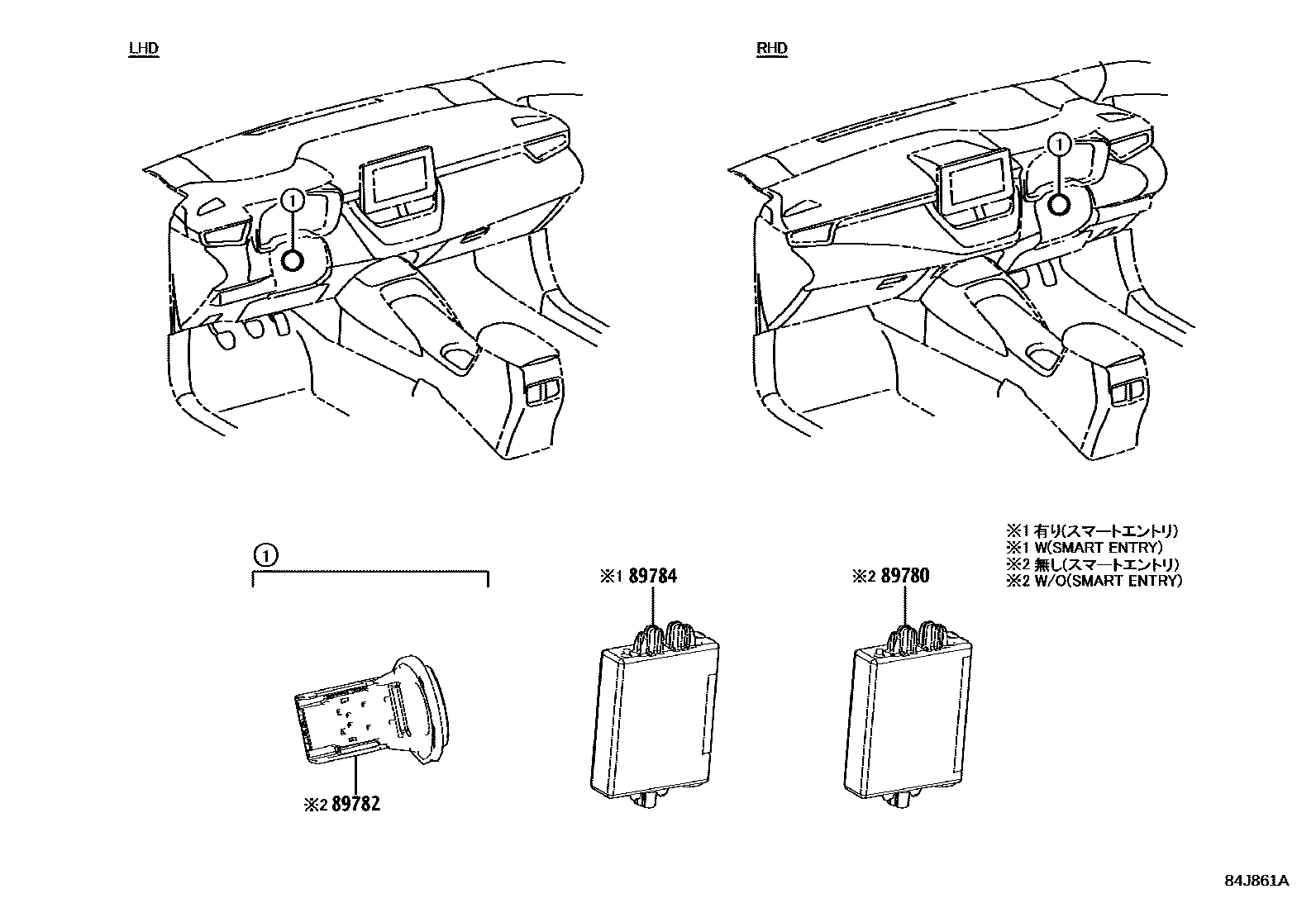

3 parts on this diagram · 1 diagram in section
