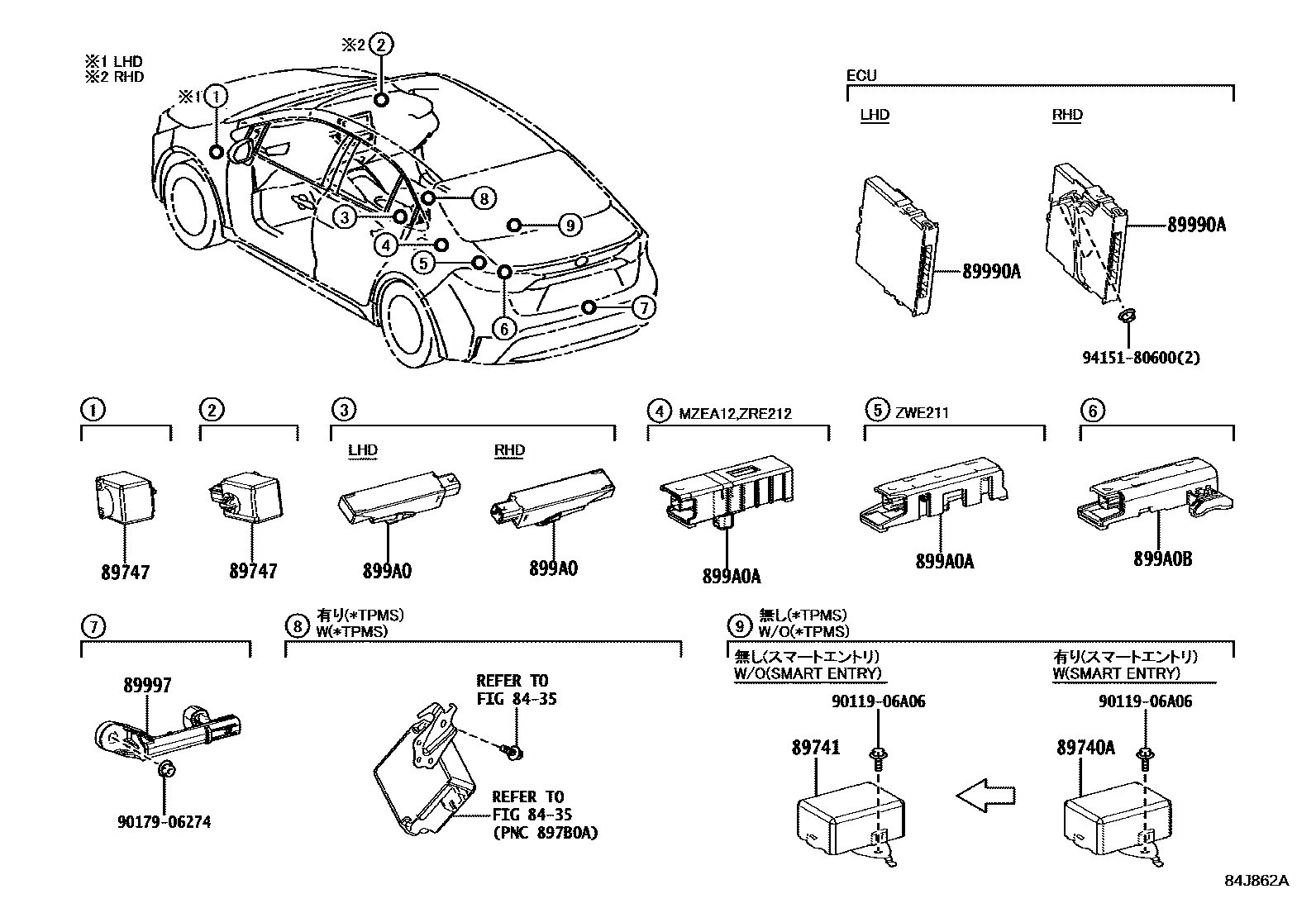

Toyota COROLLA SED (JPP) — WIRELESS DOOR LOCK

0001 1 0003 1

8435

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-12380iMZEA12..L201909-202508

main89740-12390iZWE219..MXC201901-202409

CENTRAL AMERICA 2 SPEC

main89740-12390iZWE219..MXC202209-202409

SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE(ALUMINUM)

main89740-12390iZWE219..MXC202209-202409

MAURITIUS SPEC&SPARE TIRE-GROUND TIRE(ALUMINUM)

main89740-12390iZWE219..MXC201901-202409

CENTRAL AMERICA 1 SPEC

main89740-12390iZRE212..RHD..L202001-202409

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17

main89740-12390iZRE212..RHD..L202001-202208

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main89740-12390iMZEA18..RHD202209-202307

89741RECEIVER, DOOR CONTROL

main89741-12730iMZEA12..6F201909-202208

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

main89741-12740iMZEA18..D201901-202409

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iMZEA1#,ZWE219¥2,900201901-202507

main89747-30040iZRE212..RHD..L¥2,900202001-202208

SOUTH AFRICA SPEC&SPARE TIRE-T125/70D17&WITH(SMART ENTRY) & WITHOUT(PANIC ALARM)

89990ACOMPUTER ASSY, SMART KEY

main899H0-12010iZRE212..LHD..L201901-202004

main899H0-12020iZWE211..MXC201901-202004

sub899H0-12730

main899H0-12030iMZEA12,ZRE212..RHD..L201909-202004

main899H0-12040iZWE211..ARL201909-202004

main899H0-12260iZRE212..LHD..L202004-202208

main899H0-12270iZWE21#..MXC202004-202208

main899H0-12280iMZEA12..6F202004-202105

SOUTH AFRICA SPEC

sub899H0-12281

main899H0-12281iMZEA12,ZRE212..RHD..L202106-202208

SOUTH AFRICA SPEC

main899H0-12290iZWE211..ARL202004-202208

main899H0-12540iMZEA12..L202209-202508

main899H0-12550iMZEA18..LHD..L202209-202508

main899H0-12560iZWE219..ARL202209-202508

main899H0-12570iZWE219..MXC202209-202508

main899H0-12580iMZEA18..RHD..D202209-202307

89997ANTENNA, ELECTRICAL KEY

main89997-30100iMZEA1#,ZWE219..L¥1,800201901-202507

main89997-30100iMZEA12,ZRE212,ZWE21#..L¥1,800202004-202208

SOUTH AFRICA SPEC

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iMZEA12..6F¥1,410202004-202208

SOUTH AFRICA SPEC

main899A0-12080iMZEA12..D¥1,410201901-202507

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12090iMZEA12,ZRE212..L¥1,560201901-202004

main899A0-12110iZWE211¥1,550201901-202004

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12100iMZEA12,ZRE212,ZWE211..L201901-202004

main899A0-12100iMZEA12,ZRE212,ZWE21#..L202004-202208

SOUTH AFRICA SPEC

main899A0-12130iMZEA18..RHD¥1,410202209-202507

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

12 parts on this diagram · 2 diagrams in section
