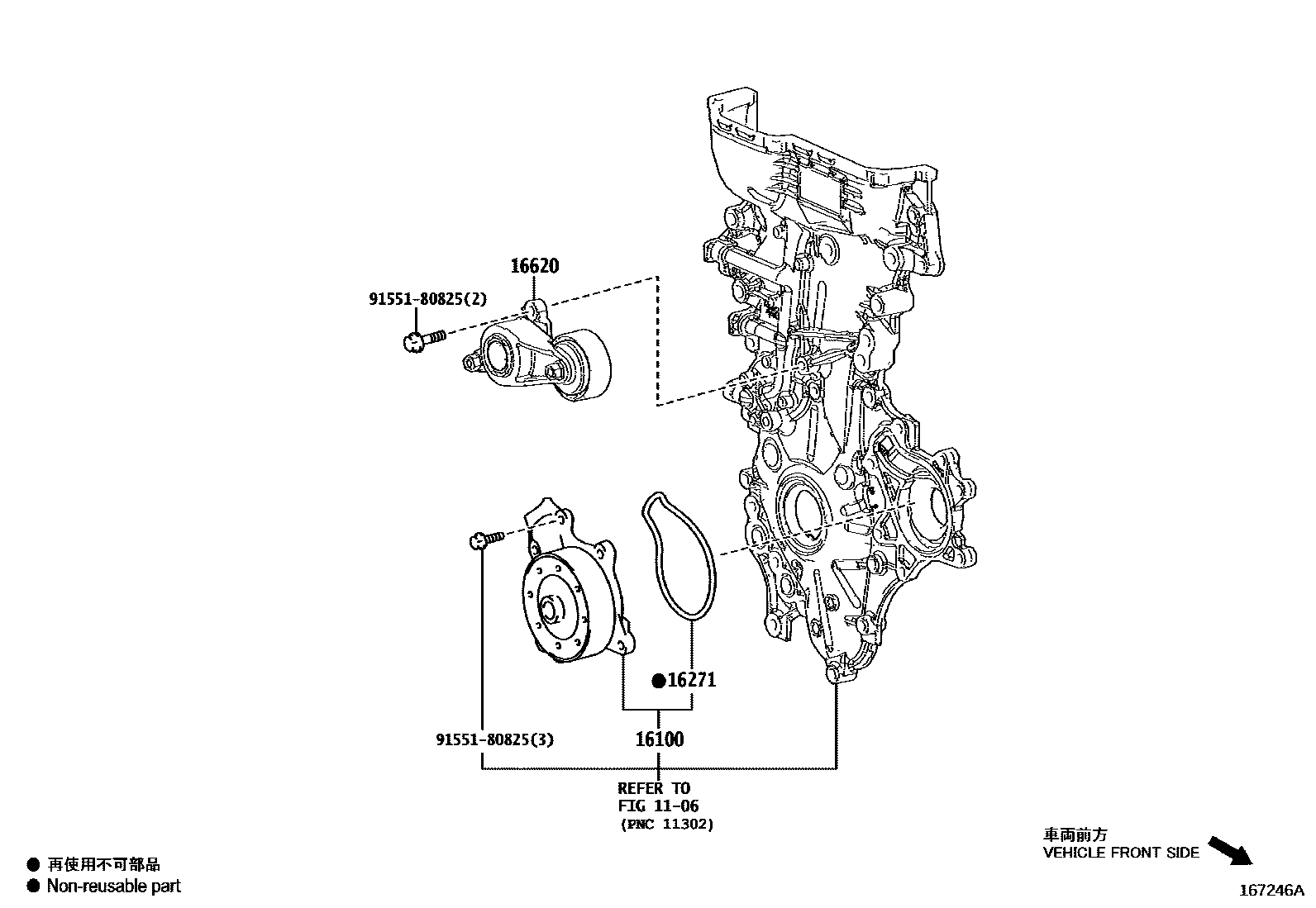

Toyota COROLLA SED (JPP) — WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39565i2ZRFAE..ZRE212¥10,500201901-202004

main16100-39565i2ZRFAE..ZRE212¥10,500202004-202208

main161A0-39035i2ZRFXE..ZWE211¥15,000201901-202004

main161A0-39035i2ZRFXE..ZWE21#¥15,000202004-202208

main161A0-39045i2ZRFXE..ZWE219¥15,000202409

main161A0-39045i2ZRFXE..ZWE219¥15,000202209-202409

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZWE211¥470201901-202004

main16271-37020i2ZRFXE..ZWE219¥470202409

main16271-37020i2ZRFXE..ZWE21#¥470202004-202208

main16271-37020i2ZRFXE..ZWE219¥470202209-202409

main16271-37030i2ZRFAE..ZRE212¥520202004-202208

main16271-37030i2ZRFAE..ZRE212¥520201901-202004

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T040i2ZRFAE..ZRE212¥11,200202004-202208

main16620-0T040i2ZRFAE..ZRE212¥11,200201901-202004

9155180825

main91551-80825¥80

5 parts on this diagram · 2 diagrams in section
