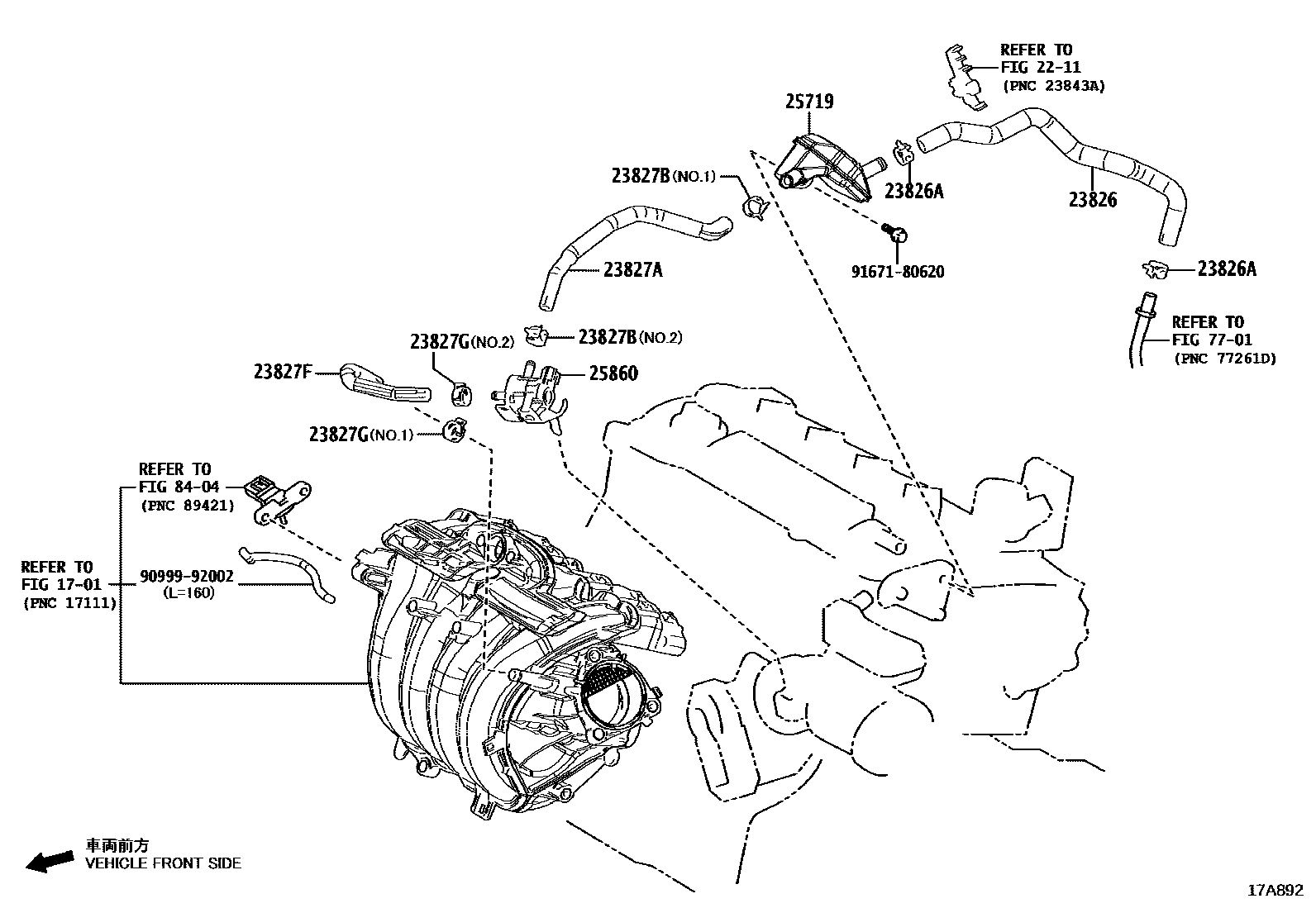

Toyota COROLLA SED (JPP) — VACUUM PIPING
1701
2211
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23827FHOSE, FUEL VAPOR FEED, NO.3
23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
25719TANK, VACUUM SURGE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
8404
9099992002
9167180620
14 parts on this diagram · 4 diagrams in section
