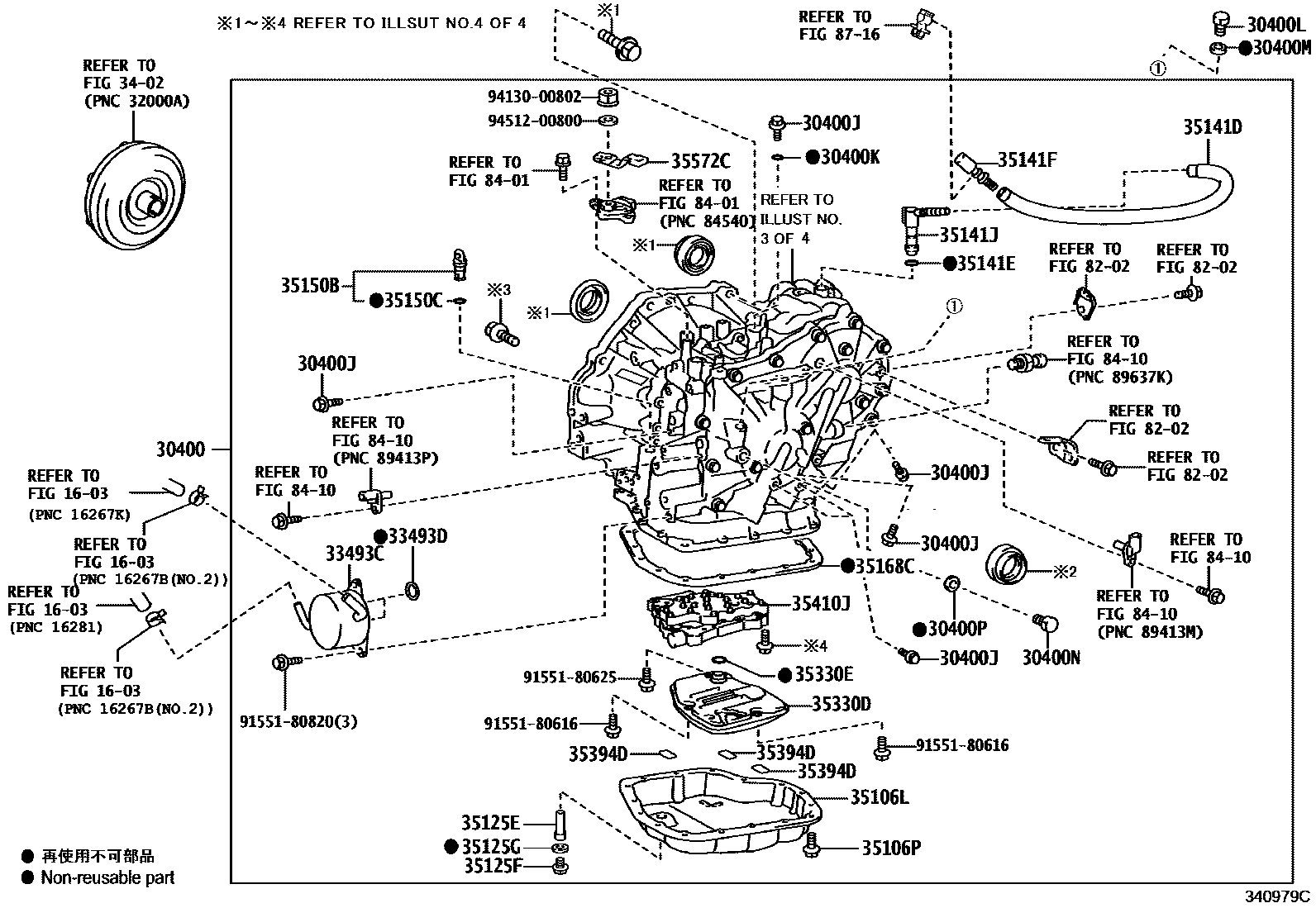

Toyota COROLLA SED (JPP) — TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K120,TMH:REFER TO ILLUST.
K120,AISIN:REFER TO ILL.
K120,TMH:REFER TO ILLUST.
K120,AISIN:REFER TO ILL.
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400LPLUG , FILLER(CVT)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
30400MGASKET, FILLER PLUG(CVT)
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
AISIN AW:REF.ILLUST
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
AISIN AW:REF.ILLUST
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
AISIN AW:REF.ILLUST
TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.
35410JBODY ASSY, TRANSMISSION VALVE
AISIN AW:REF.ILLUST
TMH:REFER TO ILLUST.
AISIN:REFER TO ILL.
35572CLEVER, TRANSMISSION CONTROL SHAFT
8202
8401
8410
8716
9155180616
9155180625
9155180820
9413000802
9451200800
37 parts on this diagram · 10 diagrams in section
