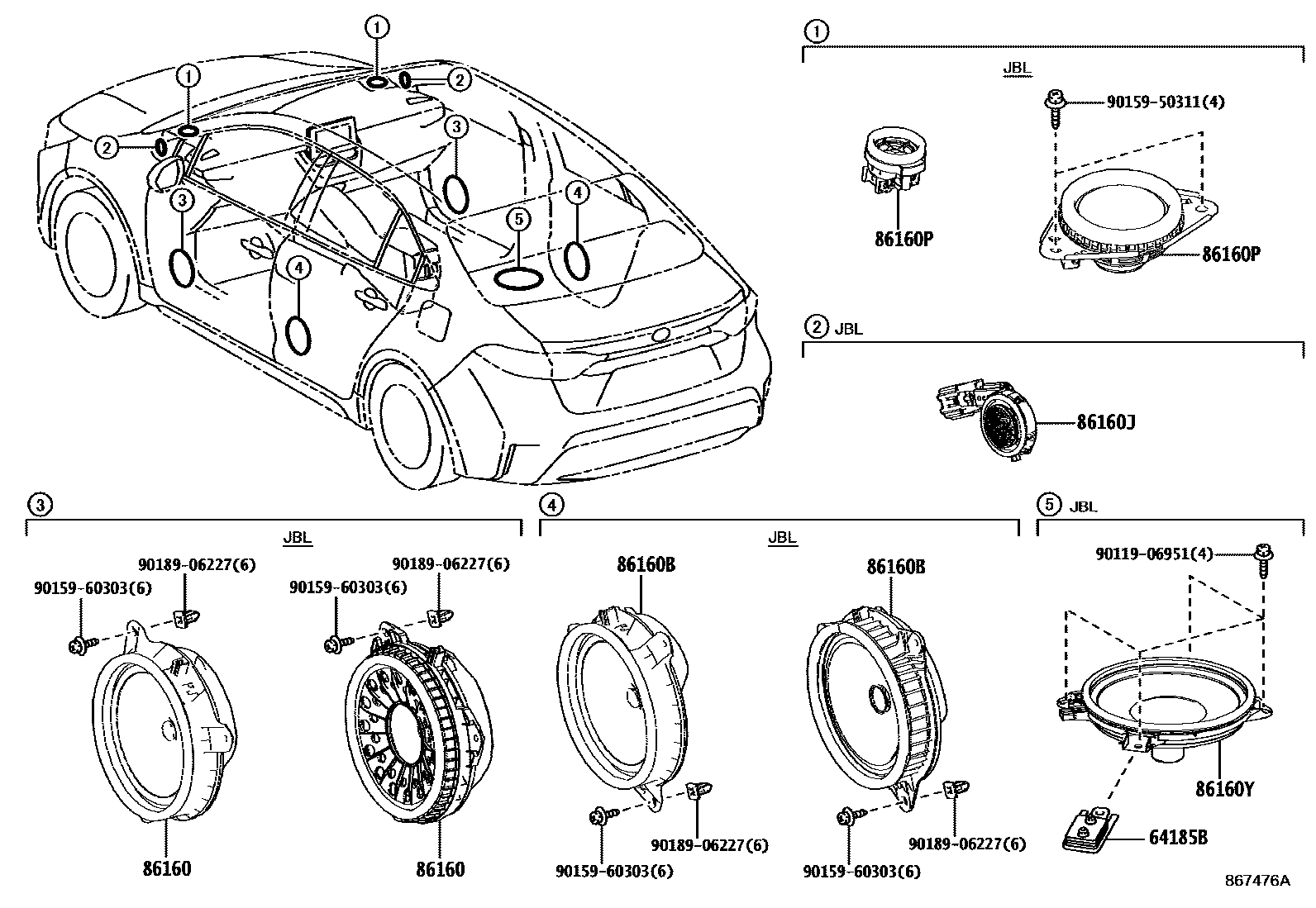

Toyota COROLLA SED (JPP) — SPEAKER

64185BDAMPER, UPPER BACK, NO.1

86160SPEAKER ASSY, FRONT NO.1

main86160-1A210iMZEA12..D¥6,300202409-202507

main86160-1A210iMZEA18;MZEA12,ZWE219..L¥6,300202409

main86160-1A210iMZEA12,ZRE212,ZWE211¥6,300201901-202004

main86160-1A210iMZEA12,ZRE212,ZWE21#¥6,300202004-202208

main86160-1A210iMZEA18..RHD¥6,300202209-202307

main86160-1A210iMZEA18..LHD;MZEA12,ZWE219¥6,300202209-202409

86160BSPEAKER ASSY, REAR

main86160-1A210iMZEA12..D¥6,300202409-202507

main86160-1A210iMZEA18;MZEA12,ZWE219..L¥6,300202409

main86160-1A210iMZEA12,ZRE212,ZWE211¥6,300201901-202004

main86160-1A210iMZEA12,ZRE212,ZWE21#¥6,300202004-202208

main86160-1A210iMZEA18..RHD¥6,300202209-202307

main86160-1A210iMZEA18..LHD;MZEA12,ZWE219¥6,300202209-202409

86160JSPEAKER ASSY, FRONT NO.3

86160PSPEAKER ASSY, FRONT NO.2

main86160-52340iMZEA12..D¥5,200202409-202507

main86160-52340iMZEA18;MZEA12,ZWE219..L¥5,200202409

main86160-52340iMZEA12,ZRE212,ZWE211¥5,200201901-202004

main86160-52340iMZEA12,ZRE212,ZWE21#¥5,200202004-202208

main86160-52340iMZEA18..RHD¥5,200202209-202307

main86160-52340iMZEA18..LHD;MZEA12,ZWE219¥5,200202209-202409

86160YSPEAKER ASSY, REAR NO.2

9011906951

main90119-06951¥80

9015950311

main90159-50311¥70

9015960303

main90159-60303¥70

9018906227

main90189-06227¥70

10 parts on this diagram · 1 diagram in section
