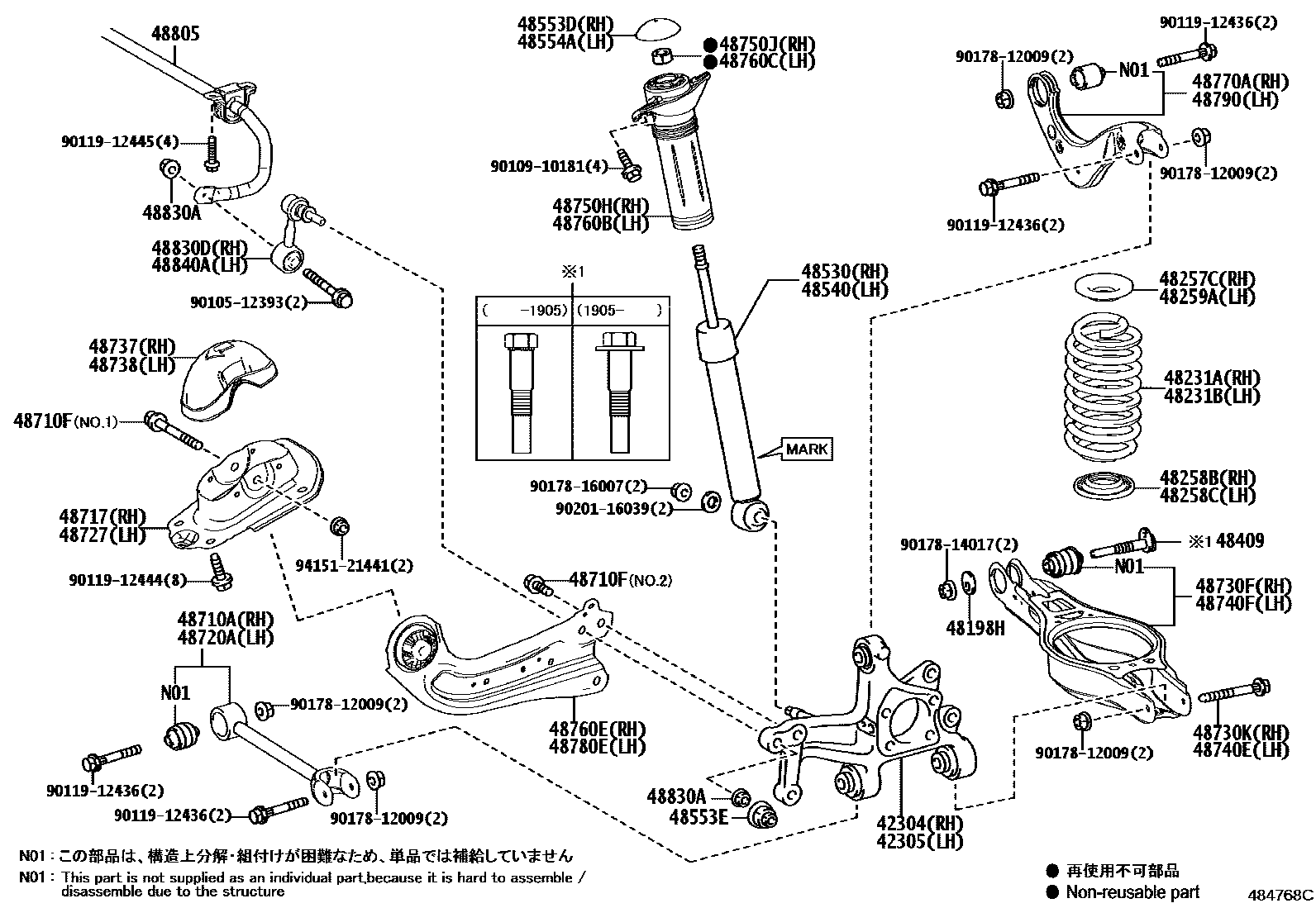

Toyota COROLLA SED (JPP) — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
SOUTH AFRICA SPEC
TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL
SOUTH AFRICA SPEC
MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD
48231BSPRING, COIL, REAR LH
SOUTH AFRICA SPEC
TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL
MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD
SOUTH AFRICA SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-12J90
MARK 48530-12J61
MARK 48530-12J71
MARK 48530-12G21
MARK 48530-12M30
MARK 48530-12P00
MARK 48530-12P00,TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-12J90
MARK 48530-12J61
MARK 48530-12J71
MARK 48530-12G21
MARK 48530-12M30
MARK 48530-12P00,TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL
MARK 48530-12P00
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
NO.1
NO.2
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48805BAR SUB-ASSY, REAR STABILIZER
TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512393
9010910181
9011912436
9011912444
9011912445
9017812009
9017814017
9017816007
9020116039
9415121441
48 parts on this diagram · 2 diagrams in section
