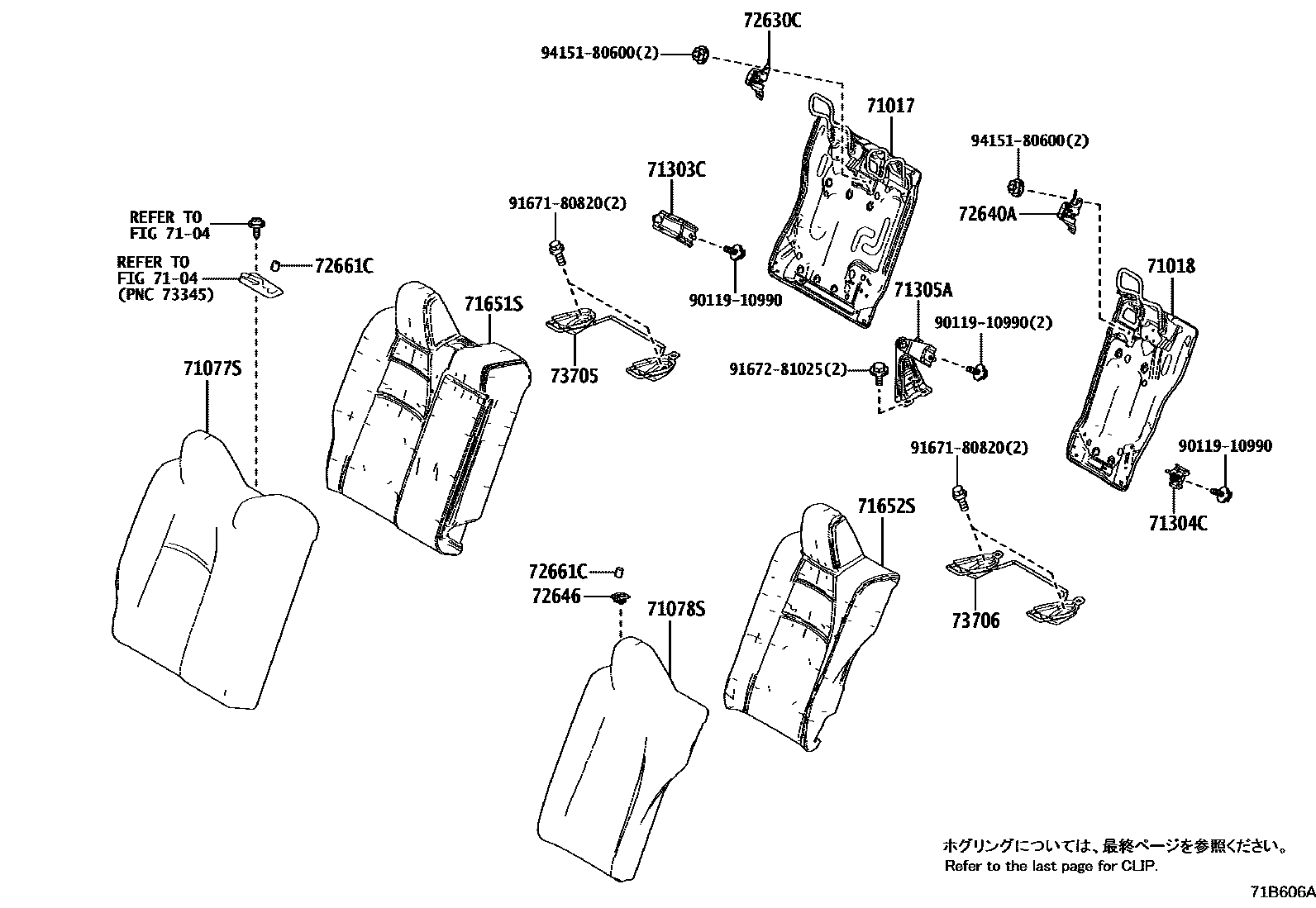

Toyota COROLLA SED (JPP) — REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
71018FRAME SUB-ASSY, REAR SEATBACK, LH
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE),BLACK/GRAY DOT,TRIM2#
BLACK/GRAY DOT,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEATHEATER-WITH(DRIVER & PASSENGER)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72646GROMMET, REAR SEATBACK STOP BUTTON
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
9011910990
9167180820
9167281025
9415180600
20 parts on this diagram · 7 diagrams in section
