Toyota COROLLA SED (JPP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

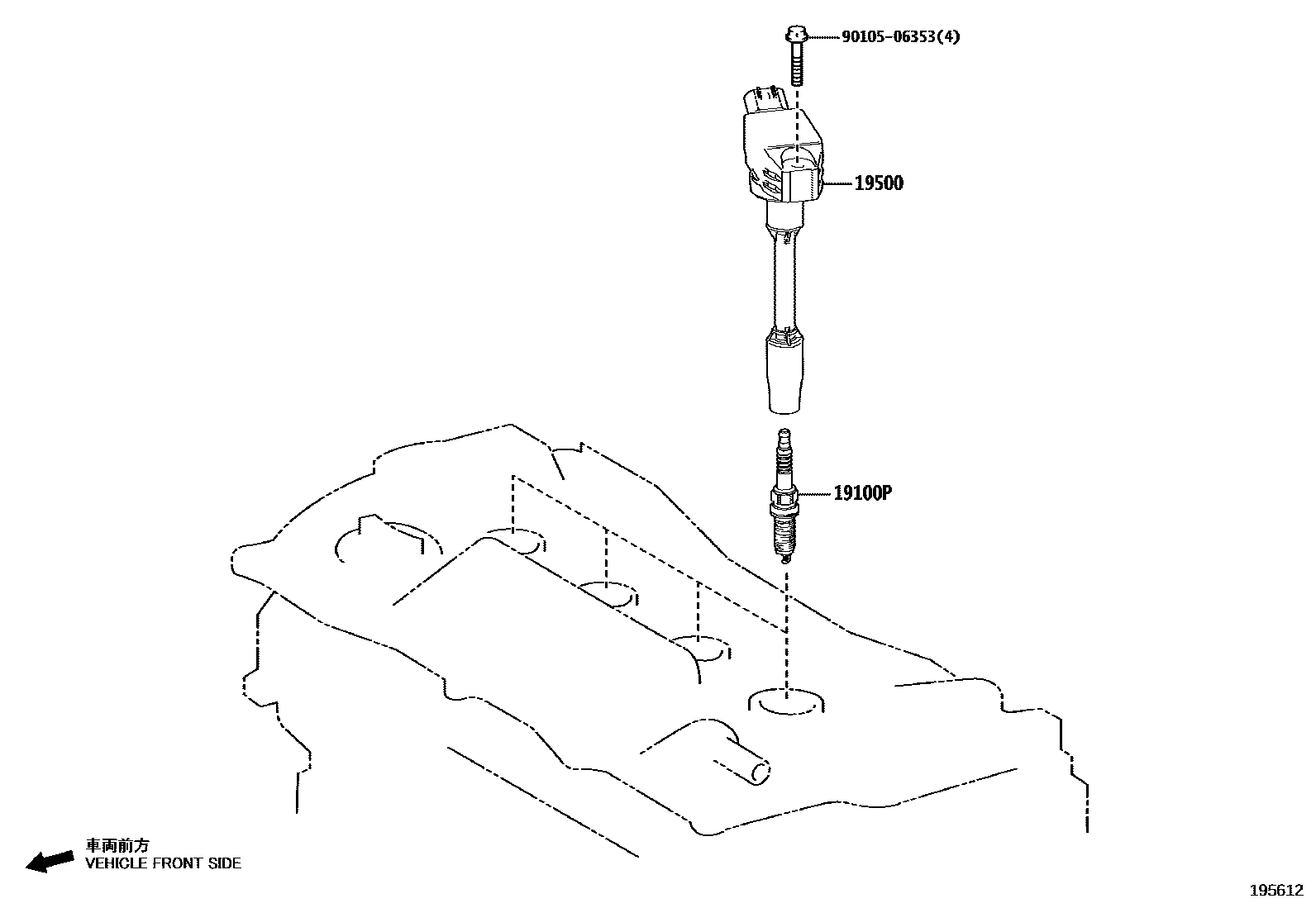

Parts diagram

19100PPLUG, SPARK

main90919-01289i¥2,300201901-202208

FC16HR-Q8

main90919-01297i¥2,300201909-202507

FC20HR-Q8

main90919-01298i¥2,400201901-202409

FC16HR-CY9

19500COIL ASSY, IGNITION

main90919-02272i¥8,300201901-202208

main90919-02276i¥7,500201901-202507

main90919-02277i¥7,500202209-202409

9010506353

main90105-06353¥60

3 parts on this diagram · 3 diagrams in section
