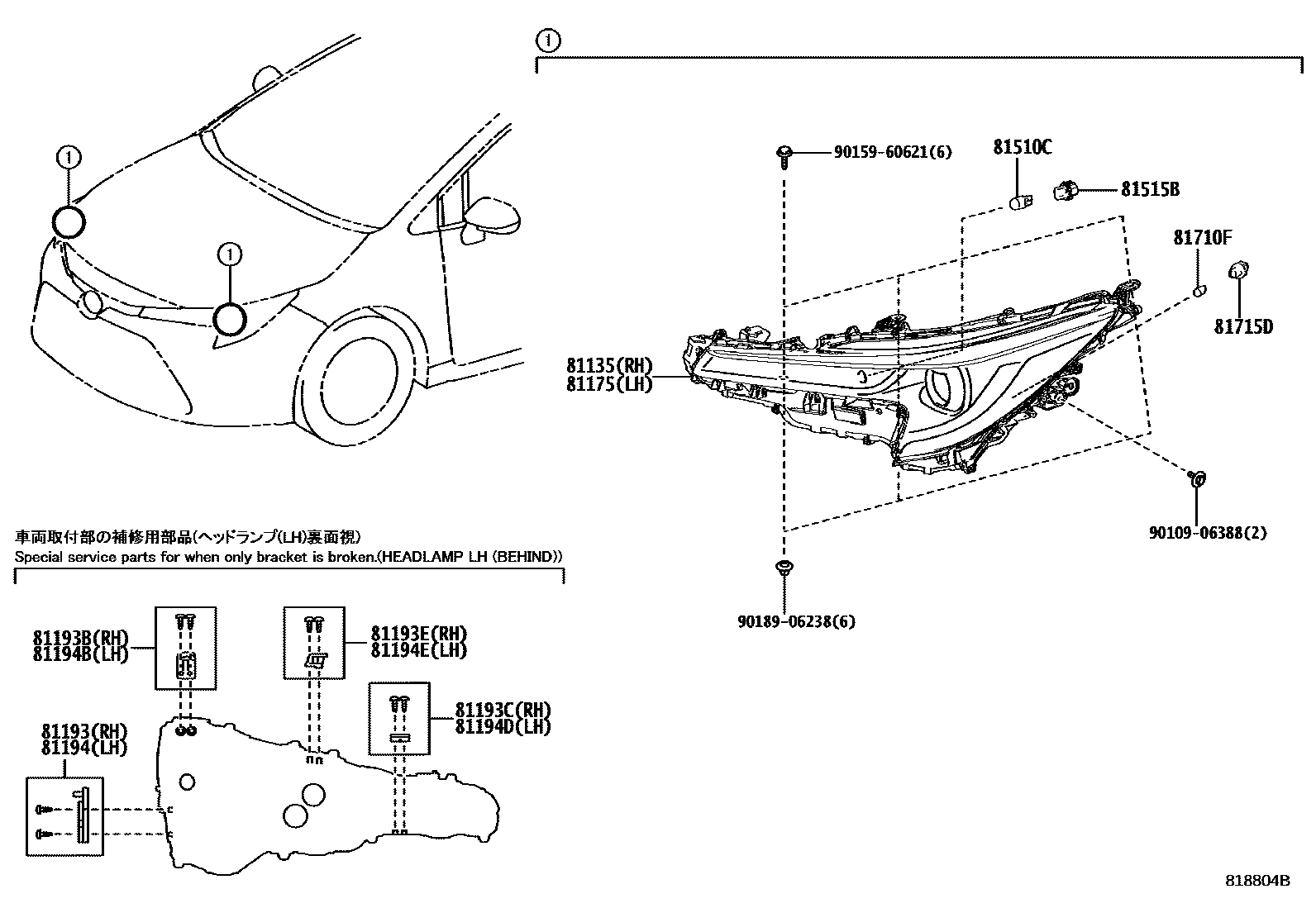

Toyota COROLLA SED (JPP) — HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
CENTRAL AMERICA 2 SPEC
CENTRAL AMERICA 1 SPEC
(DECONTENT)
SOUTH AFRICA SPEC&DECONTENT PACKAGE 2&ACTIVE SAFETY PACKAGE-WITHOUT
MAURITIUS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
HIGH GRADE PACKAGE
sub81140-02S30
DECONTENT PACKAGE
81175UNIT ASSY, HEADLAMP, LH
sub81070-02S30
DECONTENT PACKAGE
(DECONTENT)
CENTRAL AMERICA 1 SPEC
CENTRAL AMERICA 2 SPEC
SOUTH AFRICA SPEC&DECONTENT PACKAGE 2&ACTIVE SAFETY PACKAGE-WITHOUT
MAURITIUS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
HIGH GRADE PACKAGE
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
SOUTH AFRICA SPEC
HIGH GRADE PACKAGE
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 28/8W,DECONTENT PACKAGE
12V 28/8W
81515BSOCKET, FRONT TURN SIGNAL LAMP
DECONTENT PACKAGE
81710FBULB, FRONT SIDE MAKER LAMP
HIGH GRADE PACKAGE
DECONTENT PACKAGE
81715DSOCKET PLUG, FRONT MARKER LAMP
HIGH GRADE PACKAGE
DECONTENT PACKAGE
9010906388
9015960621
9018906238
17 parts on this diagram · 6 diagrams in section
