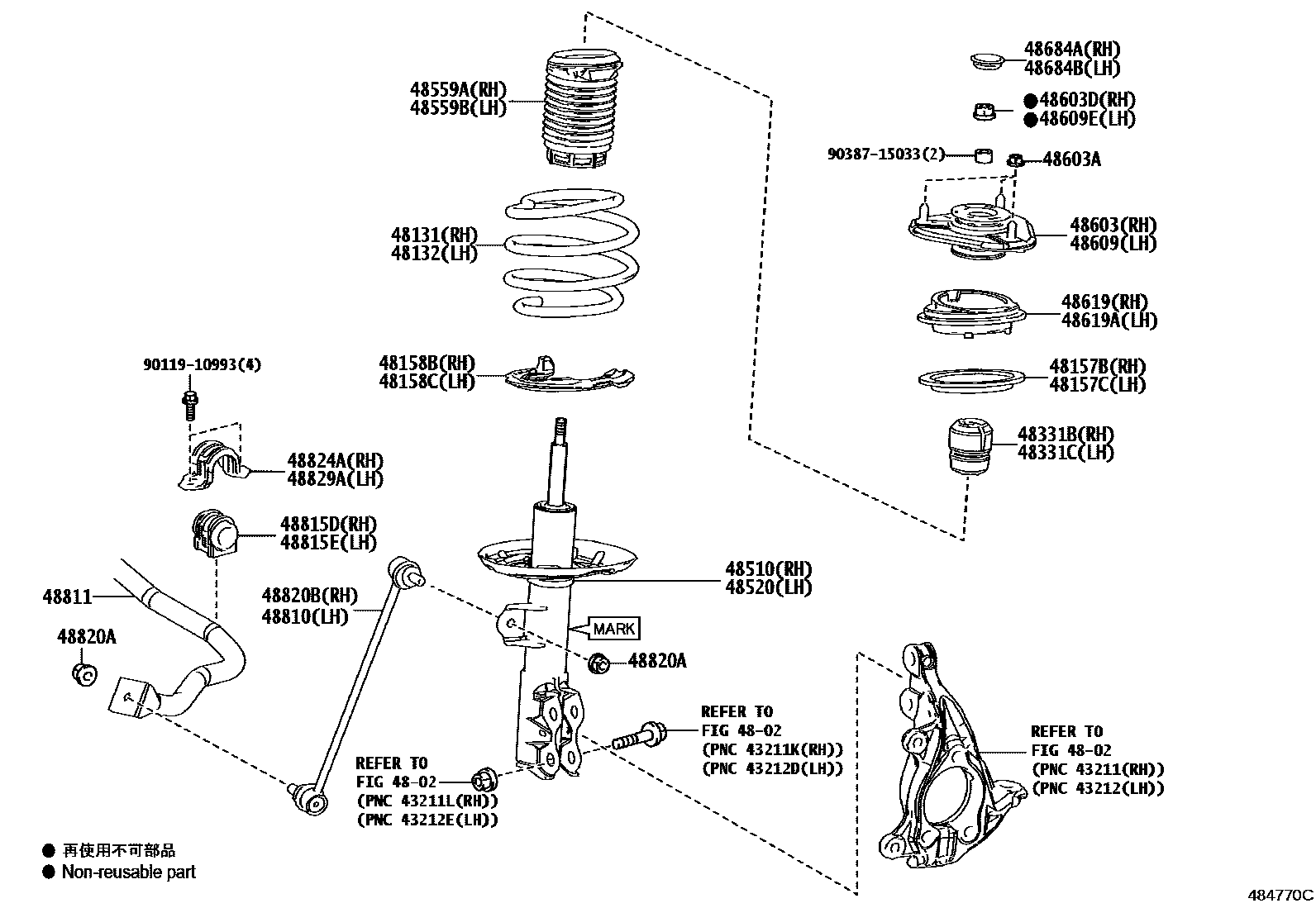

Toyota COROLLA SED (JPP) — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-12F60iMZEA12..D201909-202004

main48131-12F60iZRE212..RHD..L202004-202208

SOUTH AFRICA SPEC

main48131-12F80iZWE211..ARL201909-202004

sub48131-12F81

main48131-12F80iZWE211..ARL202004-202110

sub48131-12F81

main48131-12F81iZWE211..ARL202110-202208

main48131-12G00iZRE212¥5,100201901-202004

main48131-12G00iZRE212¥5,100202004-202208

main48131-12G10iZWE21#..MXC202004-202208

main48131-12G10iZWE211..MXC201901-202004

main48131-12J10iMZEA12..L201909-202004

main48131-12J10iMZEA12..L202004-202208

main48131-12L20iMZEA18202409

main48131-12L20iMZEA18..RHD202209-202307

main48131-12L20iMZEA18..LHD202209-202409

main48131-12L30iZWE219..ARL202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48131-12L30iZWE219..ARL202409

SOUTH AFRICA SPEC

main48131-12L30iZWE219..MXC202209-202409

SOUTH AFRICA SPEC

main48131-12L30iZWE219..MXC202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48131-12M30iMZEA12202209-202409

main48131-12M30iMZEA12..L202409

main48131-12M30iMZEA12..D202409-202507

main48131-12M40iZWE219..ARL202209-202409

main48131-12M40iZWE219..ARL202409

48132SPRING, FRONT COIL, LH

main48131-12F60iMZEA12..D201909-202004

main48131-12F60iMZEA12..D202004-202208

SOUTH AFRICA SPEC

main48131-12F80iZWE211..ARL202004-202110

sub48131-12F81

main48131-12F80iZWE211..ARL201909-202004

sub48131-12F81

main48131-12F81iZWE211..ARL202110-202208

main48131-12G00iZRE212¥5,100201901-202004

main48131-12G00iZRE212¥5,100202004-202208

main48131-12G10iZWE211..MXC201901-202004

main48131-12G10iZWE21#..MXC202004-202208

main48131-12J10iMZEA12..L201909-202004

main48131-12J10iMZEA12..L202004-202208

main48131-12L20iMZEA18..LHD202209-202409

main48131-12L20iMZEA18202409

main48131-12L20iMZEA18..RHD202209-202307

main48131-12L30iZWE219..ARL202409

SOUTH AFRICA SPEC

main48131-12L30iZWE219..ARL202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48131-12L30iZWE219..MXC202209-202409

SOUTH AFRICA SPEC

main48131-12L30iZWE219..MXC202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48131-12M30iMZEA12202209-202409

main48131-12M30iMZEA12..L202409

main48131-12M30iMZEA12..D202409-202507

main48131-12M40iZWE219..ARL202409

main48131-12M40iZWE219..ARL202209-202409

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47030iMZEA18;MZEA12,ZWE219..L¥410202409

main48157-47030iMZEA12,ZRE212,ZWE211¥410201901-202004

main48157-47030iMZEA12,ZRE212,ZWE21#¥410202004-202208

main48157-47030iMZEA18..LHD;MZEA12,ZWE219¥410202209-202409

main48157-47030iMZEA18..RHD¥410202209-202307

main48157-47030iMZEA12..D¥410202409-202507

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47030iMZEA18;MZEA12,ZWE219..L¥410202409

main48157-47030iMZEA12,ZRE212,ZWE21#¥410202004-202208

main48157-47030iMZEA18..RHD¥410202209-202307

main48157-47030iMZEA18..LHD;MZEA12,ZWE219¥410202209-202409

main48157-47030iMZEA12..D¥410202409-202507

main48157-47030iMZEA12,ZRE212,ZWE211¥410201901-202004

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47020iMZEA12,ZRE212,ZWE21#¥680202004-202208

main48158-47020iMZEA12..D¥680202409-202507

main48158-47020iMZEA18;MZEA12,ZWE219..L¥680202409

main48158-47020iMZEA12,ZRE212,ZWE211¥680201901-202004

main48158-47020iMZEA18..RHD¥680202209-202307

main48158-47020iMZEA18..LHD;MZEA12,ZWE219¥680202209-202409

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47020iMZEA18..LHD;MZEA12,ZWE219¥680202209-202409

main48158-47020iMZEA12..D¥680202409-202507

main48158-47020iMZEA18;MZEA12,ZWE219..L¥680202409

main48158-47020iMZEA12,ZRE212,ZWE211¥680201901-202004

main48158-47020iMZEA12,ZRE212,ZWE21#¥680202004-202208

main48158-47020iMZEA18..RHD¥680202209-202307

48331BBUMPER, FRONT SPRING, RH

main48331-10120iMZEA12,ZWE211..ARL¥370201909-202004

main48331-10120iMZEA12,ZWE211..ARL¥370202004-202208

SOUTH AFRICA SPEC

main48331-10120iMZEA12,ZWE219..L..ARL¥370202409

main48331-10120iMZEA12..D¥370202409-202507

main48331-10120iMZEA12,ZWE219..ARL¥370202209-202409

main48331-12280iZRE212,ZWE211..GEN,MXC201901-202004

main48331-12280iZRE212,ZWE21#..GEN,MXC202004-202208

main48331-12280iMZEA18..RHD202209-202307

main48331-12280iMZEA18,ZWE219..LHD202209-202409

SOUTH AFRICA SPEC

main48331-12280iMZEA18,ZWE219..LHD202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48331-12280iMZEA18,ZWE219..LHD202409

SOUTH AFRICA SPEC

main48331-12280iMZEA18,ZWE219..LHD202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

48331CBUMPER, FRONT SPRING, LH

main48331-10120iMZEA12..D¥370202409-202507

main48331-10120iMZEA12,ZWE219..L..ARL¥370202409

main48331-10120iMZEA12,ZWE219..ARL¥370202209-202409

main48331-10120iMZEA12,ZWE211..ARL¥370201909-202004

main48331-10120iMZEA12,ZWE211..ARL¥370202004-202208

SOUTH AFRICA SPEC

main48331-12280iZWE219..ARL202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48331-12280iMZEA18,ZWE219..LHD202409

SOUTH AFRICA SPEC

main48331-12280iMZEA18,ZWE219..LHD202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48331-12280iZRE212,ZWE211..GEN,MXC201901-202004

main48331-12280iZRE212,ZWE21#..GEN,MXC202004-202208

main48331-12280iMZEA18..RHD202209-202307

main48331-12280iMZEA18,ZWE219..LHD202209-202409

SOUTH AFRICA SPEC

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A54iZRE212202004-202012

MARK 48510-12J20

main48510-80A54iZRE212201901-202004

MARK 48510-12J20

main48510-80A55iMZEA12201909-202004

MARK 48510-12J40

main48510-80A55iMZEA12202004-202012

MARK 48510-12J40

main48510-80A57iZWE21#202004-202012

MARK 48510-12J70

sub48510-80B78

main48510-80A57iZWE211201901-202004

MARK 48510-12J70

sub48510-80B78

main48510-80B77iZRE212¥16,100202012-202208

MARK 48510-12J11

main48510-80B78iZWE21#202012-202208

MARK 48510-12J71

main48510-80B79iMZEA12202012-202208

MARK 48510-12J51

main48510-8Z579iZWE219202209-202409

MARK 48510-12F70

main48510-8Z579iZWE219202409

MARK 48510-12F70

main48510-8Z581iMZEA12..D202409-202507

MARK 48510-12J00

main48510-8Z581iMZEA12..L202409

MARK 48510-12J00

main48510-8Z581iMZEA12202209-202409

MARK 48510-12J00

main48510-8Z582iMZEA18202409

MARK 48510-12M90

main48510-8Z582iMZEA18..LHD202209-202409

MARK 48510-12M90

main48510-8Z582iMZEA18..RHD202209-202307

MARK 48510-12M90

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80614iZRE212201901-202004

MARK 48520-12J20

main48520-80614iZRE212202004-202012

MARK 48520-12J20

main48520-80615iMZEA12202004-202012

MARK 48520-12J40

main48520-80615iMZEA12201909-202004

MARK 48520-12J40

main48520-80617iZWE21#202004-202012

MARK 48520-12J70

sub48520-80729

main48520-80617iZWE211201901-202004

MARK 48520-12J70

sub48520-80729

main48520-80728iZRE212¥16,100202012-202208

MARK 48520-12J11

main48520-80729iZWE21#202012-202208

MARK 48520-12J71

main48520-80730iMZEA12202012-202208

MARK 48520-12J51

main48520-8Z404iZWE219202209-202409

MARK 48520-12F70

main48520-8Z404iZWE219202409

MARK 48520-12F70

main48520-8Z406iMZEA12..D202409-202507

MARK 48520-12J00

main48520-8Z406iMZEA12..L202409

MARK 48520-12J00

main48520-8Z406iMZEA12202209-202409

MARK 48520-12J00

main48520-8Z407iMZEA18..RHD202209-202307

MARK 48520-12M90

main48520-8Z407iMZEA18..LHD202209-202409

MARK 48520-12M90

main48520-8Z407iMZEA18202409

MARK 48520-12M90

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-47010iMZEA12,ZRE212,ZWE21#¥1,440202004-202208

main48559-47010iMZEA18..RHD¥1,440202209-202307

main48559-47010iMZEA12..D¥1,440202409-202507

main48559-47010iMZEA18..LHD;MZEA12,ZWE219¥1,440202209-202409

main48559-47010iMZEA18;MZEA12,ZWE219..L¥1,440202409

main48559-47010iMZEA12,ZRE212,ZWE211¥1,440201901-202004

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-47010iMZEA18..RHD¥1,440202209-202307

main48559-47010iMZEA12..D¥1,440202409-202507

main48559-47010iMZEA18;MZEA12,ZWE219..L¥1,440202409

main48559-47010iMZEA12,ZRE212,ZWE211¥1,440201901-202004

main48559-47010iMZEA12,ZRE212,ZWE21#¥1,440202004-202208

main48559-47010iMZEA18..LHD;MZEA12,ZWE219¥1,440202209-202409

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47060iMZEA12..D¥4,220202409-202507

main48609-47060iMZEA18;MZEA12,ZWE219..L¥4,220202409

main48609-47060iMZEA12,ZRE212,ZWE211¥4,220201901-202004

main48609-47060iMZEA12,ZRE212,ZWE21#¥4,220202004-202208

main48609-47060iMZEA18..RHD¥4,220202209-202307

main48609-47060iMZEA18..LHD;MZEA12,ZWE219¥4,220202209-202409

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iMZEA12..D¥100202409-202507

main90178-10029iMZEA18;MZEA12,ZWE219..L¥100202409

main90178-10029iMZEA12,ZRE212,ZWE211¥100201901-202004

main90178-10029iMZEA12,ZRE212,ZWE21#¥100202004-202208

main90178-10029iMZEA18..RHD¥100202209-202307

main90178-10029iMZEA18..LHD;MZEA12,ZWE219¥100202209-202409

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iMZEA12,ZRE212,ZWE21#¥120202004-202208

main90177-14007iMZEA12..D¥120202409-202507

main90177-14007iMZEA18;MZEA12,ZWE219..L¥120202409

main90177-14007iMZEA12,ZRE212,ZWE211¥120201901-202004

main90177-14007iMZEA18..RHD¥120202209-202307

main90177-14007iMZEA18..LHD;MZEA12,ZWE219¥120202209-202409

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47060iMZEA12,ZRE212,ZWE211¥4,220201901-202004

main48609-47060iMZEA12,ZRE212,ZWE21#¥4,220202004-202208

main48609-47060iMZEA18..RHD¥4,220202209-202307

main48609-47060iMZEA18..LHD;MZEA12,ZWE219¥4,220202209-202409

main48609-47060iMZEA12..D¥4,220202409-202507

main48609-47060iMZEA18;MZEA12,ZWE219..L¥4,220202409

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iMZEA18..LHD;MZEA12,ZWE219¥120202209-202409

main90177-14007iMZEA12,ZRE212,ZWE211¥120201901-202004

main90177-14007iMZEA12,ZRE212,ZWE21#¥120202004-202208

main90177-14007iMZEA12..D¥120202409-202507

main90177-14007iMZEA18..RHD¥120202209-202307

main90177-14007iMZEA18;MZEA12,ZWE219..L¥120202409

48619BEARING, STRUT MOUNTING, RH

main48619-47030iMZEA18;MZEA12,ZWE219..L¥2,280202409

(J)

main48619-47030iMZEA18..RHD¥2,280202211-202307

(J)

main48619-47030iMZEA18..LHD;MZEA12,ZWE219¥2,280202211-202409

(J)

main48619-47030iMZEA12..D¥2,280202409-202507

(J)

main48619-F4010iMZEA12,ZRE212,ZWE211¥3,030201901-202004

main48619-F4010iMZEA12,ZRE212,ZWE21#¥3,030202004-202208

main48619-F4010iMZEA1#,ZWE219¥3,030202209-202211

main48619-F4010iMZEA1#,ZWE219¥3,030202211-202307

(L)

48619ABEARING, STRUT MOUNTING, LH

main48619-47030iMZEA12..D¥2,280202409-202507

(J)

main48619-47030iMZEA18;MZEA12,ZWE219..L¥2,280202409

(J)

main48619-47030iMZEA18..RHD¥2,280202211-202307

(J)

main48619-47030iMZEA18..LHD;MZEA12,ZWE219¥2,280202211-202409

(J)

main48619-F4010iMZEA1#,ZWE219¥3,030202209-202211

main48619-F4010iMZEA1#,ZWE219¥3,030202211-202307

(L)

main48619-F4010iMZEA12,ZRE212,ZWE211¥3,030201901-202004

main48619-F4010iMZEA12,ZRE212,ZWE21#¥3,030202004-202208

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iMZEA18..LHD;MZEA12,ZWE219¥600202209-202409

main48684-52010iMZEA12..D¥600202409-202507

main48684-52010iMZEA18;MZEA12,ZWE219..L¥600202409

main48684-52010iMZEA12,ZRE212,ZWE211¥600201901-202004

main48684-52010iMZEA12,ZRE212,ZWE21#¥600202004-202208

main48684-52010iMZEA18..RHD¥600202209-202307

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iMZEA12..D¥600202409-202507

main48684-52010iMZEA12,ZRE212,ZWE21#¥600202004-202208

main48684-52010iMZEA18..RHD¥600202209-202307

main48684-52010iMZEA18..LHD;MZEA12,ZWE219¥600202209-202409

main48684-52010iMZEA18;MZEA12,ZWE219..L¥600202409

main48684-52010iMZEA12,ZRE212,ZWE211¥600201901-202004

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42050iMZEA18..LHD;MZEA12,ZWE219¥3,320202209-202409

main48820-42050iMZEA18..RHD¥3,320202209-202307

main48820-42050iMZEA12..D¥3,320202409-202507

main48820-42050iMZEA18;MZEA12,ZWE219..L¥3,320202409

main48820-47040iMZEA12,ZRE212,ZWE21#¥3,320202004-202208

main48820-47040iMZEA12,ZRE212,ZWE211¥3,320201901-202004

48811BAR, STABILIZER, FRONT

main48811-12B00iMZEA12..D¥7,200202409-202507

main48811-12B00iMZEA18;MZEA12,ZWE219..L¥7,200202409

main48811-12B00iZRE212,ZWE211¥7,200201901-202004

main48811-12B00iMZEA18..RHD¥7,200202209-202307

main48811-12B00iZRE212,ZWE21#¥7,200202004-202208

main48811-12B00iMZEA18..LHD;MZEA12,ZWE219¥7,200202209-202409

main48811-12B10iMZEA12201909-202004

main48811-12B10iMZEA12202004-202208

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-12420iZRE212,ZWE211¥590201901-202004

main48815-12420iZRE212,ZWE21#¥590202004-202201

main48815-12430iMZEA12¥1,250201909-202004

sub48815-12431¥1,250

main48815-12430iMZEA12¥1,250202004-202109

sub48815-12431¥1,250

main48815-12431iMZEA12¥1,250202110-202201

main48815-12440iMZEA12¥1,130202202-202208

main48815-12460iMZEA18..LHD;MZEA12,ZWE219¥580202209-202409

main48815-12460iMZEA18;MZEA12,ZWE219..L¥580202409

main48815-12460iZRE212,ZWE21#¥580202202-202208

main48815-12460iMZEA18..RHD¥580202209-202307

main48815-12460iMZEA12..D¥580202409-202507

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-12420iZRE212,ZWE211¥590201901-202004

main48815-12420iZRE212,ZWE21#¥590202004-202201

main48815-12430iMZEA12¥1,250201909-202004

sub48815-12431¥1,250

main48815-12430iMZEA12¥1,250202004-202109

sub48815-12431¥1,250

main48815-12431iMZEA12¥1,250202110-202201

main48815-12440iMZEA12¥1,130202202-202208

main48815-12460iMZEA12..D¥580202409-202507

main48815-12460iZRE212,ZWE21#¥580202202-202208

main48815-12460iMZEA18..RHD¥580202209-202307

main48815-12460iMZEA18..LHD;MZEA12,ZWE219¥580202209-202409

main48815-12460iMZEA18;MZEA12,ZWE219..L¥580202409

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iMZEA18;MZEA12,ZWE219..L¥100202409

main94151-21241iMZEA12,ZRE212,ZWE211¥100201901-202004

main94151-21241iMZEA12..D¥100202409-202507

main94151-21241iMZEA12,ZRE212,ZWE21#¥100202004-202208

main94151-21241iMZEA18..RHD¥100202209-202307

main94151-21241iMZEA18..LHD;MZEA12,ZWE219¥100202209-202409

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42050iMZEA18..LHD;MZEA12,ZWE219¥3,320202209-202409

main48820-42050iMZEA12..D¥3,320202409-202507

main48820-42050iMZEA18;MZEA12,ZWE219..L¥3,320202409

main48820-42050iMZEA18..RHD¥3,320202209-202307

main48820-47040iMZEA12,ZRE212,ZWE211¥3,320201901-202004

main48820-47040iMZEA12,ZRE212,ZWE21#¥3,320202004-202208

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-47020iMZEA12..D¥1,120202409-202507

main48824-47020iMZEA18;MZEA12,ZWE219..L¥1,120202409

main48824-47020iMZEA12,ZRE212,ZWE211¥1,120201901-202004

main48824-47020iMZEA12,ZRE212,ZWE21#¥1,120202004-202208

main48824-47020iMZEA18..RHD¥1,120202209-202307

main48824-47020iMZEA18..LHD;MZEA12,ZWE219¥1,120202209-202409

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-47020iMZEA12..D¥1,120202409-202507

main48824-47020iMZEA18;MZEA12,ZWE219..L¥1,120202409

main48824-47020iMZEA18..LHD;MZEA12,ZWE219¥1,120202209-202409

main48824-47020iMZEA12,ZRE212,ZWE211¥1,120201901-202004

main48824-47020iMZEA12,ZRE212,ZWE21#¥1,120202004-202208

main48824-47020iMZEA18..RHD¥1,120202209-202307

9011910993

main90119-10993¥120

9038715033

main90387-15033¥200

32 parts on this diagram · 1 diagram in section
