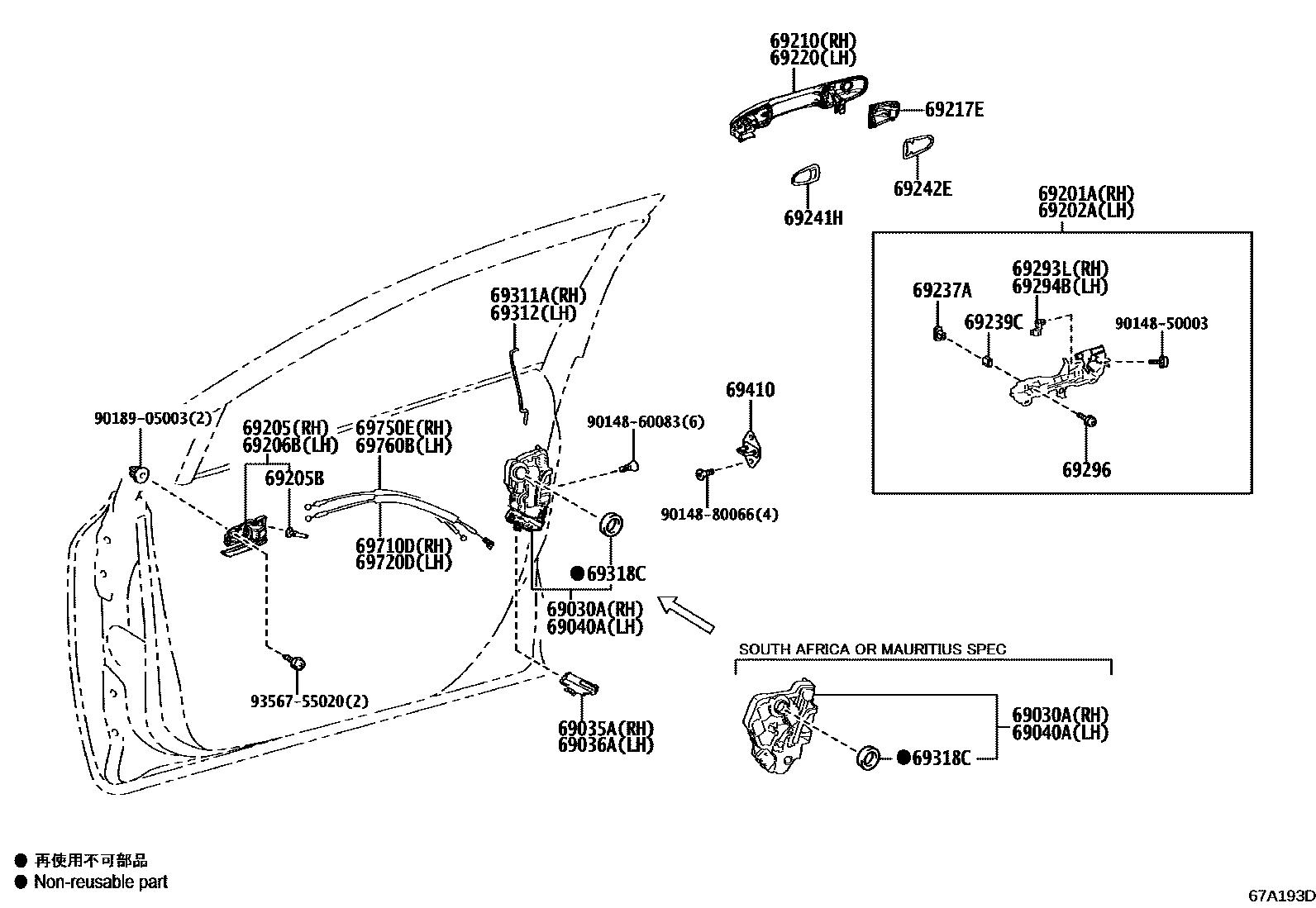

Toyota COROLLA SED (JPP) — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-12560iZWE219..MXC202209-202409

main69030-12570iMZEA18202209-202409

main69030-12580iMZEA12..D¥11,300202209-202508

main69030-30A70iMZEA12,ZRE212,ZWE211..RHD¥11,300201909-202208

main69030-53120iZWE21#..MXC201901-202208

main69030-53130iZRE212..LHD201901-202208

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iMZEA12..D¥220202209-202508

main69035-30010iMZEA12,ZRE212,ZWE211¥220201901-202208

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iMZEA18..LHD;MZEA12,ZWE219¥220202209-202508

main69036-30010iMZEA12,ZRE212,ZWE211¥220201901-202208

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12580iZWE219..MXC202209-202409

main69040-12590iMZEA18202209-202409

main69040-12600iMZEA12..D¥10,500202209-202508

main69040-30A80iMZEA12,ZRE212,ZWE211..RHD¥10,500201909-202208

main69040-53130iZWE21#..MXC¥11,300201901-202208

main69040-53140iZRE212..LHD201901-202208

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iMZEA12,ZRE212,ZWE21#¥4,210201901-202507

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iMZEA12..D¥4,210201901-202507

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12250-A0iZWE213201901-202208

FROMAGE,TRIM0#

main69205-12250-B0iZRE212;MZEA12..D201901-202107

LT.GRAY,TRIM1#

main69205-12250-B0iMZEA12,ZWE211..L..ARL201909-202004

LT.GRAY,TRIM10

main69205-12250-B1iMZEA12,ZWE211..L..ARL201909-202004

COOL GRAY,TRIM11,22

main69205-12250-C0iZWE219..MXC202409

DOOR INSIDE HANDLE-SATIN PAINT,BLACK,TRIM2#

main69205-12250-C0iMZEA12..D201901-202507

BLACK,TRIM2#

main69205-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20,21

main69205-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20

main69205-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 1 SPEC,BLACK,TRIM2#

main69205-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 2 SPEC,BLACK,TRIM2#

main69205-15010-A1iZWE219..MXC202209-202409

FROMAGE,TRIM0#

main69205-15010-A2iZWE213202106-202208

FROMAGE,TRIM0#

main69205-15010-B4iZWE219..MXC202209-202409

LT.GRAY,TRIM1#

main69205-15010-C1iZWE213202106-202409

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iMZEA12..D¥100201901-202507

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12250-A0iZWE213201901-202208

FROMAGE,TRIM0#

main69206-12250-B0iMZEA12,ZWE211..L..ARL201909-202004

LT.GRAY,TRIM10

main69206-12250-B0iZRE212;MZEA12..D201901-202107

LT.GRAY,TRIM1#

main69206-12250-B1iMZEA12,ZWE211..L..ARL201909-202004

COOL GRAY,TRIM11,22

main69206-12250-C0iMZEA18;MZEA12,ZWE219..L..ARL202409

DOOR INSIDE HANDLE-SATIN PAINT,BLACK,TRIM2#

main69206-12250-C0iMZEA12..D201901-202507

BLACK,TRIM2#

main69206-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20,21

main69206-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20

main69206-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 1 SPEC,BLACK,TRIM2#

main69206-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 2 SPEC,BLACK,TRIM2#

main69206-15010-A1iZWE219..MXC202209-202409

FROMAGE,TRIM0#

main69206-15010-A2iZWE213202106-202208

FROMAGE,TRIM0#

main69206-15010-B4iZWE219..MXC202209-202409

LT.GRAY,TRIM1#

main69206-15010-C1iZWE219..MXC202106-202409

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-47041-A0iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

SUPER WHITE 2,040

main69210-47041-A0iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,SUPER WHITE 2,040

main69210-47041-A1iMZEA12,ZRE212,ZWE211..RHD..L202004-202106

SOUTH AFRICA SPEC,WHITE PEARL CS.,070

main69210-47041-A1iMZEA12..6F201909-202106

WHITE PEARL CS.,070

main69210-47041-A2iMZEA12..6F202106-202208

SOUTH AFRICA SPEC,PLATINUM WHITE PEARL MC.,089

main69210-47041-A2iMZEA12..6F202106-202208

PLATINUM WHITE PEARL MC.,089

main69210-47041-B0iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,SILVER ME.,1F7

main69210-47041-B0iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

SILVER ME.,1F7

main69210-47041-B4iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,CELESTITE GRAY ME.,1K3

main69210-47041-B4iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

CELESTITE GRAY ME.,1K3

main69210-47041-C2iMZEA12..6F201909-202208

BLACK MC.,209

main69210-47041-C2iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,BLACK MC.,209

main69210-47041-D1iMZEA12..6F202106-202208

SOUTH AFRICA SPEC,RED MC.,3T3

main69210-47041-D1iMZEA12,ZRE212,ZWE211..RHD..L202106-202208

RED MC.,3T3

main69210-47041-D2iMZEA12,ZRE212,ZWE211..RHD..L201909-202106

RED M.M.,3R3

main69210-47041-D2iMZEA12..6F202004-202106

SOUTH AFRICA SPEC,RED M.M.,3R3

main69210-47041-D3iMZEA12,ZRE212,ZWE211..RHD..L202004-202106

SOUTH AFRICA SPEC,SCARLET ME.,3U4

main69210-47041-D3iMZEA12,ZRE212,ZWE211..RHD..L201909-202106

SCARLET ME.,3U4

main69210-47041-J0iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

DK.BLUE M.M.,8W7

main69210-47041-J0iMZEA12..6F202004-202208

SOUTH AFRICA SPEC,DK.BLUE M.M.,8W7

main69210-47041-J4iMZEA12..6F202004-202208

SOUTH AFRICA SPEC,DK. BLUE MC.,8X8

main69210-47041-J4iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

DK. BLUE MC.,8X8

main69210-47051-A0iZRE212,ZWE211..LHD..L201901-202208

SUPER WHITE 2,040

main69210-47051-A1iZRE212,ZWE211..LHD..L201901-202106

WHITE PEARL CS.,070

main69210-47051-A2iZRE212,ZWE21#..LHD..L202106-202208

PLATINUM WHITE PEARL MC.,089

main69210-47051-B0iZRE212,ZWE21#..LHD..L201901-202208

SILVER ME.,1F7

main69210-47051-B4iZRE212,ZWE21#..LHD..L201901-202208

CELESTITE GRAY ME.,1K3

main69210-47051-C2iZRE212,ZWE21#..LHD..L201901-202208

BLACK MC.,209

main69210-47051-D1iZRE212,ZWE21#..LHD..L202106-202208

RED MC.,3T3

main69210-47051-D2iZRE212,ZWE211..LHD..L201901-202106

RED M.M.,3R3

main69210-47051-D3iZRE212,ZWE211..LHD..L201901-202106

SCARLET ME.,3U4

main69210-47051-J0iZRE212..LHD..L201901-202208

DK.BLUE M.M.,8W7

main69210-47051-J4iZRE212,ZWE211..LHD..L201901-202208

DK. BLUE MC.,8X8

main69210-K0010-A0iMZEA12,ZWE219..L..ARL202209-202507

SUPER WHITE 2,040

main69210-K0010-A3iMZEA12,ZWE219..ARL202209-202507

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B0iMZEA12,ZWE219..L..ARL202209-202507

SILVER ME.,1F7

main69210-K0010-B2iMZEA12,ZWE219..L..ARL202209-202507

CELESTITE GRAY ME.,1K3

main69210-K0010-C3iMZEA12..D202209-202507

ATTITUDE BLACK MC.,218

main69210-K0010-D1iMZEA12..D202209-202507

RED MC.,3T3

main69210-K0010-J3iMZEA12..D202209-202507

DK. BLUE MC.,8X8

main69210-K0010-P1iMZEA18..RHD..L202209-202507

DK.GRAY,1L7

main69210-K0020-A0iMZEA18,ZWE219..LHD..L202209-202409

SUPER WHITE 2,040

main69210-K0020-A3iMZEA18,ZWE219..LHD..L202209-202409

PLATINUM WHITE PEARL MC.,089

main69210-K0020-B0iMZEA18,ZWE219..LHD..L202209-202409

SILVER ME.,1F7

main69210-K0020-B2iMZEA18,ZWE219..LHD..L202209-202409

CELESTITE GRAY ME.,1K3

main69210-K0020-C3iMZEA18,ZWE219..LHD..L202209-202409

ATTITUDE BLACK MC.,218

main69210-K0020-D1iMZEA18,ZWE219..LHD..L202209-202409

RED MC.,3T3

main69210-K0020-J3iMZEA18,ZWE219..LHD..L202209-202409

DK. BLUE MC.,8X8

main69210-K0020-P1iMZEA18,ZWE219..LHD..L202209-202409

DK.GRAY,1L7

main69211-33120-A0iMZEA18..RHD..D201909-202307

SUPER WHITE 2,040

main69211-33120-A1iMZEA12,ZRE212..RHD..D202106-202307

PLATINUM WHITE PEARL MC.,089

main69211-33120-A3iMZEA12,ZRE212..RHD..D201909-202106

WHITE PEARL CS.,070

main69211-33120-B0iMZEA12,ZRE212..RHD..D201909-202307

SILVER ME.,1F7

main69211-33120-B3iMZEA12,ZRE212..RHD..D201909-202307

CELESTITE GRAY ME.,1K3

main69211-33120-C0iMZEA18..RHD..D202209-202307

ATTITUDE BLACK MC.,218

main69211-33120-C2iMZEA12,ZRE212..RHD..D201909-202208

BLACK MC.,209

main69211-33120-D1iMZEA12,ZRE212..RHD..D201909-202106

RED M.M.,3R3

main69211-33120-D2iMZEA12,ZRE212..RHD..D201909-202106

SCARLET ME.,3U4

main69211-33120-D3iMZEA18..RHD..D202106-202307

RED MC.,3T3

main69211-33120-J1iMZEA12,ZRE212..RHD..D201909-202208

DK.BLUE M.M.,8W7

main69211-33120-J3iMZEA18..RHD..D201909-202307

DK. BLUE MC.,8X8

main69211-33120-P0iMZEA18..RHD..D202209-202307

DK.GRAY,1L7

main69211-47021-A0iZRE212..LHD..D201901-202409

SUPER WHITE 2,040

main69211-47021-A1iZRE212..LHD..D201901-202106

WHITE PEARL CS.,070

main69211-47021-A2iZRE212..LHD..D202106-202409

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iMZEA18..D201901-202409

SILVER ME.,1F7

main69211-47021-B5iMZEA18..LHD..D201901-202409

CELESTITE GRAY ME.,1K3

main69211-47021-C0iMZEA18..LHD..D202209-202409

ATTITUDE BLACK MC.,218

main69211-47021-C2iZRE212..LHD..D201901-202208

BLACK MC.,209

main69211-47021-D1iZRE212..LHD..D202106-202409

RED MC.,3T3

main69211-47021-D2iZRE212..LHD..D201901-202106

RED M.M.,3R3

main69211-47021-D3iZRE212..LHD..D201901-202106

SCARLET ME.,3U4

main69211-47021-J0iZRE212..LHD..D201901-202208

DK.BLUE M.M.,8W7

main69211-47021-J5iMZEA18..D201901-202409

DK. BLUE MC.,8X8

main69211-47021-P4iMZEA18..LHD..D202209-202409

DK.GRAY,1L7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-47020iMZEA12..D¥450201901-202507

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-47041-A0iZRE212,ZWE211..LHD..L201901-202208

SUPER WHITE 2,040

main69210-47041-A1iZRE212,ZWE21#..LHD..L201901-202106

WHITE PEARL CS.,070

main69210-47041-A2iZRE212,ZWE21#..LHD..L202106-202208

PLATINUM WHITE PEARL MC.,089

main69210-47041-B0iZRE212,ZWE211..LHD..L201901-202208

SILVER ME.,1F7

main69210-47041-B4iZRE212,ZWE211..LHD..L201901-202208

CELESTITE GRAY ME.,1K3

main69210-47041-C2iZRE212,ZWE211..LHD..L201901-202208

BLACK MC.,209

main69210-47041-D1iZRE212,ZWE21#..LHD..L202106-202208

RED MC.,3T3

main69210-47041-D2iZRE212,ZWE211..LHD..L201901-202106

RED M.M.,3R3

main69210-47041-D3iZRE212..LHD..L201901-202106

SCARLET ME.,3U4

main69210-47041-J0iZRE212..LHD..L201901-202208

DK.BLUE M.M.,8W7

main69210-47041-J4iZRE212,ZWE211..LHD..L201901-202208

DK. BLUE MC.,8X8

main69210-47051-A0iMZEA12..6F202004-202208

SOUTH AFRICA SPEC,SUPER WHITE 2,040

main69210-47051-A0iMZEA12..6F201909-202208

SUPER WHITE 2,040

main69210-47051-A1iMZEA12,ZRE212,ZWE211..RHD..L201909-202106

WHITE PEARL CS.,070

main69210-47051-A1iMZEA12,ZRE212,ZWE211..RHD..L202004-202106

SOUTH AFRICA SPEC,WHITE PEARL CS.,070

main69210-47051-A2iMZEA12,ZRE212,ZWE211..RHD..L202106-202208

SOUTH AFRICA SPEC,PLATINUM WHITE PEARL MC.,089

main69210-47051-A2iMZEA12..6F202106-202208

PLATINUM WHITE PEARL MC.,089

main69210-47051-B0iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,SILVER ME.,1F7

main69210-47051-B0iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

SILVER ME.,1F7

main69210-47051-B4iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,CELESTITE GRAY ME.,1K3

main69210-47051-B4iMZEA12..6F201909-202208

CELESTITE GRAY ME.,1K3

main69210-47051-C2iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

BLACK MC.,209

main69210-47051-C2iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,BLACK MC.,209

main69210-47051-D1iMZEA12,ZRE212,ZWE211..RHD..L202106-202208

RED MC.,3T3

main69210-47051-D1iMZEA12..6F202106-202208

SOUTH AFRICA SPEC,RED MC.,3T3

main69210-47051-D2iMZEA12,ZRE212,ZWE211..RHD..L201909-202106

RED M.M.,3R3

main69210-47051-D2iMZEA12..6F202004-202106

SOUTH AFRICA SPEC,RED M.M.,3R3

main69210-47051-D3iMZEA12..6F202004-202106

SOUTH AFRICA SPEC,SCARLET ME.,3U4

main69210-47051-D3iMZEA12..6F201909-202106

SCARLET ME.,3U4

main69210-47051-J0iMZEA12..6F201909-202208

DK.BLUE M.M.,8W7

main69210-47051-J0iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,DK.BLUE M.M.,8W7

main69210-47051-J4iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

DK. BLUE MC.,8X8

main69210-47051-J4iMZEA12,ZRE212,ZWE211..RHD..L202004-202208

SOUTH AFRICA SPEC,DK. BLUE MC.,8X8

main69210-K0010-A0iMZEA18,ZWE219..LHD..L202209-202409

SUPER WHITE 2,040

main69210-K0010-A3iMZEA18,ZWE219..LHD..L202209-202409

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B0iMZEA18,ZWE219..LHD..L202209-202409

SILVER ME.,1F7

main69210-K0010-B2iMZEA18,ZWE219..LHD..L202209-202409

CELESTITE GRAY ME.,1K3

main69210-K0010-C3iMZEA18,ZWE219..LHD..L202209-202409

ATTITUDE BLACK MC.,218

main69210-K0010-D1iMZEA18,ZWE219..LHD..L202209-202409

RED MC.,3T3

main69210-K0010-J3iMZEA18,ZWE219..LHD..L202209-202409

DK. BLUE MC.,8X8

main69210-K0010-P1iMZEA18,ZWE219..LHD..L202209-202409

DK.GRAY,1L7

main69210-K0020-A0iMZEA12,ZWE219..L..ARL202209-202507

SUPER WHITE 2,040

main69210-K0020-A3iMZEA18..RHD..L202209-202507

PLATINUM WHITE PEARL MC.,089

main69210-K0020-B0iMZEA18..RHD..L202209-202507

SILVER ME.,1F7

main69210-K0020-B2iMZEA12,ZWE219..ARL202209-202507

CELESTITE GRAY ME.,1K3

main69210-K0020-C3iMZEA12,ZWE219..ARL202209-202507

ATTITUDE BLACK MC.,218

main69210-K0020-D1iMZEA12,ZWE219..ARL202209-202507

RED MC.,3T3

main69210-K0020-J3iMZEA12..D202209-202507

DK. BLUE MC.,8X8

main69210-K0020-P1iMZEA18..RHD..L202209-202507

DK.GRAY,1L7

main69211-33120-A0iMZEA18..D201901-202409

SUPER WHITE 2,040

main69211-33120-A1iMZEA18..D202106-202409

PLATINUM WHITE PEARL MC.,089

main69211-33120-A3iZRE212..LHD..D201901-202106

WHITE PEARL CS.,070

main69211-33120-B0iMZEA18..D201901-202409

SILVER ME.,1F7

main69211-33120-B3iZRE212..LHD..D201901-202409

CELESTITE GRAY ME.,1K3

main69211-33120-C0iMZEA18..LHD..D202209-202409

ATTITUDE BLACK MC.,218

main69211-33120-C2iZRE212..LHD..D201901-202208

BLACK MC.,209

main69211-33120-D1iZRE212..LHD..D201901-202106

RED M.M.,3R3

main69211-33120-D2iZRE212..LHD..D201901-202106

SCARLET ME.,3U4

main69211-33120-D3iZRE212..LHD..D202106-202409

RED MC.,3T3

main69211-33120-J1iZRE212..LHD..D201901-202208

DK.BLUE M.M.,8W7

main69211-33120-J3iZRE212..LHD..D201901-202409

DK. BLUE MC.,8X8

main69211-33120-P0iMZEA18..D202209-202409

DK.GRAY,1L7

main69211-47021-A0iMZEA12,ZRE212..RHD..D201909-202307

SUPER WHITE 2,040

main69211-47021-A1iMZEA12,ZRE212..RHD..D201909-202106

WHITE PEARL CS.,070

main69211-47021-A2iMZEA18..RHD..D202106-202307

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iMZEA12,ZRE212..RHD..D201909-202307

SILVER ME.,1F7

main69211-47021-B5iMZEA12,ZRE212..RHD..D201909-202307

CELESTITE GRAY ME.,1K3

main69211-47021-C0iMZEA18..RHD..D202209-202307

ATTITUDE BLACK MC.,218

main69211-47021-C2iMZEA12,ZRE212..RHD..D201909-202208

BLACK MC.,209

main69211-47021-D1iMZEA12,ZRE212..RHD..D202106-202307

RED MC.,3T3

main69211-47021-D2iMZEA12,ZRE212..RHD..D201909-202106

RED M.M.,3R3

main69211-47021-D3iMZEA12,ZRE212..RHD..D201909-202106

SCARLET ME.,3U4

main69211-47021-J0iMZEA12,ZRE212..RHD..D201909-202208

DK.BLUE M.M.,8W7

main69211-47021-J5iMZEA18..RHD..D201909-202307

DK. BLUE MC.,8X8

main69211-47021-P4iMZEA18..RHD..D202209-202307

DK.GRAY,1L7

69237ANUT, FRONT DOOR HANDLE

main69237-62010iMZEA12,ZRE212,ZWE211¥160201901-202507

sub69237-0E010¥220

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iMZEA12..D¥90201901-202507

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iMZEA12..D¥400201901-202507

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iMZEA12..D¥400201901-202507

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMZEA12..D¥160201901-202507

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iMZEA18..LHD;MZEA12,ZWE219¥160201901-202507

69296SCREW, DOOR INSIDE HANDLE

main69296-30010iMZEA12,ZRE212,ZWE21#¥90201901-202208

main90148-50006iMZEA18..RHD¥60202209-202507

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-12220iMZEA18..RHD¥410201901-202508

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-12220iMZEA12..D¥410201901-202508

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMZEA12..D¥120201901-202507

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iMZEA18..RHD¥1,050201901-202507

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-12190iMZEA12,ZRE212,ZWE211¥940201901-202208

main69710-12191iMZEA18,ZWE219¥940202209-202508

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-12190iMZEA12,ZRE212,ZWE211¥940201901-202208

main69710-12191iMZEA18,ZWE219¥940202209-202508

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-12220iMZEA12,ZRE212,ZWE21#¥940201901-202208

main69750-12221iMZEA12..D¥940202209-202508

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-12220iMZEA12,ZRE212,ZWE211¥940201901-202208

main69750-12221iMZEA18,ZWE219¥940202209-202508

9014850003

main90148-50003¥60

9014860083

main90148-60083¥60

9014880066

main90148-80066¥60

9018905003

main90189-05003¥130

9356755020

main93567-55020¥70

32 parts on this diagram · 1 diagram in section
