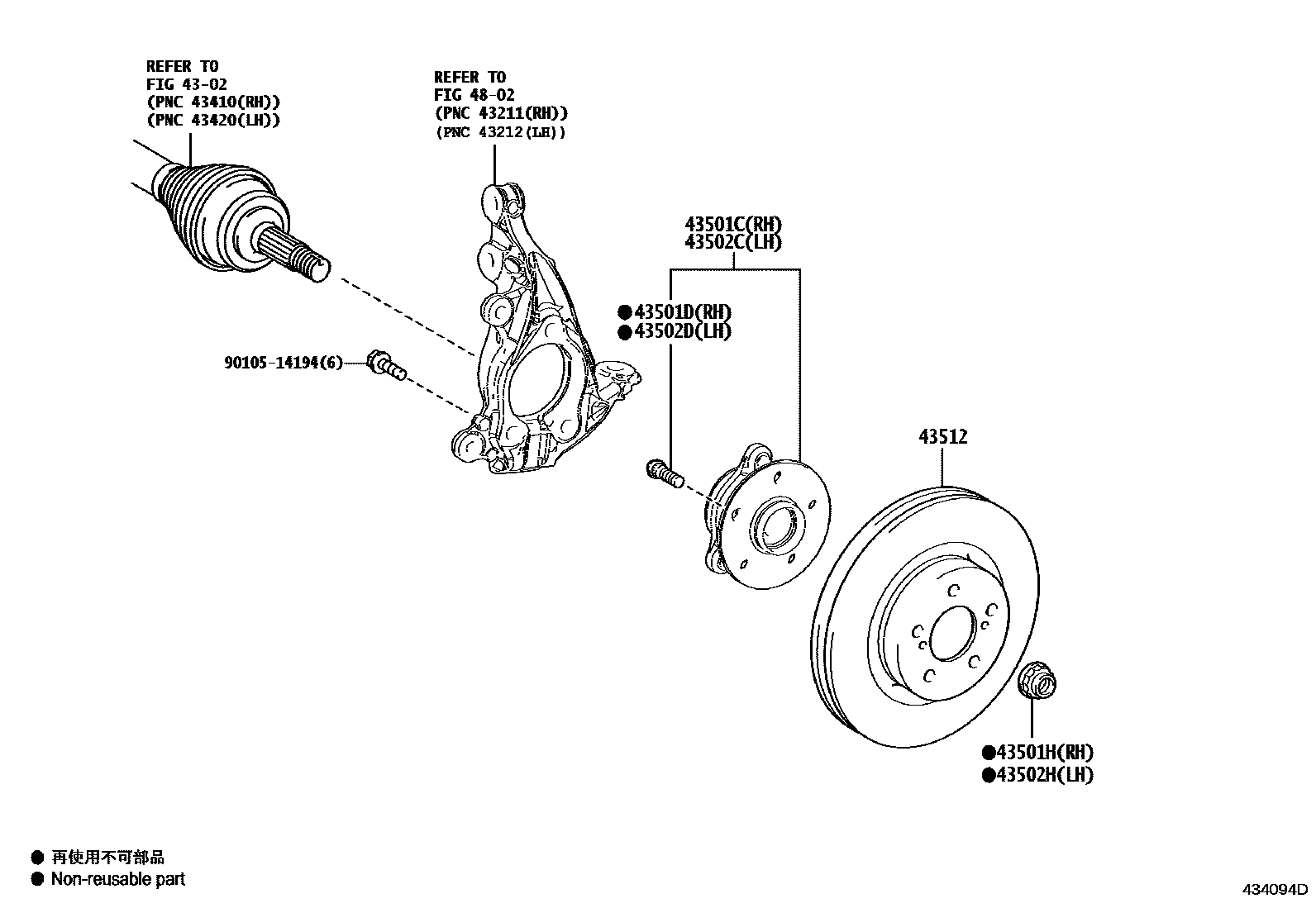

Toyota COROLLA SED (JPP) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47020iMZEA18;MZEA12,ZWE219..L¥13,600201901-202507

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMZEA12..D¥240201901-202507

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMZEA12..D¥220201901-202507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47020iMZEA18..RHD¥13,600201901-202507

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMZEA18;MZEA12,ZWE219..L¥240201901-202507

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMZEA18..RHD¥220201901-202507

43512DISC, FRONT

main43512-12720iMZEA18..LHD;MZEA12,ZWE219¥8,500201901-202507

main43512-47060iZWE211¥8,900201901-202208

4802

9010514194

main90105-14194¥240

10 parts on this diagram · 1 diagram in section
