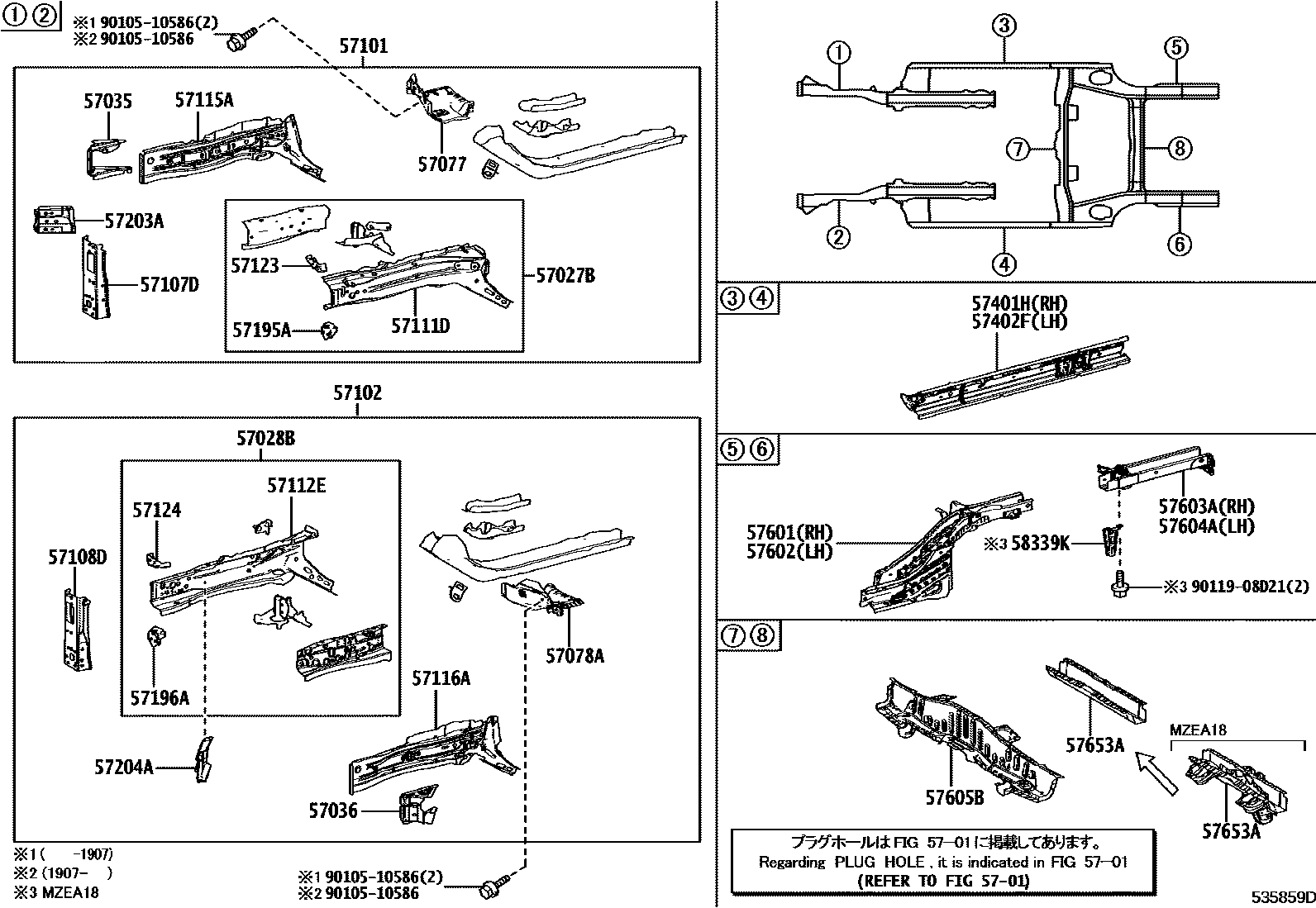

Toyota COROLLA SED (JPP) — FLOOR SIDE MEMBER

0001 1 0002 1

5701

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47021iMZEA12,ZRE212,ZWE21#¥15,800201901-202507

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iMZEA12..D¥14,500201901-202507

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47021iMZEA12..D¥2,470201901-202507

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47031iMZEA12..D¥2,640201901-202507

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47040iZRE212,ZWE211¥5,500201901-201907

sub57077-47041¥4,110

main57077-47041iMZEA12,ZRE212,ZWE211¥4,110201908-202507

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47040iZRE212,ZWE211¥5,500201901-201907

sub57078-47041¥4,110

main57078-47041iMZEA12,ZRE212,ZWE21#¥4,110201908-202507

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-47070iZRE212,ZWE211¥63,000201901-201907

sub57101-47071¥46,400

main57101-47071iMZEA18;MZEA12,ZWE219..L¥46,400201908-202507

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-47090iZRE212,ZWE211¥61,300201901-201907

sub57102-47091¥46,400

main57102-47091iMZEA18..RHD¥46,400201908-202507

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-47030iMZEA12..D¥4,150201901-202507

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-47030iMZEA12..D¥4,150201901-202507

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iMZEA12..D¥9,200201901-202507

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iMZEA12..D¥9,200201901-202507

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iMZEA12..D¥6,600201901-202507

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iMZEA12..D¥6,600201901-202507

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iMZEA12..D¥1,220201901-202507

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iMZEA12..D¥1,220201901-202507

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iMZEA18..RHD¥1,030201901-202507

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iMZEA18;MZEA12,ZWE219..L¥1,030201901-202507

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47011iMZEA12..D¥2,470201901-202507

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iMZEA12..D¥2,470201901-202507

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-12903iMZEA12,ZRE212,ZWE21#201901-202507

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-12903iMZEA18;MZEA12,ZWE219..L201901-202507

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12B70iZWE219..MXC¥27,600201901-202409

main57601-12C30iMZEA12,ZRE212,ZWE211..ARL,GEN¥26,100202201-202507

main57601-12C40iMZEA18..LHD¥28,800202209-202409

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12C50iZWE219..MXC¥27,600201901-202409

main57602-12D10iMZEA12..D¥26,100202201-202507

main57602-12D20iMZEA18..RHD¥28,800202209-202409

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-12110iMZEA12,ZRE212,ZWE21#201901-202507

main57603-12130iMZEA18..RHD202209-202409

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-12110iMZEA12,ZWE219¥9,600201901-202507

main57604-12120iMZEA18¥8,200202209-202409

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-10071iMZEA12,ZRE212¥11,400201901-202507

main57605-16070iMZEA18¥13,100202209-202409

main57605-47080iZWE219¥8,100201901-202409

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57606-12350iMZEA18202209-202409

main57653-47040iMZEA12,ZWE219..L¥6,500202106-202507

PLANT NO. A31-A32

main57653-47040iMZEA12,ZRE212,ZWE211¥6,500201901-202106

main57653-47050iMZEA12..D¥6,500202106-202507

PLANT NO. A41-A42

58339KBRACKET JACK UP

main58339-12070iMZEA18..RHD¥2,390202209-202409

9010510586

main90105-10586¥100

9011908D21

main90119-08D21¥80

32 parts on this diagram · 2 diagrams in section
