Toyota COROLLA SED (JPP) — ANTENNA
86077COVER KIT, ANTENNA
SOUTH AFRICA SPEC,SUPER WHITE 2,040
MAURITIUS SPEC,SUPER WHITE 2,040
SUPER WHITE 2,040
SOUTH AFRICA SPEC,PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
MAURITIUS SPEC,PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SOUTH AFRICA SPEC,SILVER ME.,1F7
MAURITIUS SPEC,SILVER ME.,1F7
SOUTH AFRICA SPEC,CELESTITE GRAY ME.,1K3
CELESTITE GRAY ME.,1K3
MAURITIUS SPEC,CELESTITE GRAY ME.,1K3
SOUTH AFRICA SPEC,DK.GRAY,1L7
MAURITIUS SPEC,DK.GRAY,1L7
DK.GRAY,1L7
SOUTH AFRICA SPEC,ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
MAURITIUS SPEC,ATTITUDE BLACK MC.,218
SOUTH AFRICA SPEC,RED MC.,3T3
RED MC.,3T3
MAURITIUS SPEC,RED MC.,3T3
SOUTH AFRICA SPEC,DK. BLUE MC.,8X8
DK. BLUE MC.,8X8
MAURITIUS SPEC,DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
AUDIO-8INCH 6SPEAKER & DAB
AUDIO-8INCH 6SPEAKER
HIGH GRADE PACKAGE
AUDIO-8INCH 6SPEAKER
SOUTH AFRICA SPEC&AUDIO-8INCH 6SPEAKER
AUDIO-8INCH 6SPEAKER
AUDIO-8INCH 6SPEAKER & DAB
HIGH GRADE PACKAGE
86101DCORD SUB-ASSY, ANTENNA, NO.3
AUDIO-8INCH 6SPEAKER & DAB
AUDIO-8INCH 6SPEAKER
SOUTH AFRICA SPEC&AUDIO-8INCH 6SPEAKER
SOUTH AFRICA SPEC&AUDIO-8INCH 6SPEAKER
AUDIO-8INCH 6SPEAKER
SOUTH AFRICA SPEC
MAURITIUS SPEC
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO-8INCH 6SPEAKER
SOUTH AFRICA SPEC&AUDIO-8INCH 6SPEAKER
AUDIO-8INCH 6SPEAKER & DAB
SOUTH AFRICA SPEC
MAURITIUS SPEC
86101SCORD SUB-ASSY, ANTENNA
86300BANTENNA ASSY, AMPLIFIER, NO.1
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-8INCH 6SPEAKER & DAB
86760AANTENNA ASSY, TELEPHONE
SOUTH AFRICA SPEC
MAURITIUS SPEC
86769HOUSING, ROOF ANTENNA
SOUTH AFRICA SPEC
MAURITIUS SPEC
9011906A06

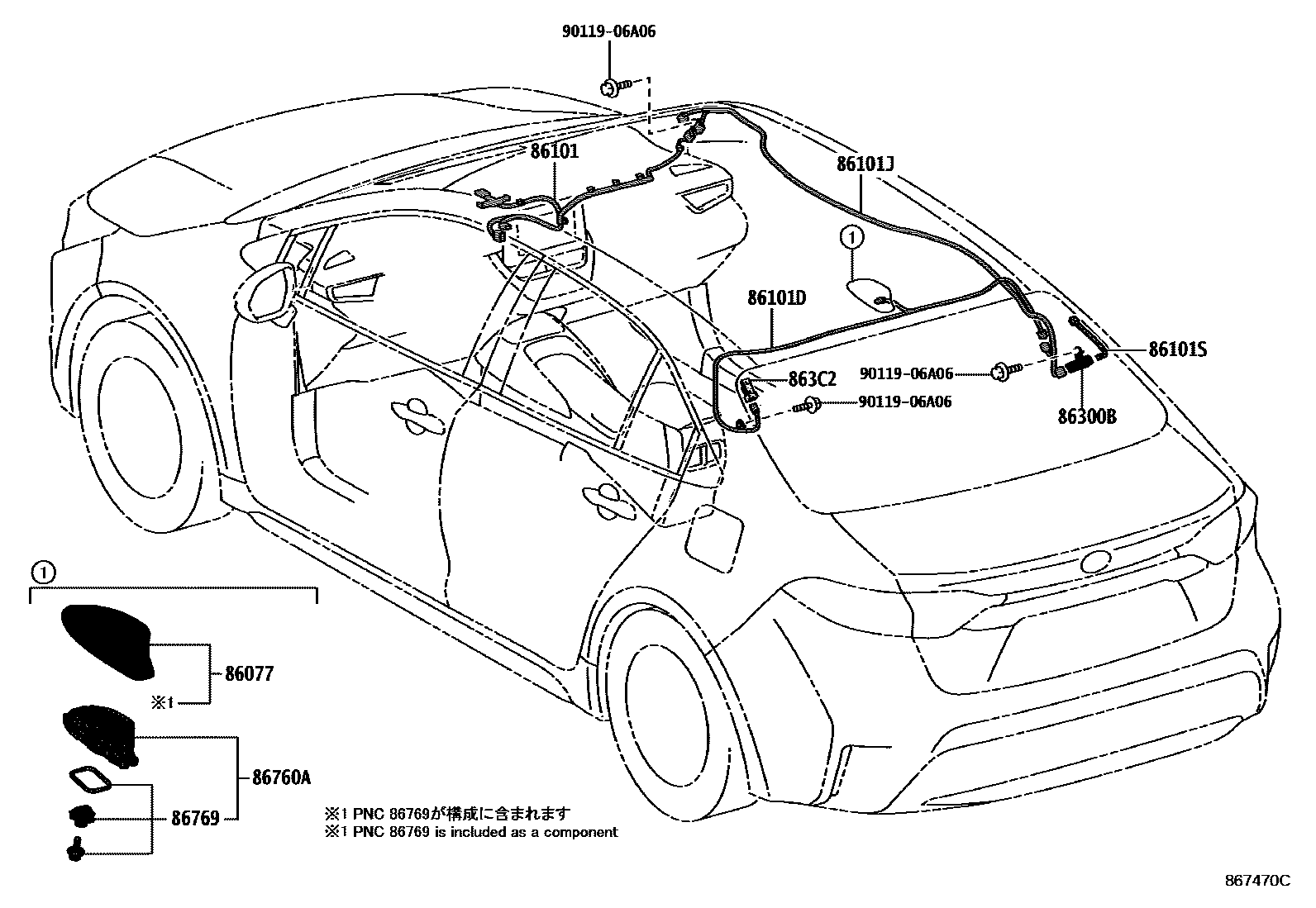

10 parts on this diagram · 1 diagram in section
