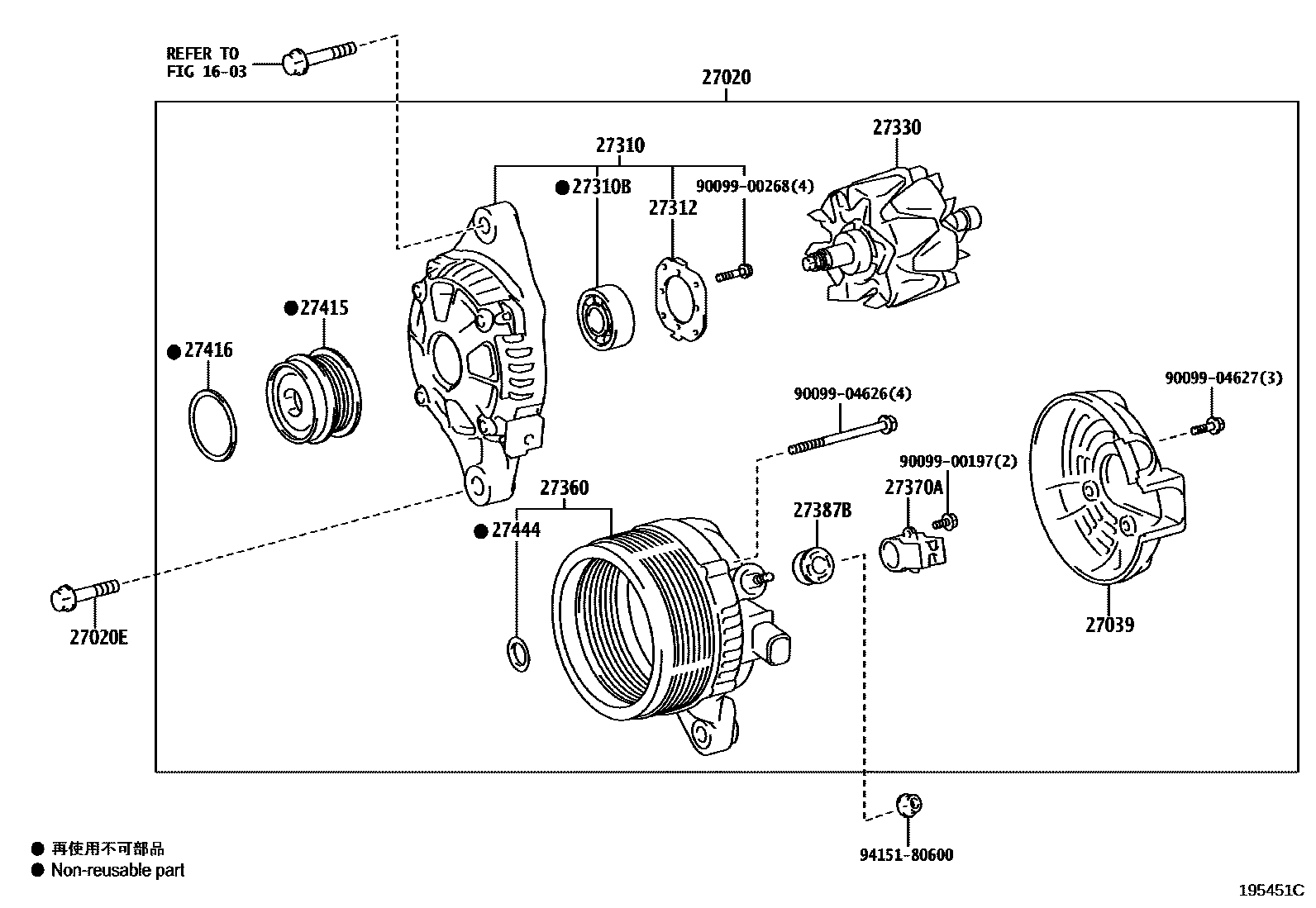

Toyota COROLLA SED (JPP) — ALTERNATOR

0001 112V 100A 0002 112V 100A 0003 112V 100A

1603

27020ALTERNATOR ASSY

main27060-24030iM20AFKS..MZEA12..CVT¥93,000201909-202302

12V 100A

main27060-24080iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥84,500202302-202507

12V 100A

main27060-25010iM20AFKS..MZEA12..6F¥84,500201909-202208

12V 100A

main27060-37240i2ZRFAE..ZRE212¥93,000201901-202208

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZRFAE..ZRE212¥1,200201901-202208

27039COVER, ALTERNATOR REAR END

main27039-37220iM20AFKS..MZEA12..D¥0201901-202507

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150iM20AFKS..MZEA12..D201909-202507

main27310-37130i2ZRFAE..ZRE212201901-202208

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iM20AFKS..MZEA18;M20AFKS..MZEA12..L¥0201901-202507

27312PLATE, RETAINER

main27312-72100iM20AFKS..MZEA12..D¥0201901-202507

27330ROTOR ASSY, ALTERNATOR

main27330-47330iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD¥0201901-202507

27360COIL ASSY, ALTERNATOR

main27360-24150iM20AFKS..MZEA12;M20AFKS..MZEA18..LHD201909-202507

main27360-37270i2ZRFAE..ZRE212201901-202208

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iM20AFKS..MZEA12¥0201909-202507

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2ZRFAE..ZRE212¥0201901-202208

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130iM20AFKS..MZEA12..D¥0201901-202507

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i2ZRFAE..ZRE212¥6,200201901-202208

main27415-24010iM20AFKS..MZEA12..CVT¥5,500201909-202305

main27415-F0010iM20AFKS..MZEA12..6F201909-202208

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ZRFAE..ZRE212;M20AFKS..MZEA12..6F¥340201901-202208

main27416-47010iM20AFKS..MZEA12..CVT¥340201909-202305

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190iM20AFKS..MZEA12..D¥0201901-202507

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009904626

main90099-04626¥0

9009904627

main90099-04627¥0

9415180600

main94151-80600¥60

20 parts on this diagram · 3 diagrams in section
