Toyota COROLLA (S.AMERICA) — WIRING & CLAMP

0001 1ENGINE ROOM MAIN 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/3 0010 1CONNECTOR 2/3 0011 1CONNECTOR 3/3

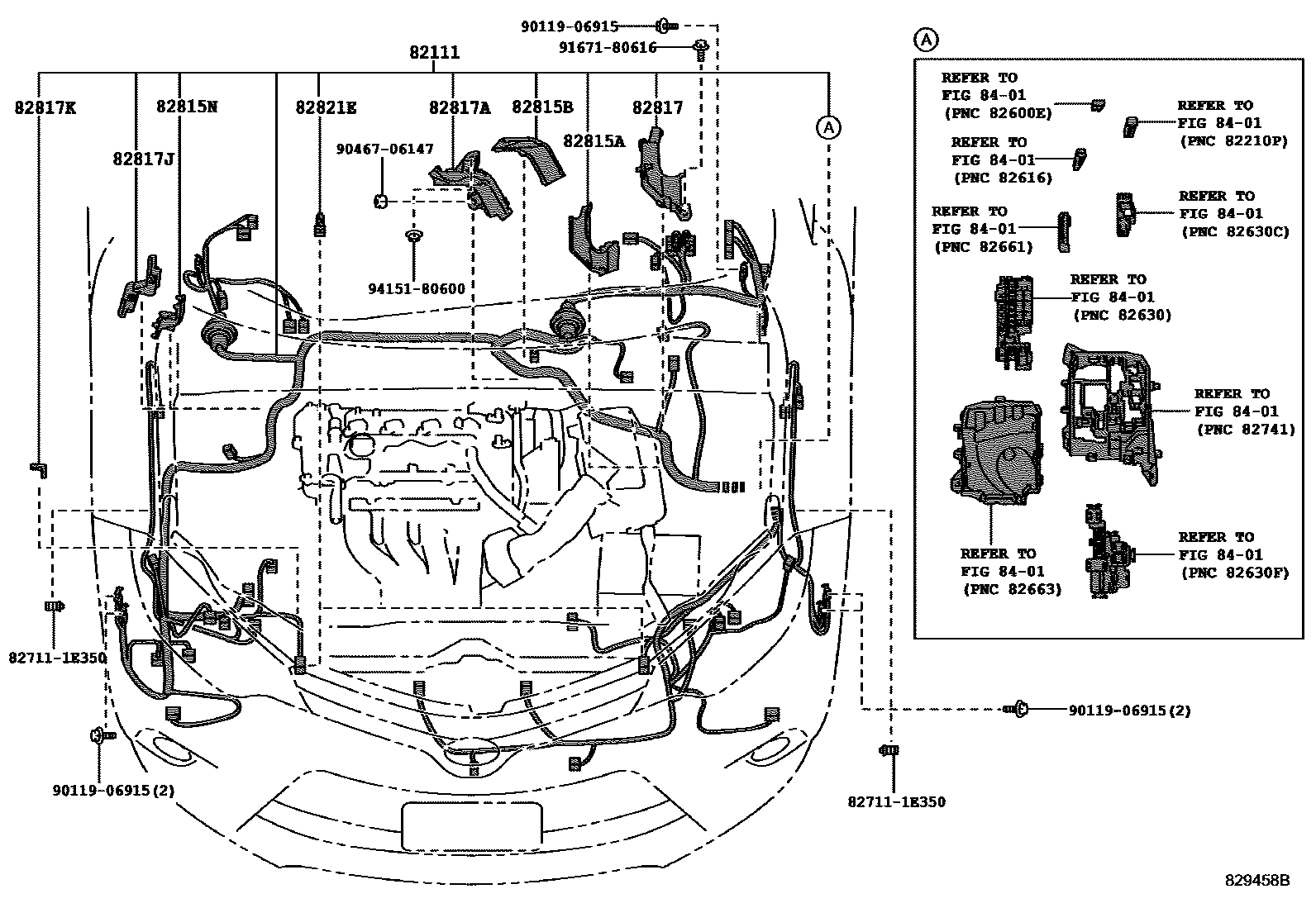

82111WIRE, ENGINE ROOM MAIN

main82111-F2350iZRE173..N..BZ201703-201903

main82111-F2351iZRE173..N..BZ201903-201908

main82111-F2360iZRE173..E201703-201903

SPORT PACKAGE

main82111-F2361iZRE173..E201903-201908

SPORT PACKAGE

main82111-F2400iZRE172..CVT..LA201703-201903

main82111-F2401iZRE172..CVT..LA201903-201908

main82111-F2420iZRE172..6F..LA201703-201903

main82111-F2421iZRE172..6F..LA201903-201908

main82111-F2540iZRE172..CVT..BZ201703-201903

main82111-F2541iZRE172..CVT..BZ201903-201908

main82111-F2550iZRE172..6F..BZ201703-201903

main82111-F2551iZRE172..6F..BZ201903-201908

main82111-F2560iZRE173..4FC..D201708

main82111-F2570iZRE173..4FC..N201708

main82111-F2580iZRE173..6F..D201708-202002

main82111-F2590iZRE173..6F..N201708-202002

main82115-0ZR70iZRE173..N..BZ201403-201703

main82115-0ZR80iZRE173..E201403-201703

main82115-0ZR90iZRE172..CVT..BZ201403-201703

main82115-0ZS00iZRE172..6F..BZ201403-201703

main82115-0ZS30iZRE172..CVT..LA201403-201703

main82115-0ZS60iZRE172..6F..LA201403-201703

main82115-0ZS70iZRE173..4FC..D201501-201505

main82115-0ZS71iZRE173..4FC..D201505-201708

main82115-0ZS80iZRE173..4FC..N201501-201505

main82115-0ZS81iZRE173..4FC..N201505-201708

main82115-0ZS90iZRE173..6F..D201501-201505

main82115-0ZS91iZRE173..6F..D201505-201708

main82115-0ZT00iZRE173..6F..N201501-201505

main82115-0ZT01iZRE173..6F..N201505-201708

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12250iZRE17#..BZ,LA¥660201403-201703

main82815-12250iZRE173..VEN¥660201403-201708

main82815-12250iZRE173..6F¥660201703-202002

main82815-12250iZRE172;ZRE173..ATM,CVT¥660201703

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12270iZRE17#..BZ,LA201403-201703

main82815-12270iZRE173..VEN201403-201708

main82815-12270iZRE173..6F201703-202002

main82815-12270iZRE172;ZRE173..ATM,CVT201703

82815NCOVER, WIRING HARNESS PROTECTOR, NO.11

main82815-02040iZRE17#..BZ,LA201403-201703

main82815-02040iZRE173..VEN201403-201708

main82815-02040iZRE173..6F201703-202002

main82815-02040iZRE172;ZRE173..ATM,CVT201703

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12D50iZRE17#..BZ,LA¥880201403-201703

main82817-12D50iZRE173..VEN¥880201403-201708

main82817-12D50iZRE173..6F¥880201703-202002

main82817-12D50iZRE172;ZRE173..ATM,CVT¥880201703

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12D70iZRE17#..BZ,LA201403-201703

main82817-12D70iZRE173..VEN201403-201708

main82817-12D70iZRE173..6F201703-202002

main82817-12D70iZRE172;ZRE173..ATM,CVT201703

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-02100iZRE17#..BZ,LA201403-201703

main82817-02100iZRE173..VEN201403-201708

main82817-02100iZRE173..6F201703-202002

main82817-02100iZRE172;ZRE173..ATM,CVT201703

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-12860iZRE17#..BZ,LA¥80201403-201703

main82817-12860iZRE173..VEN¥80201403-201708

main82817-12860iZRE173..6F¥80201703-202002

main82817-12860iZRE172;ZRE173..ATM,CVT¥80201703

82821ECOVER, CONNECTOR

main82821-42040iZRE17#..BZ,LA¥170201403-201703

main82821-42040iZRE173..VEN¥170201403-201708

main82821-42040iZRE173..6F¥170201703-202002

main82821-42040iZRE172;ZRE173..ATM,CVT¥170201703

8401

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350¥180

9011906915

main90119-06915¥60

9046706147

main90467-06147¥80

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

15 parts on this diagram · 11 diagrams in section
