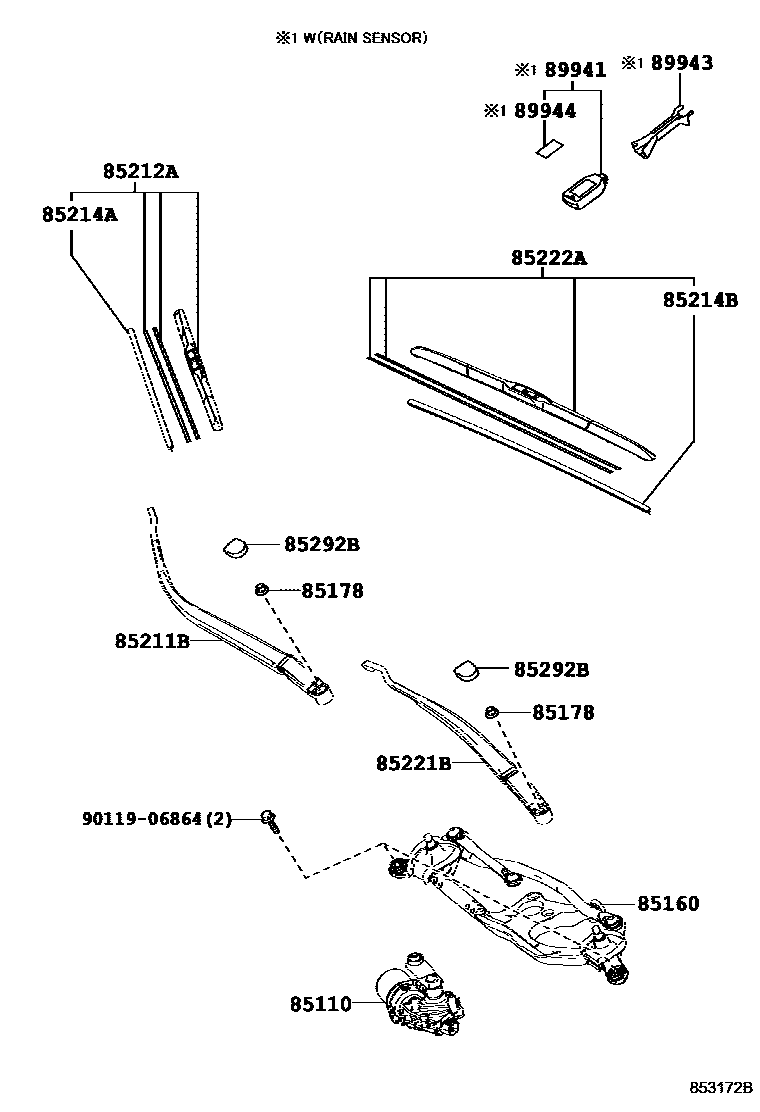

Toyota COROLLA (S.AMERICA) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02430iZRE17#201403-201511

sub85110-02431

main85110-02431iZRE17#..BZ,LA201512-201703

main85110-02431iZRE173..VEN201512-201708

main85110-02431iZRE173..6F201703-202002

main85110-02431iZRE172;ZRE173..ATM,CVT201703

85160LINK ASSY, WINDSHIELD WIPER

main85150-02390iZRE17#..BZ,LA201403-201703

main85150-02390iZRE173..VEN201403-201708

main85150-02390iZRE173..6F201703-202002

main85150-02390iZRE172;ZRE173..ATM,CVT201703

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iZRE17#..BZ,LA¥80201403-201703

main90182-10006iZRE173..VEN¥80201403-201708

main90182-10006iZRE173..6F¥80201703-202002

main90182-10006iZRE172;ZRE173..ATM,CVT¥80201703

85211BARM, FRONT WIPER, RH

main85211-02380iZRE17#..BZ,LA201403-201703

main85211-02380iZRE173..VEN201403-201708

main85211-02380iZRE173..6F201703-202002

main85211-02380iZRE172;ZRE173..ATM,CVT201703

85212ABLADE, FR WIPER, RH

main85212-02280iZRE17#..BZ,LA201403-201703

main85212-02280iZRE173..VEN201403-201708

main85212-02280iZRE173..6F201703-202002

main85212-02280iZRE172;ZRE173..ATM,CVT201703

85214ARUBBER, WIPER, RH

main85214-02280iZRE17#..BZ,LA201403-201703

main85214-02280iZRE173..VEN201403-201708

main85214-02280iZRE173..6F201703-202002

main85214-02280iZRE172;ZRE173..ATM,CVT201703

85214BRUBBER, WIPER, LH

main85214-02360iZRE17#..BZ,LA201403-201703

main85214-02360iZRE173..VEN201403-201708

main85214-02360iZRE173..6F201703-202002

main85214-02360iZRE172;ZRE173..ATM,CVT201703

85221BARM, FRONT WIPER, LH

main85221-02400iZRE17#..BZ,LA201403-201703

main85221-02400iZRE173..VEN201403-201708

main85221-02400iZRE173..6F201703-202002

main85221-02400iZRE172;ZRE173..ATM,CVT201703

85222ABLADE, FR WIPER, LH

main85222-02290iZRE17#..BZ,LA201403-201703

main85222-02290iZRE173..VEN201403-201708

main85222-02290iZRE173..6F201703-202002

main85222-02290iZRE172;ZRE173..ATM,CVT201703

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZRE17#..BZ,LA¥250201403-201703

main85292-13010iZRE173..VEN¥250201403-201708

main85292-13010iZRE173..6F¥250201703-202002

main85292-13010iZRE172;ZRE173..ATM,CVT¥250201703

89941SENSOR, RAIN

main89941-52010iZRE17#..E¥12,500201703-201908

89943COVER, RAIN SENSOR

main89943-47010iZRE17#..E¥1,550201703-201908

89944TAPE, RAIN SENSOR

main89944-42010iZRE17#..E¥1,490201703-201908

9011906864

main90119-06864¥80

14 parts on this diagram · 1 diagram in section
