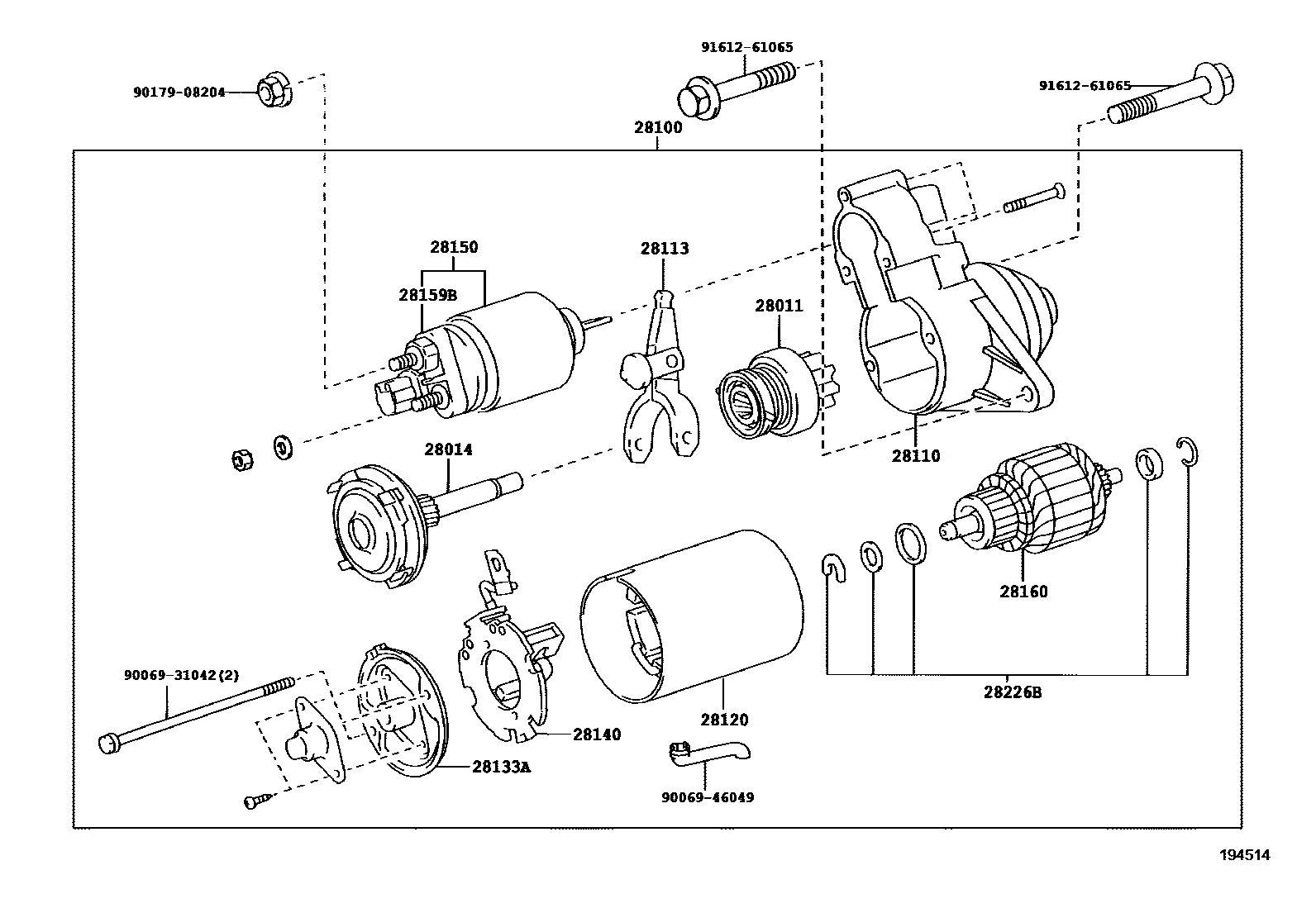

Toyota COROLLA (S.AMERICA) — STARTER

0001 112V 1.1KW 0002 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28100STARTER ASSY

main28100-0T091i2ZR#,3ZRFBE..ZRE17#201403-201409

12V 1.1KW

sub28100-0T310

main28100-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28113LEVER, STARTER PINION DRIVE

main28113-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28120YOKE ASSY, STARTER

main28120-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28133AFRAME, COMMUTATOR END

main28133-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28140HOLDER ASSY, STARTER BRUSH

main28140-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28150SWITCH ASSY, MAGNET STARTER

main28150-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28159BCOVER, MAGNET SWITCH

main28159-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28160ARMATURE ASSY, STARTER

main28160-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

28226BSTARTER KIT, REPAIR SERVICE

main28226-0T310i2ZR#,3ZRFBE..ZRE17#201410-202002

9006931042

main90069-31042

9006946049

main90069-46049

9017908204

main90179-08204¥140

9161261065

main91612-61065¥160

16 parts on this diagram · 2 diagrams in section
