Toyota COROLLA (S.AMERICA) — STANDARD TOOL

0001 1 0002 1

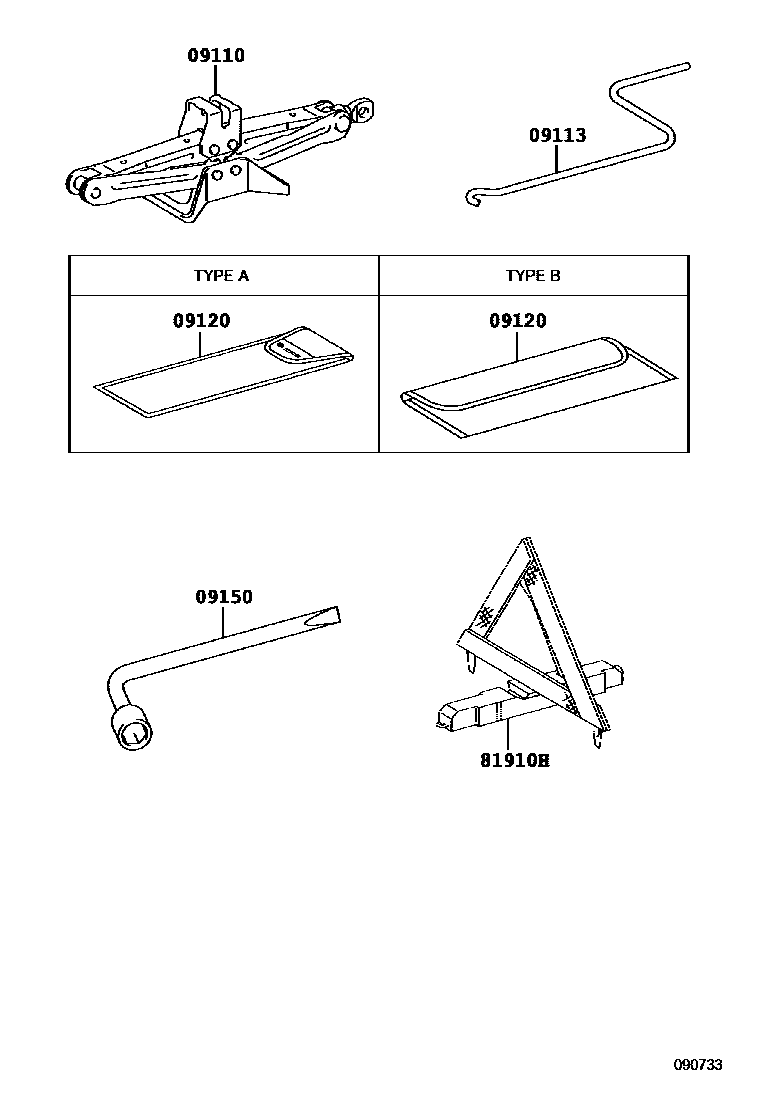

09110JACK ASSY

main09111-02081iZRE173..6F201501-202002

main09111-02160iZRE17#..BZ,LA201403-201908

09113HANDLE, JACK

main09113-02040iZRE17#..BZ,LA201403-201908

main09113-02060iZRE173..6F201501-202002

09120BAG, TOOL

main09120-02040iZRE17#..BZ201403-201908

TYPE A:REFER ILLUST.

main09120-02070iZRE17#..BZ,LA201403-201908

TYPE B:REFER ILLUST.

main09120-10040iZRE173..VEN¥600201501-202002

TYPE B:REFER ILLUST.

09150WRENCH, HUB NUT BOX

main09150-02010iZRE17#..BZ,LA201403-201908

main09150-40010iZRE173..4FC¥1,150201501-202002

81910HREFLECTOR ASSY, REFLEX

main81910-02010iZRE17#..BZ201403-201908

5 parts on this diagram · 2 diagrams in section
