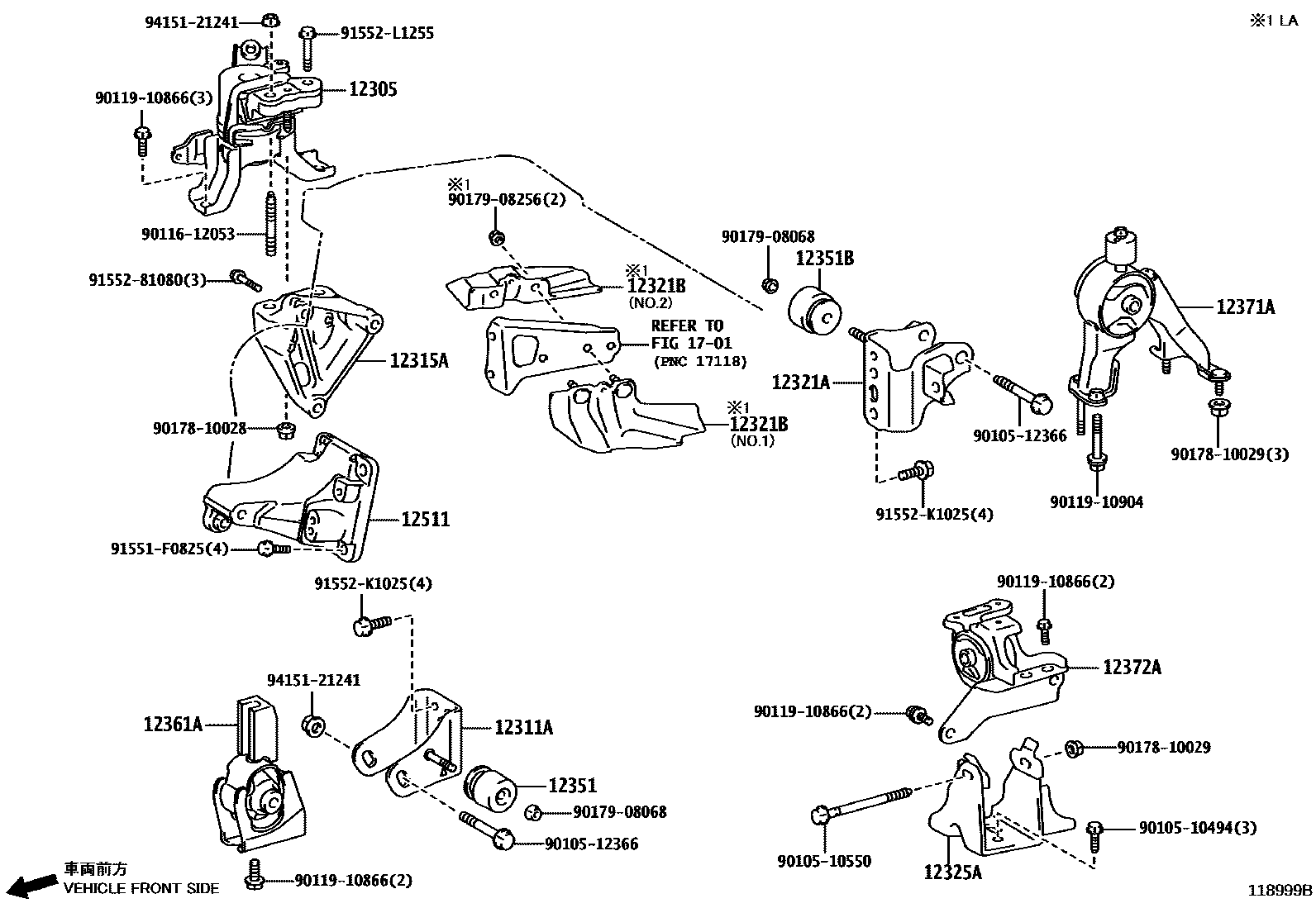

Toyota COROLLA (S.AMERICA) — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T200i2ZR#..ZRE172201403-201505

main12305-0T220i2ZR#..ZRE172201506-201908

main12305-0T230i3ZRFBE..ZRE173201506-201908

main12305-37081i3ZRFE..ZRE173..4FC201403-202002

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0T150i3ZR#..ZRE173..ATM,CVT201403-201708

main12311-0T270i2ZR#..ZRE172..6F201403-201908

main12311-0T430i3ZRFE..ZRE173..6F201501-202002

main12311-0T450i2ZR#..ZRE172..CVT201403-201908

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0T030i3ZRFE..ZRE173201501-202002

(L)

main12315-0T050i2ZR#,3ZRFBE..ZRE17#201504-201908

(L)

main12315-37030i3ZRFE..ZRE173..6F¥3,440201501-202002

(J)

main12315-37030i2ZR#,3ZRFBE..ZRE17#¥3,440201403-201504

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0T180i3ZRFE..ZRE173..4FC201501-201708

main12321-0T310i2ZR#..ZRE172..6F201403-201908

main12321-0T480i3ZRFE..ZRE173..6F201501-202002

main12321-0T500i2ZR#..ZRE172..CVT201403-201908

main12321-0T510i3ZRFBE..ZRE173201403-201908

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12060i2ZRFE..ZRE172¥880201403-201908

NO.1

main43498-12051i2ZRFE..ZRE172¥880201403-201908

NO.2

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0T180i3ZRFE..ZRE173..4FC201501-201708

main12325-0T310i2ZR#..ZRE172..6F201403-201908

main12325-0T400i3ZRFE..ZRE173..6F201501-202002

main12325-0T420i2ZR#..ZRE172..CVT201403-201908

main12325-0T430i3ZRFBE..ZRE173201403-201908

12351DAMPER, ENGINE MOUNTING

main12351-0T240i3ZRFE..ZRE173..6F201501-202002

main12351-26010i2ZR#..ZRE172..6F¥2,120201403-201908

12351BDAMPER, ENGINE MOUNTING

main12351-37120i2ZR#..ZRE172..6F¥2,300201403-201908

main12351-74140i3ZRFE..ZRE173..4FC¥3,110201501-201708

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0T092i3ZRFE..ZRE173..4FC201403-201707

sub12361-0T093

main12361-0T093i3ZRFE..ZRE173..4FC201708

main12361-0T260i3ZRFE..ZRE173..6F201501-202002

main12361-0T270i2ZR#..ZRE172..6F201403-201908

main12361-0T280i2ZR#..ZRE172..CVT201403-201908

main12361-0T290i3ZRFBE..ZRE173201506-201908

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0T100i2ZR#..ZRE172..6F201410-201908

main12371-0T110i2ZR#..ZRE172..CVT201410-201908

main12371-0T260i2ZR#..ZRE172..CVT201403-201409

main12371-0T270i2ZR#..ZRE172..6F201403-201409

main12371-0T350i3ZRFE..ZRE173..6F201501-202002

main12371-0T390i3ZRFBE..ZRE173201406-201908

main12371-37030i3ZRFBE..ZRE173¥10,800201403-201405

main12371-37110i3ZRFE..ZRE173..4FC201501-201708

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T201i2ZR#..ZRE172..6F201403-201505

main12372-0T211i2ZR#..ZRE172..CVT201403-201505

main12372-0T380i3ZRFE..ZRE173..4FC201501-201708

main12372-0T400i3ZRFE..ZRE173..6F201501-202002

main12372-0T440i3ZRFBE..ZRE173201403-201908

main12372-0T450i2ZR#..ZRE172..6F201506-201908

main12372-0T460i2ZR#..ZRE172..CVT201506-201908

12511BRACKET, ALTERNATOR, NO.1

main12511-0T050i3ZRFE..ZRE173201501-202002

(L)

main12511-37010i2ZR#,3ZRFBE..ZRE17#¥2,220201403-201908

main12511-37010i3ZRFE..ZRE173..6F¥2,220201501-202002

(J)

1701

9010510494

main90105-10494¥100

9010510550

main90105-10550¥240

9010512366

main90105-12366¥240

9011612053

main90116-12053¥310

9011910866

main90119-10866¥100

9011910904

main90119-10904¥220

9017810028

main90178-10028¥120

9017810029

main90178-10029¥100

9017908068

main90179-08068¥100

9017908256

main90179-08256¥80

91551F0825

main91551-F0825¥80

9155281080

main91552-81080¥190

91552K1025

main91552-K1025¥100

91552L1255

main91552-L1255¥190

9415121241

main94151-21241¥100

28 parts on this diagram · 5 diagrams in section
