Toyota COROLLA (S.AMERICA) — METER

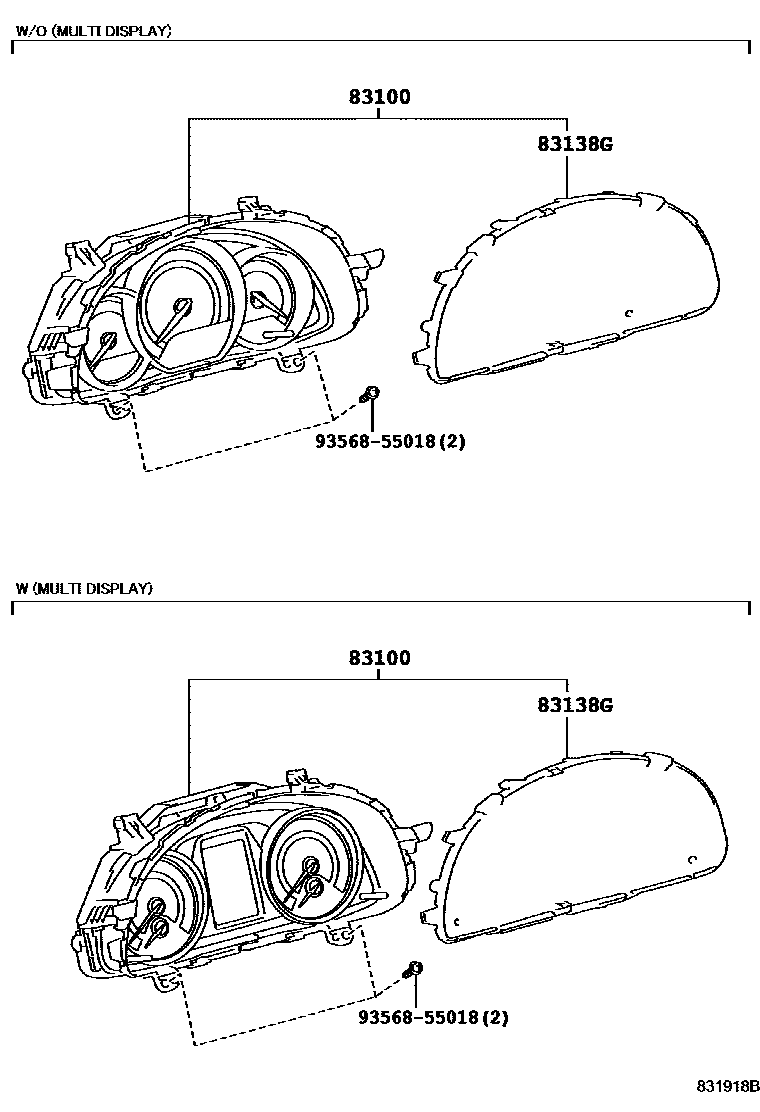

Parts diagram

83100METER ASSY, COMBINATION

main83800-0ZG60i201403-201703

main83800-0ZJ80i201501-201708

main83800-F2640i201403-201703

main83800-F2650i201403-201703

main83800-F2660i201501-201708

main83800-F2R30i201703-201908

main83800-F2R90i201708-202002

CONTINENTAL

main83800-F2S00i201703-201908

main83800-F2S10i201703-201908

main83800-F2S20i201708-202002

CONTINENTAL

83138GGLASS, COMBINATION METER

main83852-0ZG60i201403-201703

W/O(RADIO RECEIVER)

main83852-0ZG60i201403-201708

main83852-F2640i201403-201708

main83852-F2R30i201703-202002

main83852-F2S00i201703-202002

9356855018

main93568-55018¥120

3 parts on this diagram · 1 diagram in section
