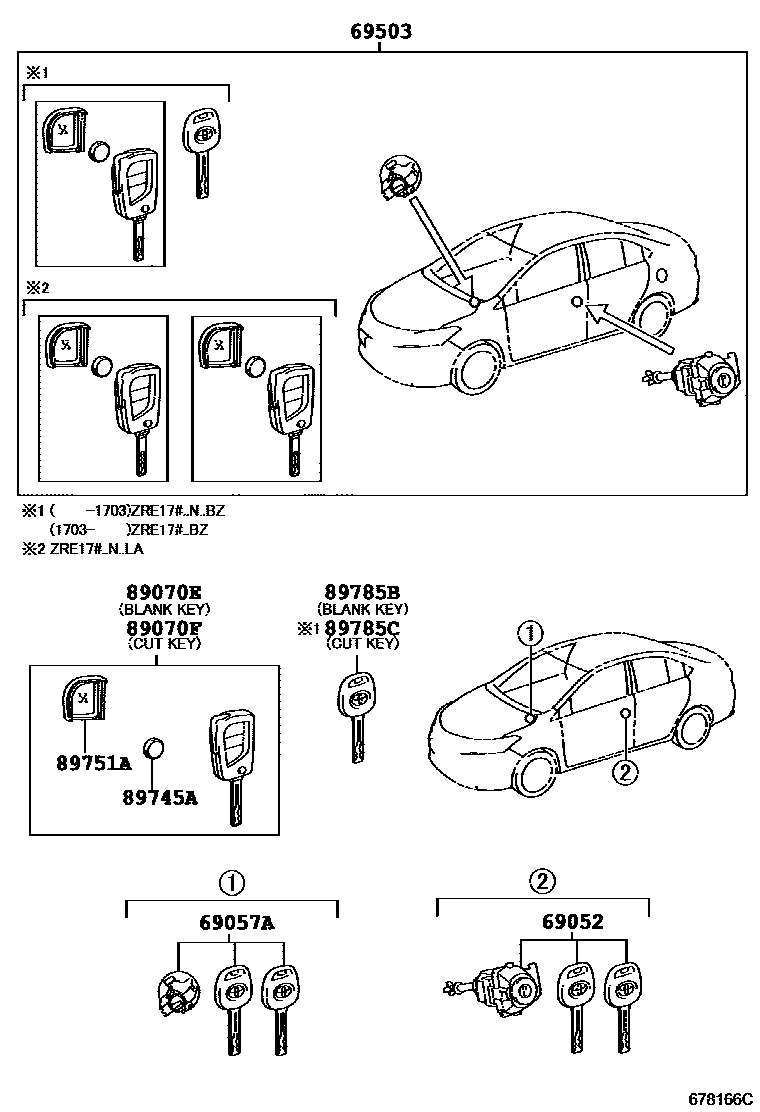

Toyota COROLLA (S.AMERICA) — LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY) 0005 1W/O(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02320iZRE172..N201703-201908

main69052-02320iZRE17#..N..(BZ,LA)201403-201703

main69052-02340iZRE173..6F201708-202002

main69052-02340iZRE173..4FC201708

main69052-02340iZRE173..VEN201501-201708

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02760iZRE172..N201703-201908

main69057-02760iZRE17#..N..(BZ,LA)201403-201703

main69057-02770iZRE173..4FC201708

main69057-02770iZRE173..4FC201501-201708

main69057-02870iZRE173..6F201501-201708

main69057-02870iZRE173..6F201708-202002

69503CYLINDER SET, LOCK

main69005-02B60iZRE17#..E201403-201703

main69005-02B60iZRE172..E;ZRE173..BZ201703-201908

main89704-02460iZRE172..N..LA201403-201703

UP GRADE PACKAGE

main89704-02460iZRE172..N..LA201703-201908

main89704-02840iZRE172..BZ201703-201908

main89704-02840iZRE17#..N..BZ201403-201703

main89704-02A60iZRE173..4FC201708

main89704-02A60iZRE173..4FC201501-201708

main89704-02A70iZRE173..6F201501-201708

main89704-02A70iZRE173..6F201708-202002

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02C10iZRE172..N201703-201908

BLANK KEY

main89070-02C10iZRE17#..N..(BZ,LA)201403-201703

BLANK KEY

main89070-02C10iZRE17#..N..(BZ,LA)201403-201703

UP GRADE PACKAGE,BLANK KEY

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-02C00iZRE17#..N..BZ201403-201703

UP GRADE PACKAGE

main89070-02C00iZRE172..N..LA201703-201908

main89070-02D70iZRE173..6F201708-202002

main89070-02D70iZRE173..VEN201501-201708

main89070-02D70iZRE173..4FC201708

89745ABATTERY, TRANSMITTER

main89745-0D040iZRE173..VEN¥440201501-201708

CR1620

main89745-0D040iZRE173..6F¥440201708-202002

CR1620

main89745-0D040iZRE173..4FC¥440201708

CR1620

main89745-0H010iZRE17#..N..(BZ,LA)201403-201703

UP GRADE PACKAGE

main89745-0H010iZRE172..N201703-201908

CR2016

89751ACOVER, TRANSMITTER HOUSING

main89751-02120iZRE172..BZ201703-201908

main89751-02120iZRE17#..N..BZ201403-201703

UP GRADE PACKAGE

main89751-02180iZRE173..VEN¥590201501-201708

main89751-02180iZRE173..6F¥590201708-202002

main89751-02180iZRE173..4FC¥590201708

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-02370iZRE17#..N..(BZ,LA)201403-201703

UP GRADE PACKAGE

main89785-02370iZRE172..N201703-201908

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-02360iZRE17#..N..BZ201403-201703

main89785-02360iZRE172..BZ201703-201908

main89785-02460iZRE173..VEN201501-201708

main89785-02460iZRE173..6F201708-202002

main89785-02460iZRE173..4FC201708

9 parts on this diagram · 3 diagrams in section
