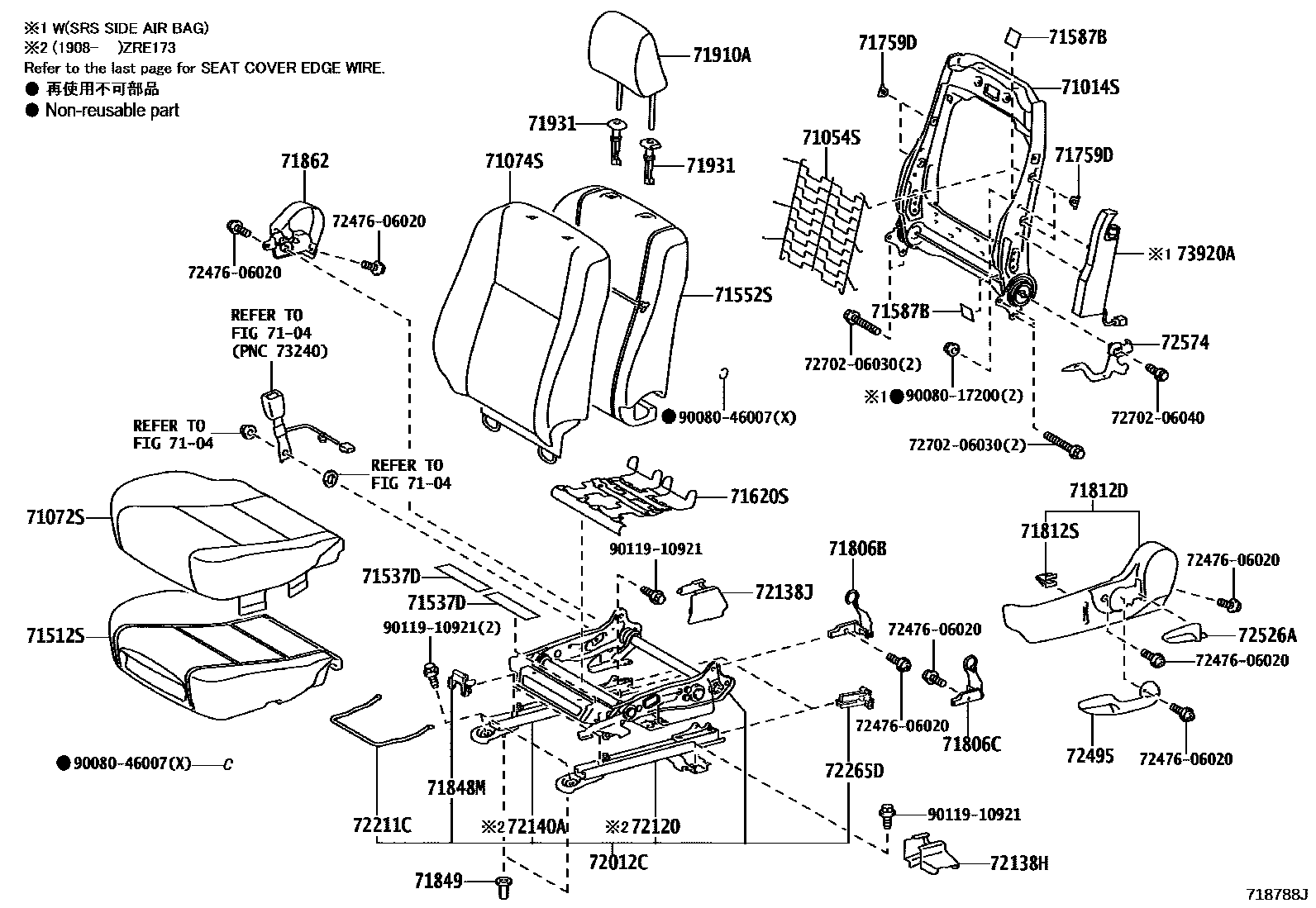

Toyota COROLLA (S.AMERICA) — FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT W(POWER SEAT) 0003 1PASSENGER SEAT 0004 1SEAT COVER EDGE WIRE

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71013-02310iZRE17#..E201403-201703

main71013-02310iZRE17#..E201703-201908

main71014-02240iZRE17#..N..(BZ,LA)201403-201703

main71014-02240iZRE17#..D,N201703

main71014-02240iZRE173..VEN201403-201708

7104

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-02080iZRE173..VEN201403-201708

main71053-02080iZRE17#201703

main71053-02080iZRE17#..BZ,LA201403-201703

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0ZA20-A2iZRE17#..E201403-201703

IVORY,TRIM0#

main71072-0ZA20-A4iZRE173..E201703-201810

FLAXEN,TRIM0#

main71072-0ZA20-A5iZRE173..E201810-201908

FLAXEN,TRIM0#

main71072-0ZA20-C0iZRE172..E201703-201810

BLACK,TRIM2#

main71072-0ZA20-C1iZRE172..E201810-201908

BLACK,TRIM2#

main71072-0ZA30-B2iZRE172..CVT..N;ZRE172..6F..N..LA201703-201908

GRAY,TRIM1#

main71072-0ZA30-B2iZRE173..N..BZ201703-201908

UP GRADE PACKAGE,GRAY,TRIM1#

main71072-0ZA30-B2iZRE173..N..BZ201403-201703

GRAY,TRIM1#

main71072-0ZA30-B2iZRE173..N..BZ201403-201703

UP GRADE PACKAGE,GRAY,TRIM1#

main71072-0ZA30-C0iZRE173..N..BZ201703-201810

BLACK,TRIM2#

main71072-0ZA30-C1iZRE173..N..BZ201810-201908

BLACK,TRIM2#

main71072-0ZA40-B1iZRE172..N201403-201506

GRAY,TRIM1#

sub71072-0ZA41

main71072-0ZA41-B1iZRE172..N201507-201703

GRAY,TRIM1#

main71072-0ZA41-B1iZRE172..N201703-201810

GRAY,TRIM1#

main71072-0ZA41-B2iZRE172..N201810-201908

GRAY,TRIM1#

main71072-0ZA50-B1iZRE173..D201501-201708

GRAY,TRIM1#

main71072-0ZA50-B1iZRE173..D201708-201810

GRAY,TRIM1#

main71072-0ZA50-B2iZRE173..D201810

GRAY,TRIM1#

main71072-0ZA60-B2iZRE173..N..VEN201501-201708

GRAY,TRIM1#

main71072-0ZA60-B2iZRE173..N..VEN201708-201810

GRAY,TRIM1#

main71072-0ZA60-B3iZRE173..N..VEN201810

GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0ZJ00-B1iZRE172..N201403-201506

GRAY,TRIM1#

sub71074-0ZJ01

main71074-0ZJ01-B1iZRE172..N201507-201703

GRAY,TRIM1#

main71074-0ZJ01-B1iZRE172..N;ZRE173..D201703-201810

GRAY,TRIM1#

main71074-0ZJ01-B2iZRE173..D201810-201907

GRAY,TRIM1#

main71074-0ZJ01-B2iZRE172..N201810-201908

GRAY,TRIM1#

main71074-0ZJ10-A2iZRE17#..E201403-201703

IVORY,TRIM0#

main71074-0ZJ10-A4iZRE173..E201703-201810

FLAXEN,TRIM0#

main71074-0ZJ10-A5iZRE173..E201810-201908

FLAXEN,TRIM0#

main71074-0ZJ10-B2iZRE173..N..BZ201403-201703

UP GRADE PACKAGE,GRAY,TRIM1#

main71074-0ZJ10-B2iZRE173..N..BZ201403-201703

GRAY,TRIM1#

main71074-0ZJ10-B3iZRE172..CVT..N;ZRE172..6F..N..LA201703-201810

UP GRADE PACKAGE,GRAY,TRIM1#

main71074-0ZJ10-B3iZRE173..N..BZ201703-201810

GRAY,TRIM1#

main71074-0ZJ10-C0iZRE172..E;ZRE173..N..BZ201703-201810

BLACK,TRIM2#

main71074-0ZJ10-C1iZRE172..E;ZRE173..N..BZ201810-201908

BLACK,TRIM2#

main71074-0ZJ20-B1iZRE173..D201501-201708

GRAY,TRIM1#

main71074-0ZJ30-B2iZRE173..N..VEN201501-201708

GRAY,TRIM1#

main71074-F2030-B0iZRE173..N..VEN201708-201810

GRAY,TRIM1#

main71074-F2030-B1iZRE173..N..VEN201810-201907

GRAY,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02690iZRE173..VEN201501-201708

main71512-02690iZRE173..VEN201708

main71512-02710iZRE17#..N..(BZ,LA)201703-201908

main71512-02710iZRE17#..N..(BZ,LA)201403-201703

main71512-02720iZRE17#..E201703-201908

main71512-02720iZRE17#..E201403-201703

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-02330iZRE17#201703

main71537-02330iZRE17#..BZ,LA201403-201703

main71537-02330iZRE173..VEN201403-201708

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02610iZRE173..VEN201703-201907

main71552-02610iZRE17#..BZ,LA201403-201703

main71552-02610iZRE17#..BZ,LA201703-201908

main71552-02850iZRE173..VEN201501-201708

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-02050iZRE17#..BZ,LA201403-201703

main71587-02050iZRE173..VEN201403-201708

main71587-02050iZRE17#201703

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-02050iZRE17#201703

main71587-02050iZRE17#..BZ,LA201403-201703

main71587-02050iZRE173..VEN201403-201708

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-02360iZRE17#..D,N201703

main71620-02360iZRE17#..N..(BZ,LA)201403-201703

main71620-02360iZRE173..VEN201403-201708

main71620-06370iZRE17#..E201703-201908

main71620-06370iZRE17#..E201403-201703

71759DHOOK, FRONT SEATBACK, NO.2

main71759-02060iZRE17#..BZ,LA201403-201703

main71759-02060iZRE173..VEN201403-201708

main71759-02060iZRE17#201703

71806BSHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1

main71806-02090-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

main71806-02090-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main71806-02090-C0iZRE172..N;ZRE173..VEN201703

BLACK,TRIM1#

main71806-06010-C0iZRE172..E201703-201908

BLACK,TRIM0#

main71806-06010-C0iZRE17#..E201403-201703

BLACK,TRIM0#

main71806-06010-C0iZRE173..E201703-201908

BLACK,TRIM2#

71806CSHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2

main71806-02100-C0iZRE172..N;ZRE173..VEN201703

BLACK,TRIM1#

main71806-02100-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

main71806-02100-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main71806-06020-C0iZRE173..E201703-201908

BLACK,TRIM0#

main71806-06020-C0iZRE173..E201703-201908

BLACK,TRIM2#

main71806-06020-C0iZRE17#..E201403-201703

BLACK,TRIM0#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02770-C0iZRE172..N;ZRE173..VEN201703

BLACK,TRIM1#

main71812-02770-C0iZRE17#..N..(BZ,LA)201403-201703

BLACK,TRIM1#

main71812-02770-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main71812-02780-C0iZRE173..E201703-201908

BLACK,TRIM2#

main71812-02780-C0iZRE172..E201703-201908

BLACK,TRIM0#

main71812-02780-C0iZRE17#..E201403-201703

BLACK,TRIM0#

main71812-02850-C0iZRE173..VEN201501-201708

BLACK,TRIM1#

71812SCLIP, FRONT SEAT CUSHION SHIELD, LH

main71769-0C020iZRE173..VEN201403-201708

main71769-0C020iZRE17#..BZ,LA201403-201703

main71769-0C020iZRE17#201703

71848MCAP, SEAT ADJUSTER COVER, FRONT UPPER

main71848-02110iZRE17#..E201703-201908

main71848-02110iZRE17#..E201403-201703

main71848-02110iZRE17#..D,N201403-201708

main71848-02110iZRE17#..D,N201703

71849CAP, SEAT ADJUSTER COVER, LH

main71848-0T020iZRE173..VEN201403-201708

main71848-0T020iZRE17#..BZ,LA201403-201703

main71848-0T020iZRE17#201703

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-02310-C0iZRE173..E201703-201908

BLACK,TRIM0#

main71862-02310-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main71862-02310-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main71862-02310-C0iZRE17#..E201403-201703

BLACK,TRIM0#

main71862-02310-C0iZRE172..N;ZRE173..VEN201703

BLACK,TRIM1#

main71862-02310-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-02P01-B1iZRE172..N201403-201703

GRAY,TRIM1#

main71910-02P01-B1iZRE172..N201703-201908

GRAY,TRIM1#

main71910-02P11-A1iZRE17#..E201403-201703

IVORY,TRIM0#

main71910-02P11-A2iZRE173..E201703-201908

FLAXEN,TRIM0#

main71910-02P11-B1iZRE172..N201403-201703

UP GRADE PACKAGE,GRAY,TRIM1#

main71910-02P11-B1iZRE172..CVT..N;ZRE172..6F..N..LA201703-201908

UP GRADE PACKAGE,GRAY,TRIM1#

main71910-02P11-B1iZRE173..N..BZ201403-201703

GRAY,TRIM1#

main71910-02P11-B1iZRE173..N..BZ201703-201908

GRAY,TRIM1#

main71910-02P11-C0iZRE172..E;ZRE173..N..BZ201703-201908

BLACK,TRIM2#

main71910-02P21-B1iZRE173..D201501-201708

GRAY,TRIM1#

main71910-02P21-B1iZRE173..D201708

GRAY,TRIM1#

main71910-02P31-B1iZRE173..N..VEN201501-201708

GRAY,TRIM1#

main71910-02P31-B1iZRE173..N..VEN201708

GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02330-A0iZRE17#..E201403-201703

W(LOCK),IVORY,TRIM0#

sub71930-02330

main71930-02330-A1iZRE173..E201703-201908

W(LOCK),FLAXEN,TRIM0#

sub71930-02330

main71930-02330-B0iZRE17#..D,N201703

W(LOCK),GRAY,TRIM1#

sub71930-02330

main71930-02330-B0iZRE17#..D,N201403-201708

W(LOCK),GRAY,TRIM1#

sub71930-02330

main71930-02330-C4iZRE172..E;ZRE173..N..BZ201703-201810

W(LOCK),BLACK,TRIM2#

sub71930-02330

main71930-02330-C6iZRE172..E;ZRE173..N..BZ201810-201908

W(LOCK),BLACK,TRIM2#

sub71930-02330

main71931-02150-A0iZRE17#..E201403-201703

W/O(LOCK),IVORY,TRIM0#

sub71931-02150

main71931-02150-A1iZRE173..E201703-201908

W/O(LOCK),FLAXEN,TRIM0#

sub71931-02150

main71931-02150-B0iZRE17#..D,N201403-201708

W/O(LOCK),GRAY,TRIM1#

sub71931-02150

main71931-02150-B0iZRE17#..D,N201703

W/O(LOCK),GRAY,TRIM1#

sub71931-02150

main71931-02150-C0iZRE172..E;ZRE173..N..BZ201703-201810

W/O(LOCK),BLACK,TRIM2#

sub71931-02150

main71931-02150-C2iZRE172..E;ZRE173..N..BZ201810-201908

W/O(LOCK),BLACK,TRIM2#

sub71931-02150

72012CADJUSTER SUB-ASSY, FRONT SEAT, LH

main72012-02290iZRE17#..N201403-201412

sub72012-02291

main72012-02291iZRE173..VEN201501-201708

main72012-02291iZRE17#..N..(BZ,LA)201501-201703

main72012-02291iZRE17#..D,N201703

main72012-02320iZRE17#..E201703-201908

main72012-02320iZRE17#..E201403-201703

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-02230iZRE173..6F201908-202002

main72120-02230iZRE173..4FC201908

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72138-02280-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main72138-02280-C0iZRE172..N;ZRE173..4FC201703

BLACK,TRIM1#

main72138-02280-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

main72138-02280-C0iZRE173..6F201703-202002

BLACK,TRIM1#

main72138-02291-C0iZRE173..E201703-201908

BLACK,TRIM2#

main72138-02291-C0iZRE172..E201703-201908

BLACK,TRIM0#

main72138-02291-C0iZRE17#..E201403-201703

BLACK,TRIM0#

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72158-02290-C0iZRE173..6F201703-202002

BLACK,TRIM1#

main72158-02290-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

main72158-02290-C0iZRE172..N;ZRE173..4FC201703

BLACK,TRIM1#

main72158-02290-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main72158-02301-C0iZRE172..E201703-201908

BLACK,TRIM2#

main72158-02301-C0iZRE17#..E201403-201703

BLACK,TRIM0#

main72158-02301-C0iZRE173..E201703-201908

BLACK,TRIM0#

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-02230iZRE173..6F201908-202002

main72140-02230iZRE173..4FC201908

72211HANDLE, SEAT TRACK ADJUSTING

main72211-02290iZRE17#201403-201708

main72211-02290iZRE17#201703

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-02290iZRE17#..D,N201403-201708

main72211-02290iZRE17#..D,N201703

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-02190iZRE17#..E201403-201703

main72265-02190iZRE17#..D,N201403-201708

main72265-02190iZRE17#..E201703-201908

main72265-02190iZRE17#..D,N201703

72495HANDLE, VERTICAL ADJUSTING, LH

main72493-02030-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

main72493-02030-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main72493-02030-C0iZRE172..N;ZRE173..VEN201703

BLACK,TRIM1#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-02231-C0iZRE17#..D,N201403-201708

BLACK,TRIM1#

main72526-02231-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main72526-02231-C0iZRE172..N;ZRE173..VEN201703

BLACK,TRIM1#

72574LEVER, RECLINING CONTROL, LH

main72574-02060iZRE17#..D,N201403-201708

main72574-02060iZRE17#..D,N201703

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02230iZRE17#..BZ,LA201403-201510

main73920-02290iZRE17#..BZ,LA201511-201703

main73920-02290iZRE17#201703

7247606020SCREW, HORIZONTAL JACK, INNER

main72476-06020

7270206030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-06030

7270206040BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-06040

9008017200

main90080-17200

9008046007

main90080-46007

9011910921

main90119-10921¥100

39 parts on this diagram · 4 diagrams in section
