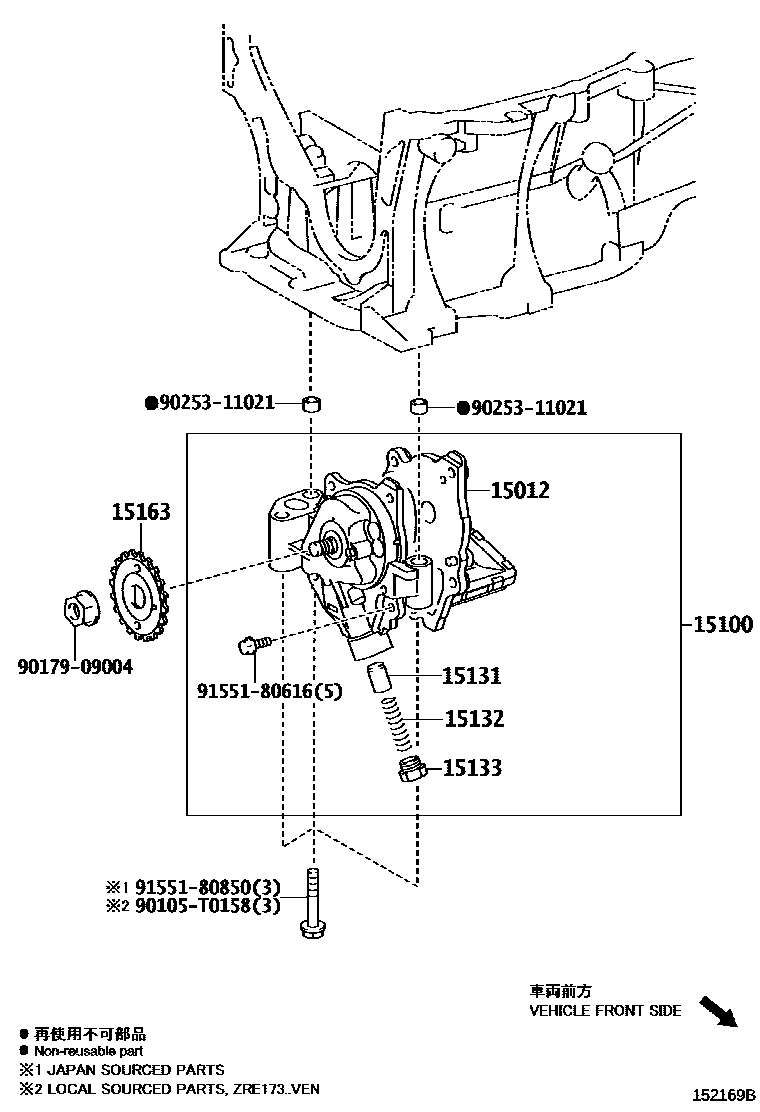

Toyota COROLLA (S.AMERICA) — ENGINE OIL PUMP

0001 1 0003 1

15012COVER SUB-ASSY, OIL PUMP

main15012-0T070i3ZRFE..ZRE173..4FC201501-202002

MADE IN THAILAND

main15012-37010i3ZRFE..ZRE173..6F¥3,160201501-202002

MADE IN JAPAN

main15012-37010i2ZR#,3ZRFBE..ZRE17#¥3,160201403-201908

15100PUMP ASSY, OIL

main15100-0T070i3ZRFE..ZRE173..6F201501-202002

(L)

main15100-37030i3ZRFE..ZRE173¥11,800201501-202002

(J)

main15100-37030i2ZR#,3ZRFBE..ZRE17#¥11,800201403-201908

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2ZR#,3ZRFBE..ZRE17#¥360201403-202002

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i3ZRFE..ZRE173¥210201403-202002

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0T070i3ZRFE..ZRE173201501-202002

MADE IN THAILAND

main15133-28020i3ZRFE..ZRE173..6F¥260201501-202002

MADE IN JAPAN

main15133-28020i2ZR#,3ZRFBE..ZRE17#¥260201403-201908

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H031i3ZRFE..ZRE173..4FC201501-202002

(L)

main15163-0T010i2ZR#,3ZRFBE..ZRE17#201506-201908

(L)

main15163-28010i3ZRFE..ZRE173..4FC;2ZR#,3ZRFBE..ZRE17#¥390201501-202002

(J)

main15163-28010i2ZR#,3ZRFBE..ZRE17#¥390201403-201506

90105T0158

main90105-T0158

9017909004

main90179-09004¥90

9025311021

main90253-11021¥120

9155180616

main91551-80616¥60

9155180850

main91551-80850¥100

11 parts on this diagram · 2 diagrams in section
