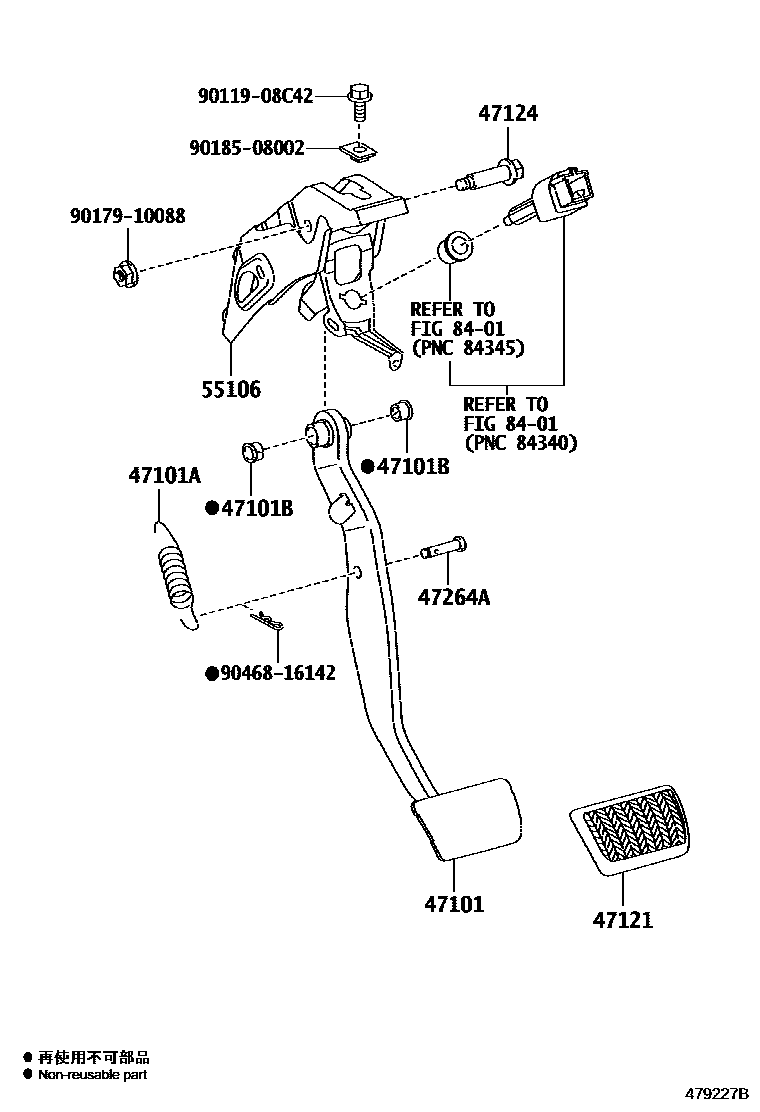

Toyota COROLLA (S.AMERICA) — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02630iZRE17#..CVT201403-201703

main47101-02630iZRE17#..CVT201703-201908

main47101-02640iZRE172..6F201703-201908

main47101-02640iZRE172..6F201403-201703

main47101-02650iZRE173..4FC201501-201708

main47101-02650iZRE173..4FC201708

main47101-02660iZRE173..6F201501-201708

main47101-02660iZRE173..6F201708-202002

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14058iZRE173..VEN201403-201708

main90507-14058iZRE17#..BZ,LA201403-201703

main90507-14058iZRE173..6F201703-202002

main90507-14058iZRE172;ZRE173..ATM,CVT201703

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZRE17#..BZ,LA¥120201403-201703

main90386-13015iZRE173..VEN¥120201403-201708

main90386-13015iZRE173..6F¥120201703-202002

main90386-13015iZRE172;ZRE173..ATM,CVT¥120201703

47121PAD, BRAKE PEDAL

main31321-02050iZRE172..6F201403-201703

main31321-02050iZRE17#..6F201703-202002

main31321-02050iZRE173..6F201403-201708

main47121-02070iZRE17#..CVT201403-201703

main47121-02070iZRE173..4FC201403-201708

main47121-02070iZRE17#..ATM,CVT201703

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE17#..BZ,LA¥190201403-201703

main90109-10174iZRE173..VEN¥190201403-201708

main90109-10174iZRE173..6F¥190201703-202002

main90109-10174iZRE172;ZRE173..ATM,CVT¥190201703

47264APIN(FOR PUSH ROD)

main90249-08256iZRE17#..BZ,LA¥130201403-201703

main90249-08256iZRE173..VEN¥130201403-201708

main90249-08256iZRE173..6F¥130201703-202002

main90249-08256iZRE172;ZRE173..ATM,CVT¥130201703

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02220iZRE17#..BZ,LA201403-201703

main55106-02220iZRE173..VEN201403-201708

main55106-02220iZRE173..6F201703-202002

main55106-02220iZRE172;ZRE173..ATM,CVT201703

8401

9011908C42

main90119-08C42¥80

9017910088

main90179-10088¥100

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

12 parts on this diagram · 1 diagram in section
