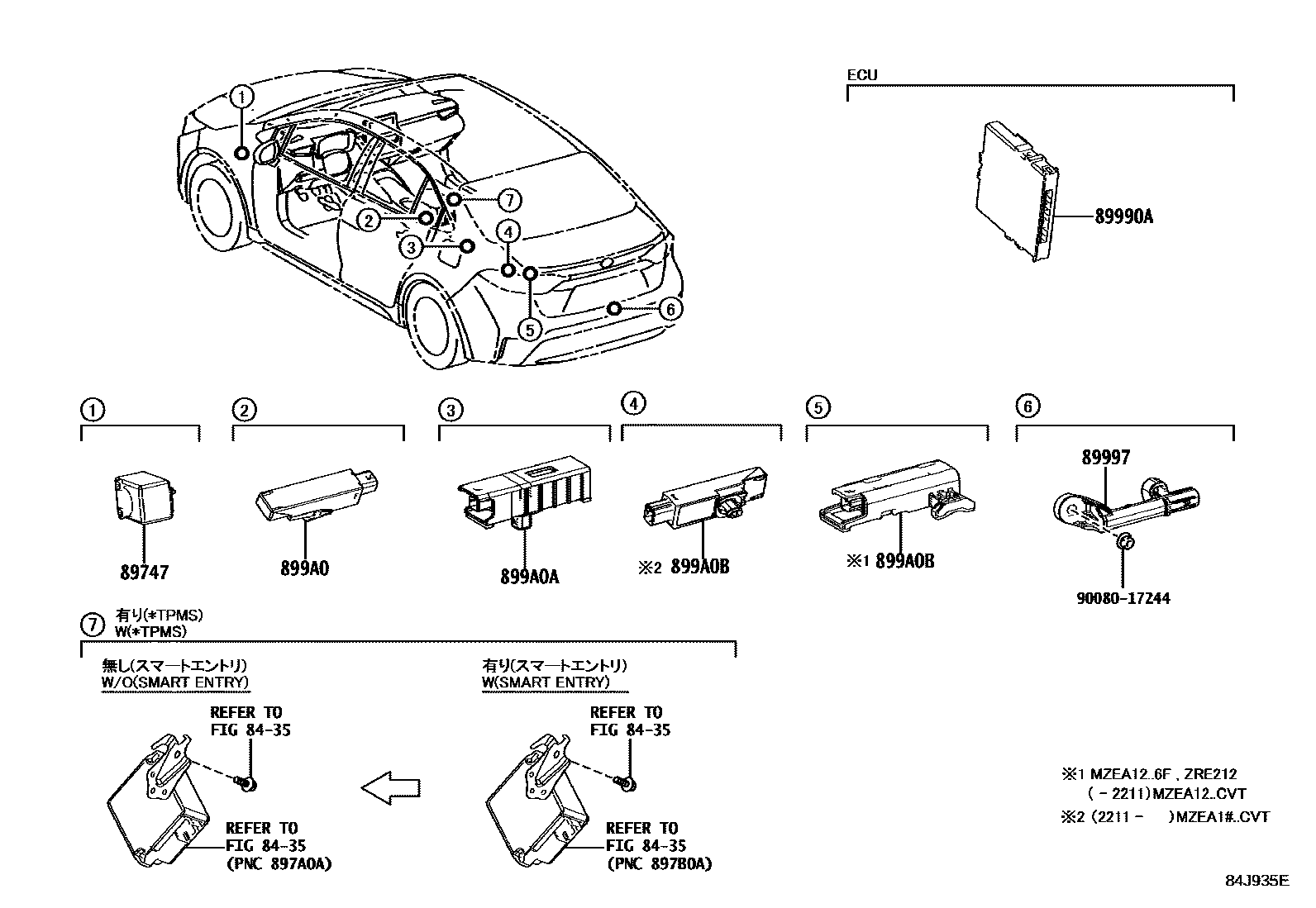

Toyota COROLLA (MEXICO) — WIRELESS DOOR LOCK

8435

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iMZEA1#201903-202410

89990ACOMPUTER ASSY, SMART KEY

main899H0-02370iMZEA1#202211-202410

main899H0-02B40iMZEA1#202410-202508

89997ANTENNA, ELECTRICAL KEY

main89997-0E050iMZEA1#202211-202410

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02190iMZEA1#202211-202410

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0A020iMZEA1#202211-202410

9008017244

main90080-17244¥80

8 parts on this diagram · 1 diagram in section
