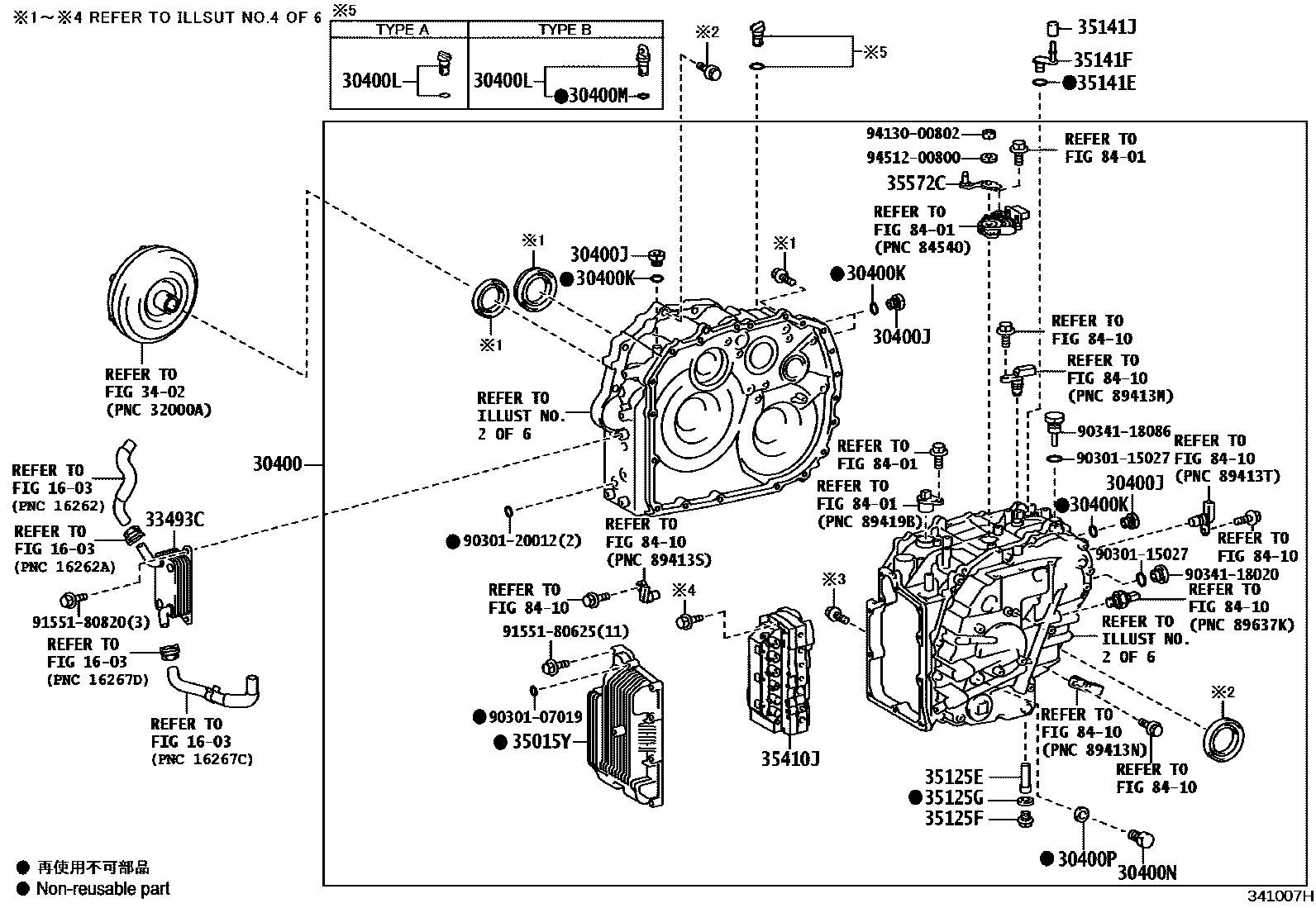

Toyota COROLLA (MEXICO) — TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K120,TMH:REFER TO ILLUST.
K120,AISIN:REFER TO ILL.
K121,TMH:REFER TO ILLUST.
K121,AISIN:REFER TO ILL.
K120,TMH:REFER TO ILLUST.
K120,AISIN:REFER TO ILL.
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400LPLUG , FILLER(CVT)
TYPE A
TYPE B
30400MGASKET, FILLER PLUG(CVT)
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
3402
35015YCOVER SUB-ASSY, TRANSAXLE SIDE
TMH:REFER TO ILLUST.
AISIN:REFER TO ILL.
AISIN:REFER TO ILL.
TMH:REFER TO ILLUST.
TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.
35125ETUBE, OVERFLOW(CVT)
AISIN AW:REF.ILLUST
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35410JBODY ASSY, TRANSMISSION VALVE
AISIN AW:REF.ILLUST
TMH:REFER TO ILLUST.
AISIN:REFER TO ILL.
TMH:REFER TO ILLUST.
AISIN:REFER TO ILL.
35572CLEVER, TRANSMISSION CONTROL SHAFT
8401
8410
9030107019
9030115027
9030120012
9034118020
9034118086
9155180625
9155180820
9413000802
9451200800
