Toyota COROLLA (MEXICO) — RADIO RECEIVER & AMPLIFIER & CONDENSER

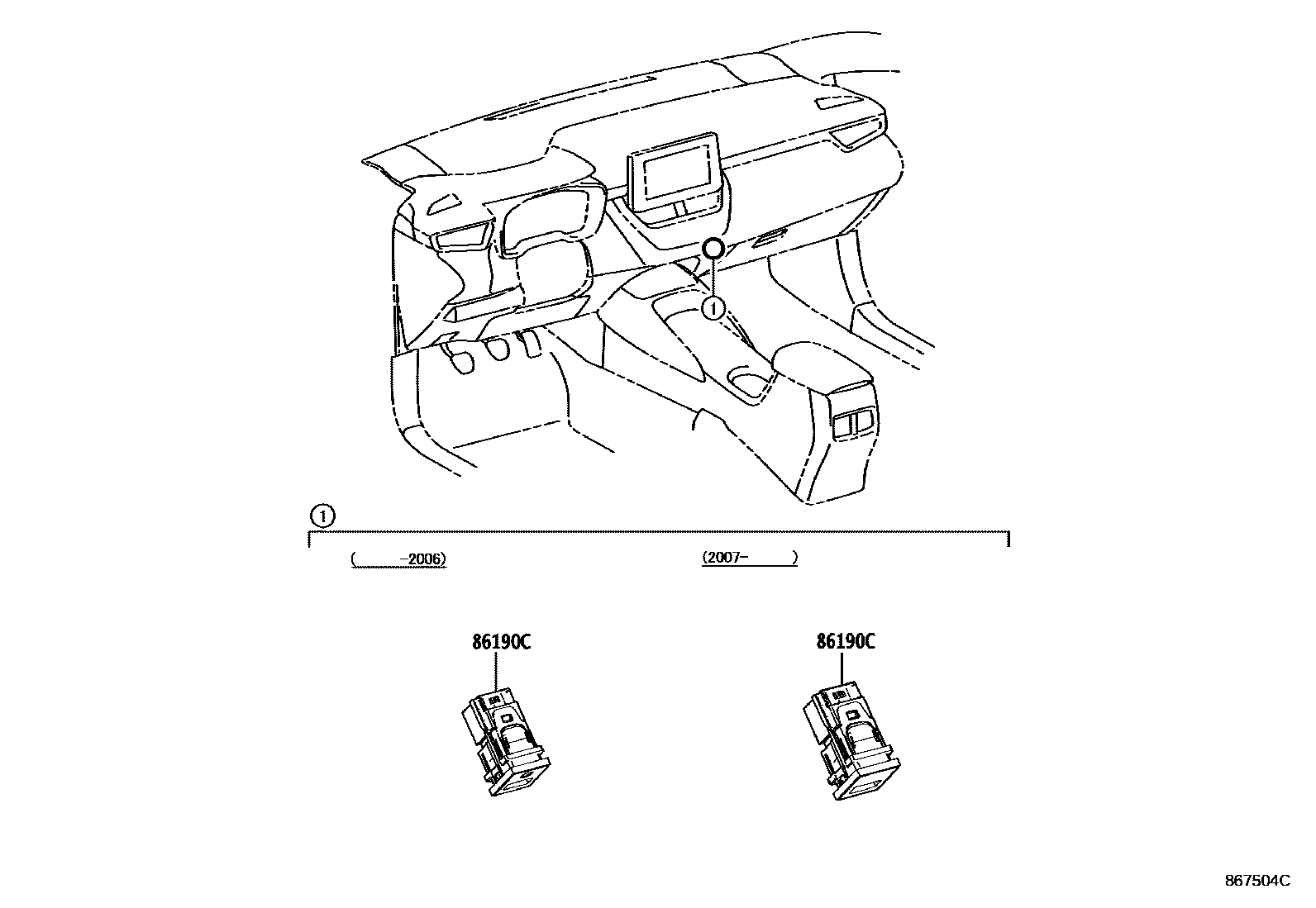

Parts diagram

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02130i202211-202410

main86190-12070i¥3,780202007-202211

main86190-33060i¥7,200201903-202007

1 parts on this diagram · 2 diagrams in section
