Toyota COROLLA (MEXICO) — PARTIAL ENGINE ASSEMBLY

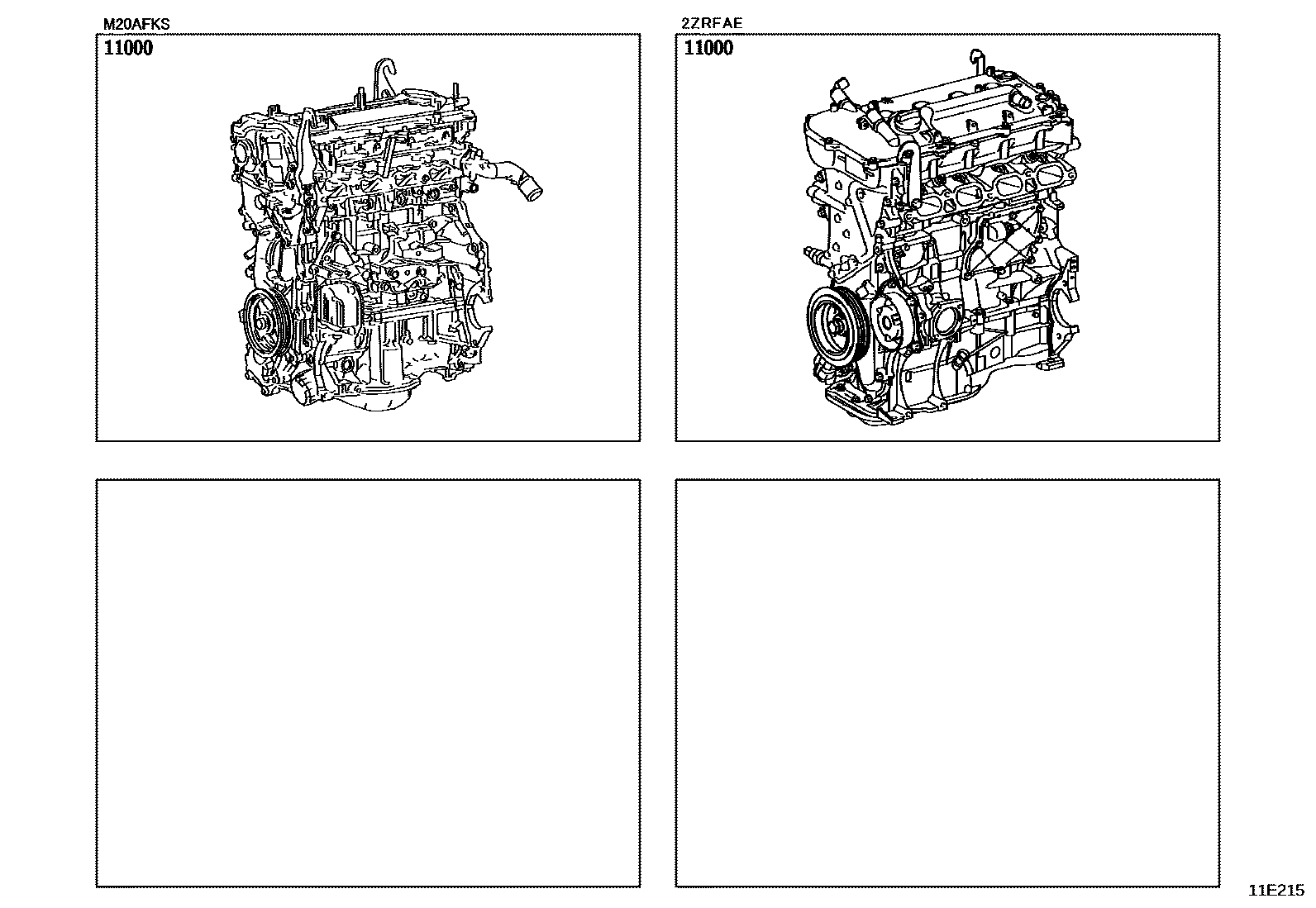

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T730i201903-202007

main19000-0T730i202007-202211

main19000-F2020i201903-202007

main19000-F2020i202007-202106

main19000-F2020i202007-202211

main19000-F2170i202211-202311

main19000-F2380i202410

main19000-F2420i202311-202410

1 parts on this diagram · 1 diagram in section
