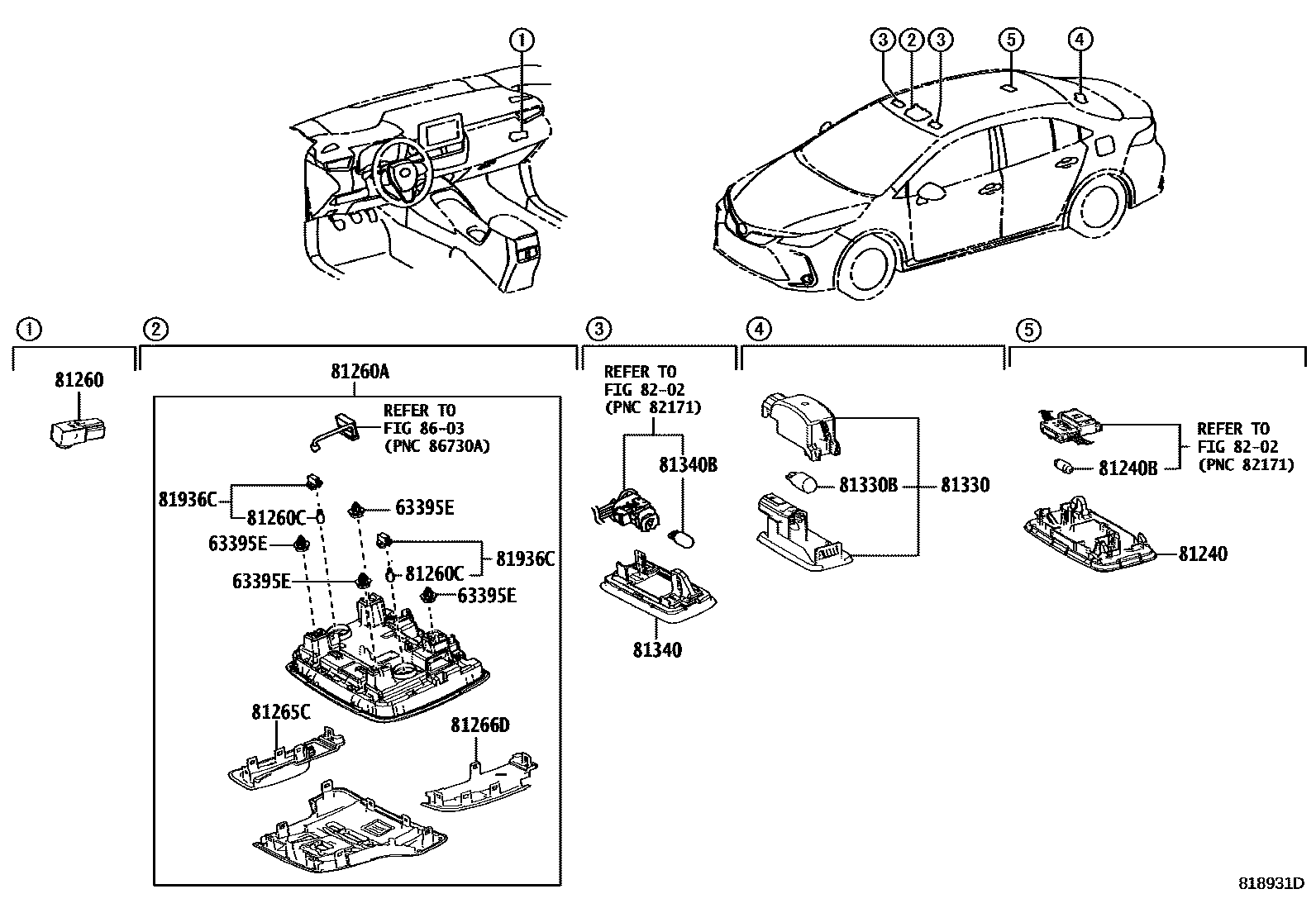

Toyota COROLLA (MEXICO) — INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
MOON ROOF-WITH
MOON ROOF-WITH
MOON ROOF-WITH
81240LAMP ASSY, ROOM, NO.1
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
81240BBULB, ROOM LAMP, NO.1
12V 8W
12V 8W
12V 8W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM1#,2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
81260CBULB(FOR MAP LAMP)
12V 5W
12V 5W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
12V 5W
12V 5W
12V 5W
81340LAMP ASSY, VANITY
MOON ROOF-WITH&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
MOON ROOF-WITH&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
81340BBULB (FOR VANITY LAMP)
12V 8W
12V 8W
12V 8W
81936CBULB ASSY
8202
8603
15 parts on this diagram · 1 diagram in section
