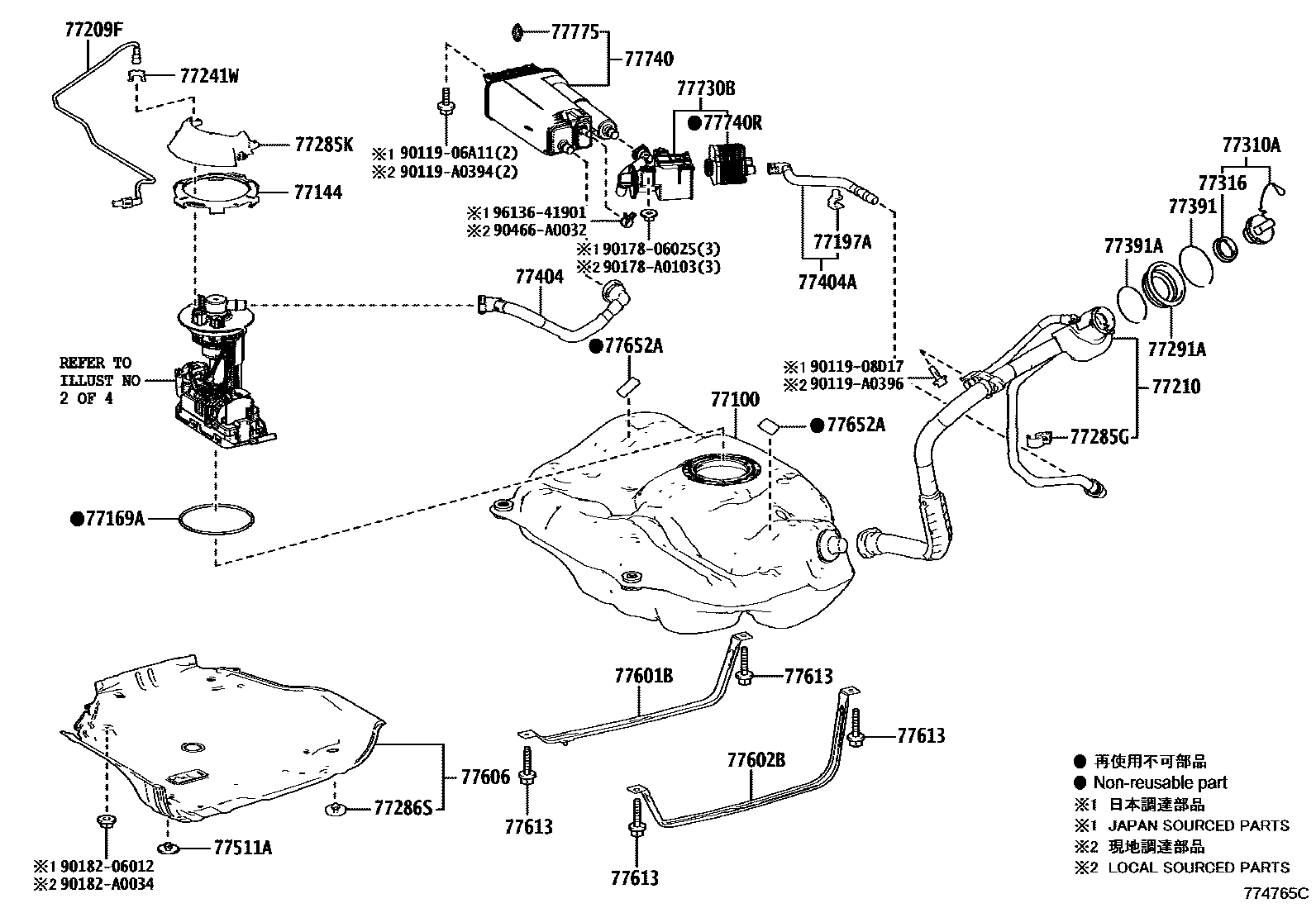

Toyota COROLLA (MEXICO) — FUEL TANK & TUBE
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77404AHOSE SUB-ASSY, FUEL TANK VENT
77511ABRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
(J)
(J)
(J)
(J)
(J)
(L)
(L)
(L)
(L)
(L)
77652ACUSHION, FUEL TANK, NO.2
77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
77775GUIDE, CHARCOAL CANISTER OUTLET
9011906A11
9011908D17
90119A0394
main90119-A0394
90119A0396
main90119-A0396
9017806025
90178A0103
main90178-A0103
9018206012
90182A0034
main90182-A0034
90466A0032
main90466-A0032
9613641901
37 parts on this diagram · 16 diagrams in section
