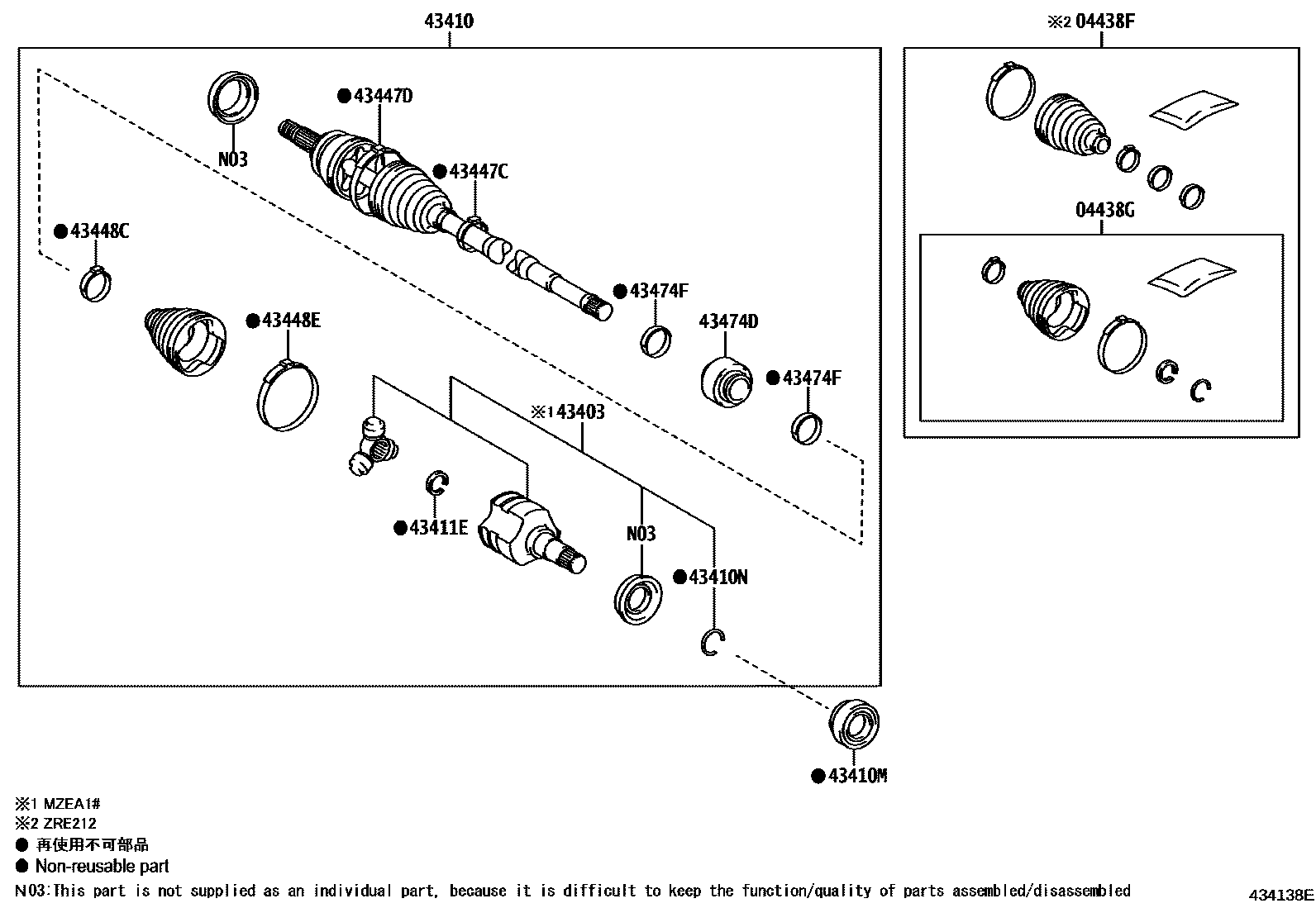

Toyota COROLLA (MEXICO) — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02760iZRE212201903-202111

sub04427-02761

main04427-02761iZRE212202111-202211

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02700iZRE212201903-202211

main04437-02710iMZEA12201903-202410

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-02120iMZEA1#201903-202410

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02A30iZRE212201903-202104

main43410-02A31iZRE212202105-202106

sub43410-02A32

main43410-02A32iZRE212202107-202211

main43410-02C10iMZEA12201903-202104

main43410-02C11iMZEA12202105-202106

sub43410-02C12

main43410-02C12iMZEA1#202107-202410

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35065iZRE212..6F¥270201903-202211

main90311-35076iZRE212..CVT¥400201903-202211

main90311-40047iMZEA1#¥470201903-202410

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-01030iZRE212¥50201903-202211

main43425-07040iMZEA12¥40201903-202410

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-01040iZRE212¥50201903-202211

main43425-0R010iMZEA1#201903-202410

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R040iZRE212;MZEA12..CVT202105-202410

main42345-0R080iZRE212201903-202104

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R030iMZEA12..6F202105-202410

main42345-0R070iZRE212¥430201903-202104

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-01060iZRE212201903-202211

main42345-0R080iMZEA1#201903-202410

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02B10iZRE212201903-202211

main42345-06A00iMZEA12201903-202410

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-01021iZRE212201903-202211

main43474-02490iMZEA12..CVT201903-202410

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02871iZRE212201903-202211

main42345-02B70iMZEA12..CVT201903-202410

13 parts on this diagram · 2 diagrams in section
