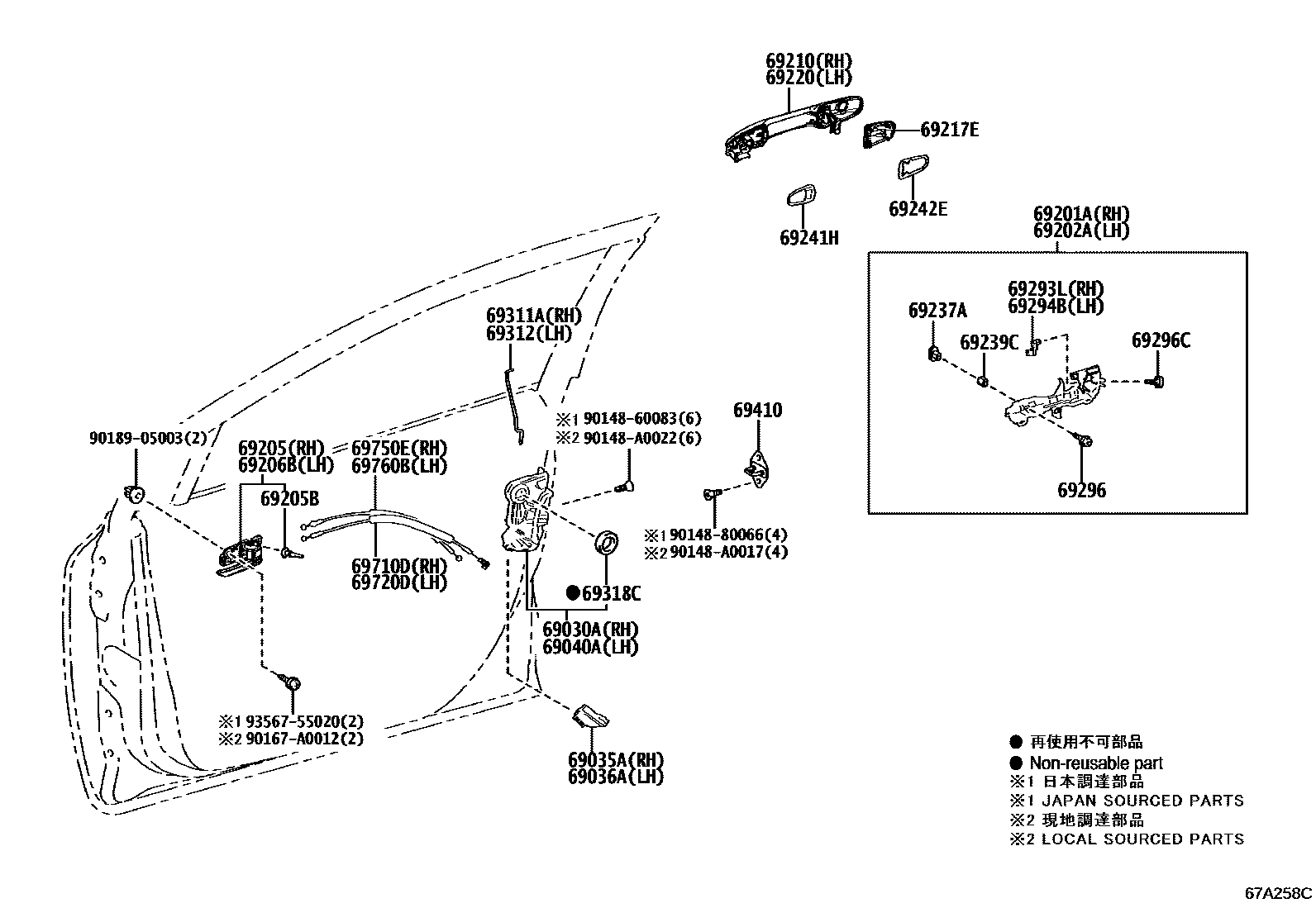

Toyota COROLLA (MEXICO) — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
FROMAGE,TRIM0#
FROMAGE,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#
COOL GRAY,TRIM1#,22,23
COOL GRAY,TRIM22,23
LT.GRAY,TRIM1#
BLACK,TRIM2#
DOOR INSIDE HANDLE-SATIN PAINT,BLACK,TRIM2#
BLACK,TRIM20,21
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
FROMAGE,TRIM0#
FROMAGE,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#
COOL GRAY,TRIM1#,22,23
COOL GRAY,TRIM22,23
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM20,21
DOOR INSIDE HANDLE-SATIN PAINT,BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089 ,2PS ,2UE
PLATINUM WHITE PEARL MC.,089
SUPER WHITE 2,040
SUPER WHITE 2,040 ,2UE
SILVER ME.,1F7
SILVER ME.,1F7 ,2UF
CELESTITE GRAY ME.,1K3
CELESTITE GRAY ME.,1K3 ,2YC
DK.GRAY,1L7
DK.GRAY,1L7 ,2YE
ATTITUDE BLACK MC.,218
RED MC.,3T3
RED MC.,2YD ,3T3
DK. BLUE MC.,8X8
DK. BLUE MC.,2RA ,8X8
PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS ,2UE
PLATINUM WHITE PEARL MC.,089 ,2PS
SUPER WHITE 2,040
SUPER WHITE 2,040 ,2UE
SILVER ME.,1F7
SILVER ME.,1F7 ,2UF
CELESTITE GRAY ME.,1K3
CELESTITE GRAY ME.,1K3 ,2YC
DK.GRAY,1L7
DK.GRAY,1L7 ,2YE
ATTITUDE BLACK MC.,218
RED MC.,3T3
RED MC.,2YD ,3T3
DK. BLUE MC.,2RA ,8X8
DK. BLUE MC.,8X8
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014860083
9014880066
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0012
main90167-A0012
9018905003
9356755020
35 parts on this diagram · 1 diagram in section
