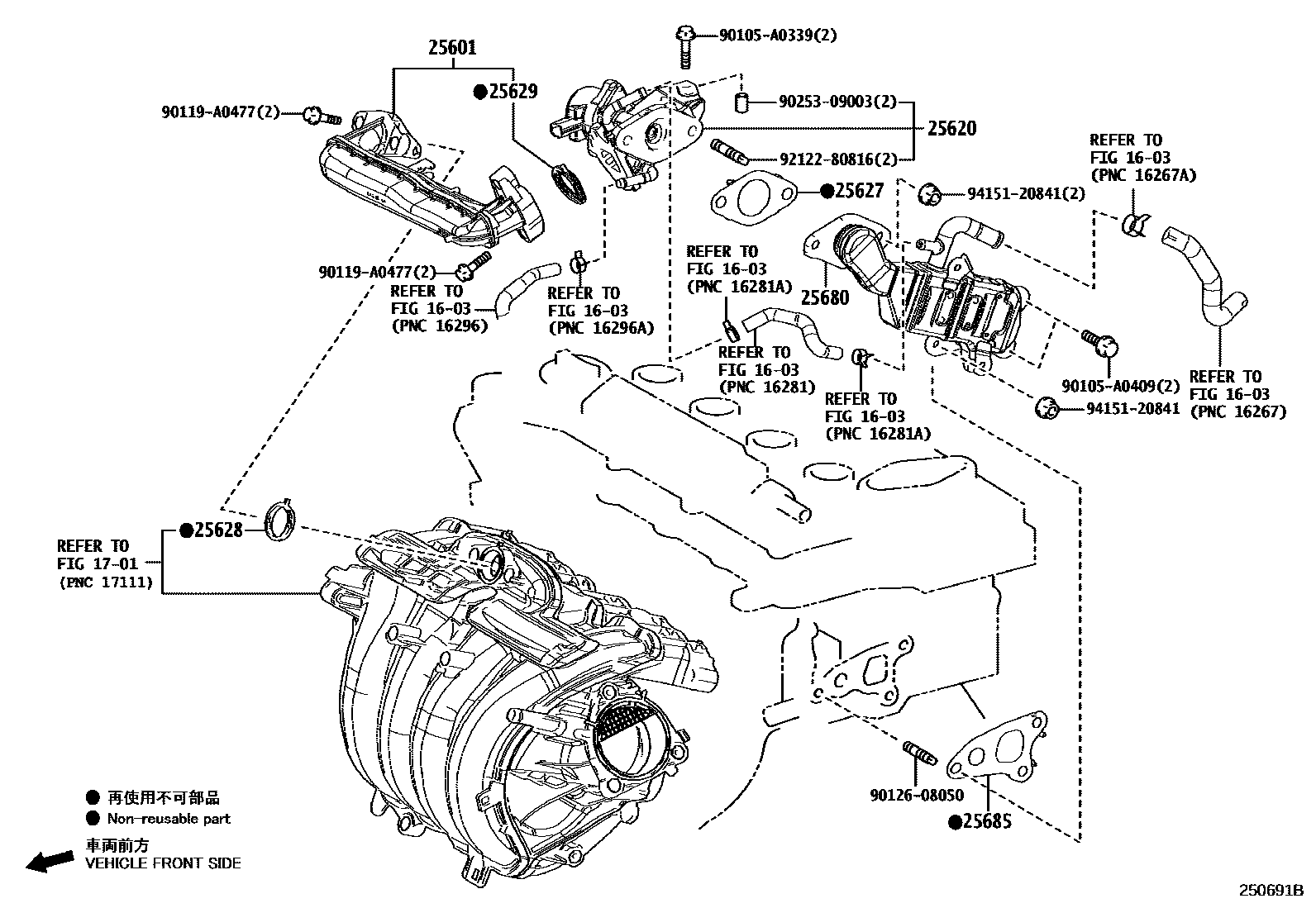

Toyota COROLLA (MEXICO) — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-F2011iM20AFKS..MZEA12..CVT201903-202410

25620VALVE ASSY, EGR

main25620-24050iM20AFKS..MZEA12..6F¥18,400201903-202410

(J)

main25620-F2010iM20AFKS..MZEA12..6F201904-202410

(L)

25627GASKET, EGR VALVE

main25627-F2010iM20AFKS..MZEA1#201903-202410

25628GASKET, EGR INLET

main25628-25010iM20AFKS..MZEA1#¥340201903-202410

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20AFKS..MZEA1#¥340201903-202410

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MZEA1#¥16,700201903-202410

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20AFKS..MZEA1#¥270201903-202410

90105A0339

main90105-A0339

90105A0409

main90105-A0409

90119A0477

main90119-A0477

9012608050

main90126-08050¥80

9025309003

main90253-09003¥50

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

16 parts on this diagram · 1 diagram in section
