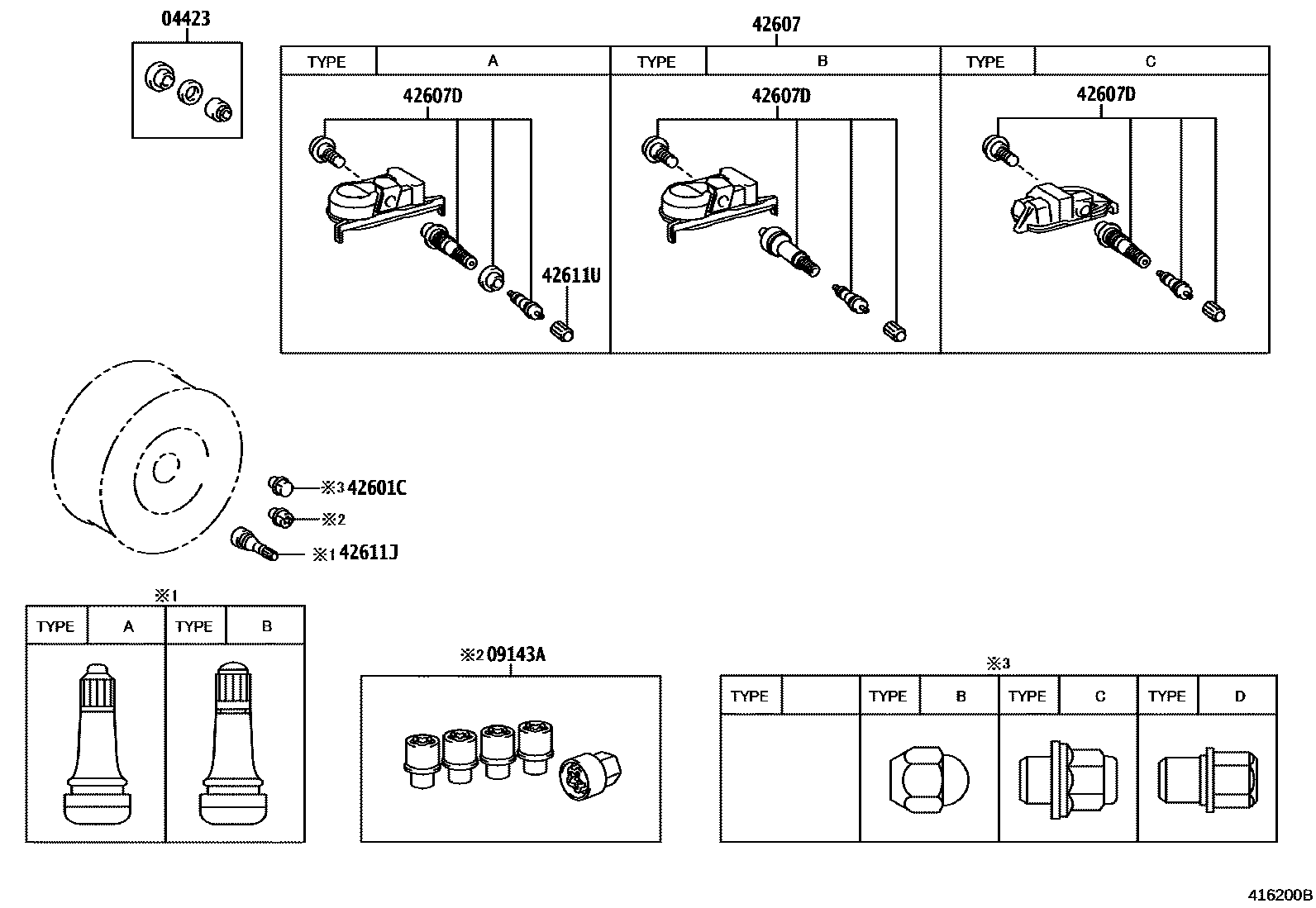

Toyota COROLLA (MEXICO) — DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010i¥280201903-202410

09143ANUT, WHEEL LOCK W/SOCKET WRENCH

main09143-YY070i202211-202410

main09143-YY090i202211-202410

42601WHEEL, DISC

main42611-02P80i202211-202410

17X7J,#,TYPE D:REFER ILLUST.

main42611-02Q50i201903-202211

16X7J,#,TYPE A:REFER ILLUST.

sub42611-02Q51

main42611-02Q51i202304-202410

16X7J,#,TYPE A:REFER ILLUST.

main42611-02Q60i201903-202007

16X7J,#,TYPE B:REFER ILLUST.

sub42611-02Q61

main42611-02Q61i202007-202211

16X7J,#,TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTERORNAMENT(FOR ALUMI), LOCK NUT,TYPE B:REFER ILLUST.

main42611-02Q61i202007-202211

16X7J,#,TYPE B:REFER ILLUST.

main42611-02Q61i202007-202211

16X7J,#,TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTERORNAMENT(FOR ALUMI),TYPE B:REFER ILLUST.

main42611-02Y20i202211-202410

16X7J,#,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main09143-YY030i202211-202410

TYPE D:REFER ILLUST.

main90084-94001i¥410202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE C:REFER ILLUST.

sub90942-A1009¥370

main90084-94001i¥410201903-202007

TIRE&DISC WHEEL-205/55R16 ALUMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE C:REFER ILLUST.

sub90942-A1009¥370

main90084-94001i¥410201903-202211

WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE C:REFER ILLUST.

sub90942-A1009¥370

main90084-94001i¥410201903-202310

TYPE C:REFER ILLUST.

sub90942-A1009¥370

main90084-94001i¥410201903-202007

TIRE&DISC WHEEL-205/55R16 ALUMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.

sub90942-A1009¥370

main90084-94001i¥410202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.

sub90942-A1009¥370

main90942-01082i¥390202007-202211

WHEEL CAP-16"BOLT-ON COVER,NUT,TYPE B:REFER ILLUST.

main90942-01082i¥390201903-202211

TYPE B:REFER ILLUST.

main90942-A1009i¥370202311-202410

TYPE C:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02050i202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE B:REFER ILLUST.

main42607-02050i202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE B:REFER ILLUST.

main42607-02050i201903-202304

TYPE B:REFER ILLUST.

main42607-02100i201903-202211

TYPE A:REFER ILLUST.

main42607-0E090i202304-202410

TYPE C:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-A5005i202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE B:REFER ILLUST.

main90942-A5005i202007-202211

TIRE&DISC WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD SPEC&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE B:REFER ILLUST.

main90942-A5005i201903-202304

TYPE B:REFER ILLUST.

main90942-A5007i201903-202211

TYPE A:REFER ILLUST.

main90942-A5010i202304-202410

TYPE C:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i¥1,020201903-202004

TYPE A:REFER ILLUST.

main90080-45006i¥470201903-202410

TYPE B:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-A5002i¥90201903-202211

8 parts on this diagram · 2 diagrams in section
