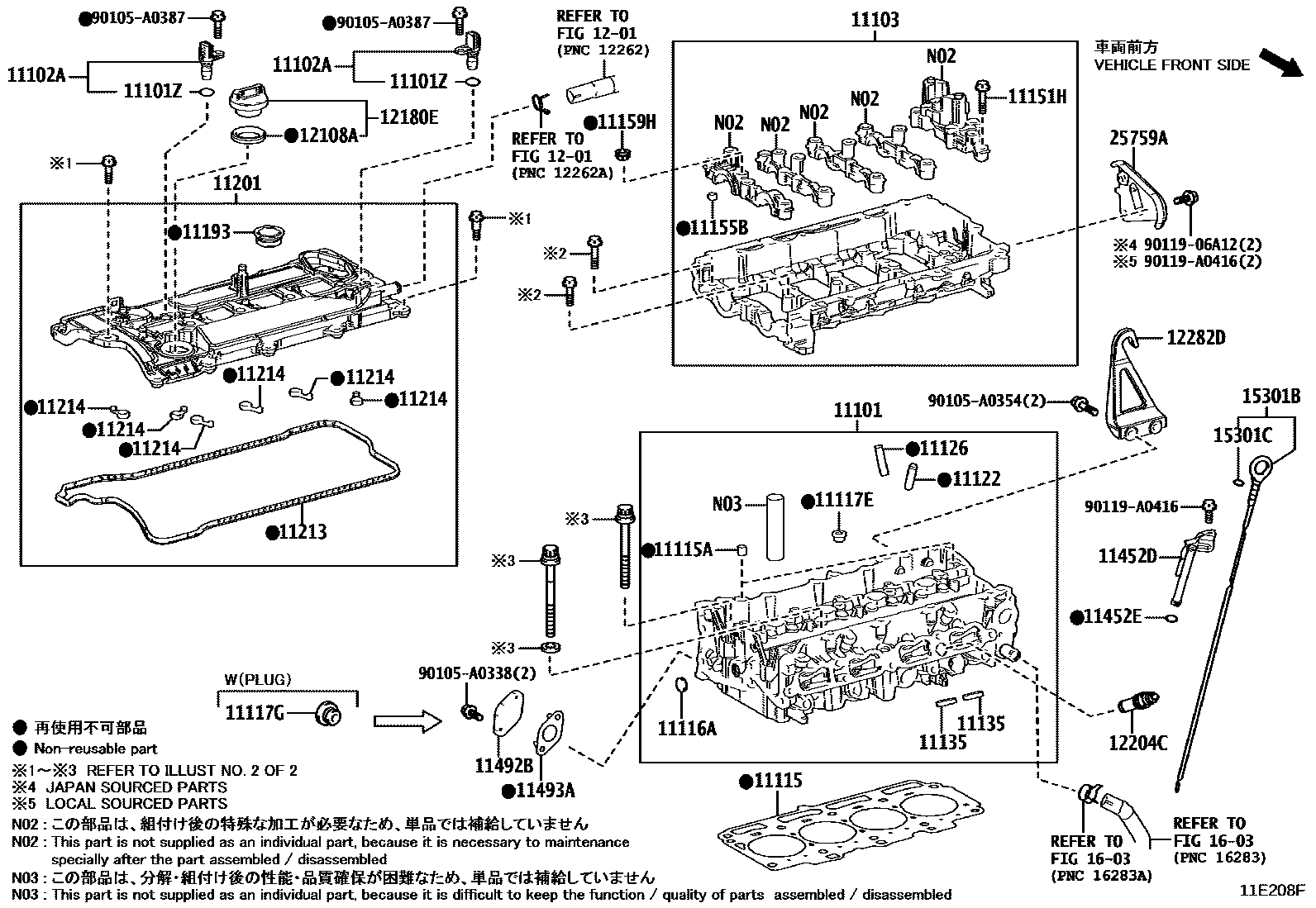

Toyota COROLLA (MEXICO) — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
(J)
(J)
(J)
(L)
(L)
(L)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11115GASKET, CYLINDER HEAD
11115APIN, RING
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(J)
(J)
(J)
(J)
(L)
(L)
(L)
(L)
(L)
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD
STD,*380 OR *475
STD,MADE IN TMMNA
STD,MADE IN JAPAN
STD
STD,MADE IN TMMNA,MADE IN JAPAN
STD
O/S 0.05
O/S 0.05,MADE IN JAPAN
O/S 0.05,MADE IN TMMNA
O/S 0.05
O/S 0.05,MADE IN TMMNA,MADE IN JAPAN
O/S 0.05,*380 OR *475
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,*380 OR *475
STD,*380 OR *475
STD,*380 OR *475
STD,*380 OR *475
O/S 0.05,*380 OR *475
O/S 0.05,*380 OR *475
O/S 0.05,*380 OR *475
O/S 0.05,*380 OR *475
STD,MADE IN TMMNA
STD,MADE IN JAPAN
STD,MADE IN TMMNA,MADE IN JAPAN
O/S 0.05,MADE IN JAPAN
O/S 0.05,MADE IN TMMNA
O/S 0.05,MADE IN TMMNA,MADE IN JAPAN
11135SEAT, EXHAUST VALVE
STD,MADE IN TMMNA
STD
STD,(J)
STD,(J)
STD,(J)
STD,(J)
STD,(J)
STD
STD,(L)
STD,(L)
STD,(L)
STD,(L)
STD,(L)
O/S 0.03
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
(L)
(L)
(J)
(J)
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11452DGUIDE, OIL LEVEL GAGE
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
11492BPLATE, WATER SEAL
11493AGASKET, WATER SEAL PLATE
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
(J)
12180ECAP ASSY, OIL FILLER
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
15301BGAGE SUB-ASSY, OIL LEVEL
15301CRING, O(FOR OIL LEVEL GAGE)
1603
25759ABRACKET, VACUUM SURGE TANK
90105A0338
main90105-A0338
90105A0354
main90105-A0354
90105A0387
main90105-A0387
9011906A12
90119A0416
main90119-A0416
38 parts on this diagram · 4 diagrams in section
