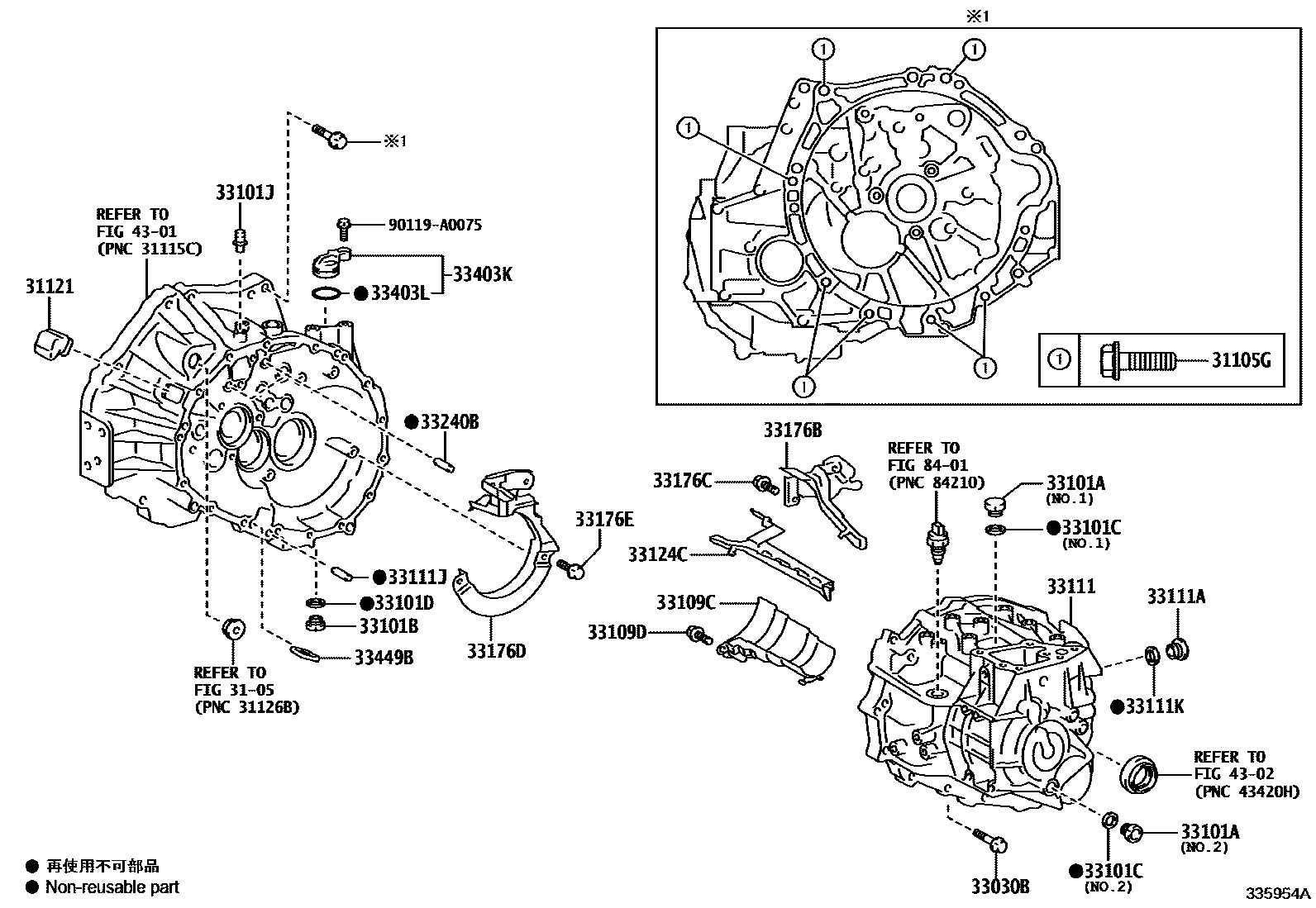

Toyota COROLLA (MEXICO) — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX50-30
*12-1.25PX50-30
*8-1.25PX35-22
*8-1.25PX35-22
*10-1.25PX45-36
*10-1.25PX45-36
*10-1.25PX45-30
*10-1.25PX45-30
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX40-22
*8-1.25PX40-22
*8-1.25PX40-22
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
NO.1
NO.1
NO.2
NO.2
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.2
NO.2
NO.1
NO.1
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=23,OD=8
33111KGASKET(FOR TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
33176DSEPARATOR, TRANSMISSION OIL, NO.2(MTM)
33176EBOLT(FOR TRANSMISSION OIL SEPARATOR NO.2)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33449BMAGNET, TRANSMISSION
4301
4302
8401
90119A0075
28 parts on this diagram · 2 diagrams in section
