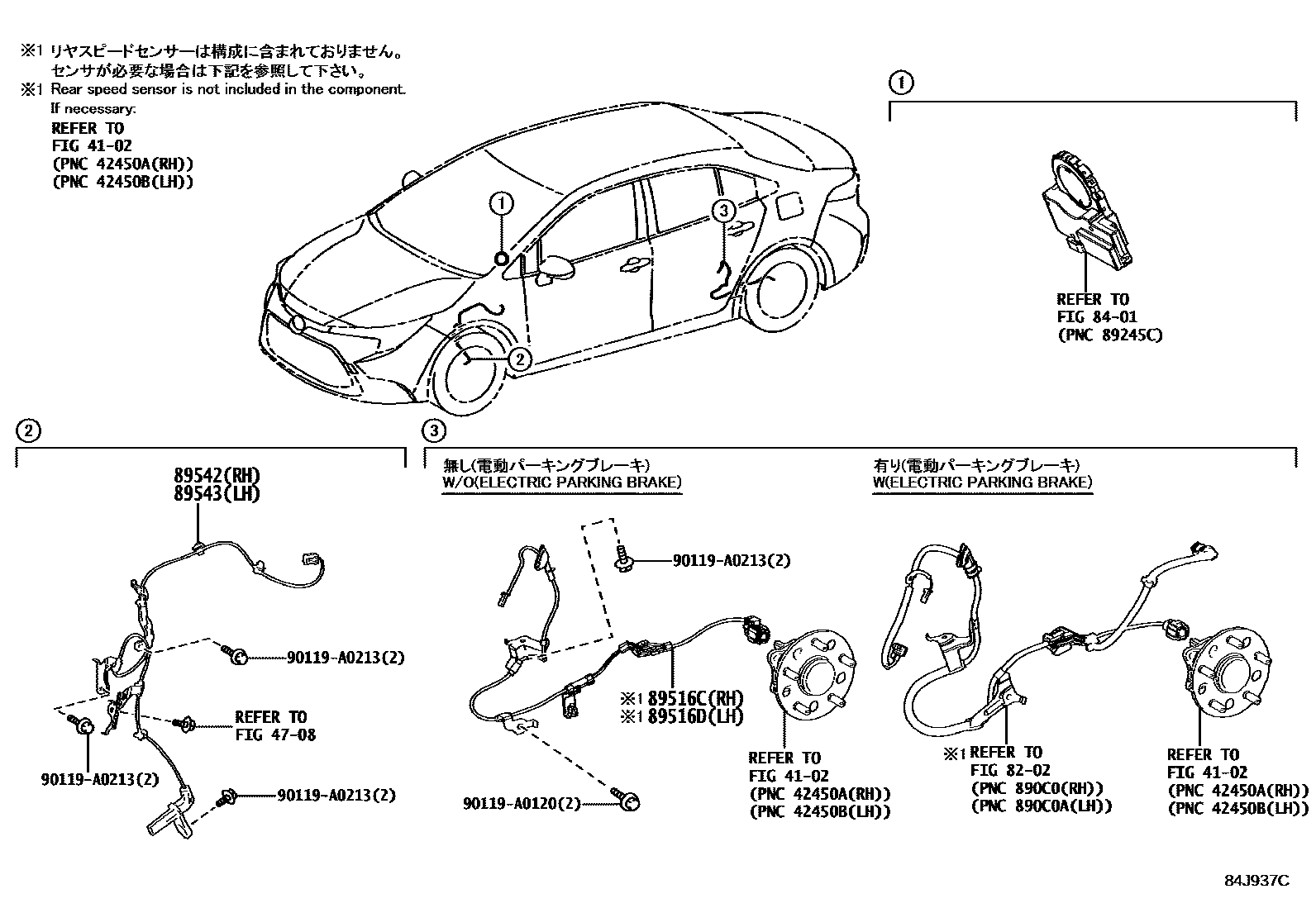

Toyota COROLLA (MEXICO) — ABS & VSC

4102

4708

8202

8401

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-06230iMZEA12,ZRE212201903-202007

main89516-06230iMZEA12..6F202007-202106

main89516-06230iZRE212;MZEA12..CVT202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-06240iMZEA12,ZRE212201903-202007

main89516-06240iMZEA12..6F202007-202106

main89516-06240iZRE212;MZEA12..CVT202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

89542SENSOR, SPEED, FRONT RH

main89542-02160iMZEA1#202410

main89542-02160iMZEA12,ZRE212201903-202007

main89542-02160iMZEA12..6F202007-202106

main89542-02160iZRE212;MZEA12..CVT202007-202211

main89542-02160iMZEA1#202211-202410

89543SENSOR, SPEED, FRONT LH

main89543-02160iMZEA1#202410

main89543-02160iMZEA12,ZRE212201903-202007

main89543-02160iMZEA12..6F202007-202106

main89543-02160iZRE212;MZEA12..CVT202007-202211

main89543-02160iMZEA1#202211-202410

90119A0120

main90119-A0120

90119A0213

main90119-A0213

10 parts on this diagram · 1 diagram in section
