Toyota COROLLA (MEXICO) — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 1/2 0006 1ENGINE 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1ENGINE 1/2 0012 1ENGINE 2/2 0013 1ENGINE 1/3 0014 1ENGINE 2/3 0015 1ENGINE 3/3 0016 1INSTRUMENT PANEL 0017 1DOOR 0018 1FLOOR & ROOF 0019 1FLOOR & ROOF 0021 1FLOOR & ROOF 0022 1SEAT 0023 1CLAMP & BRACKET 1/2 0024 1CLAMP & BRACKET 2/2 0025 1CONNECTOR 1/3 0026 1CONNECTOR 2/3 0027 1CONNECTOR 3/3

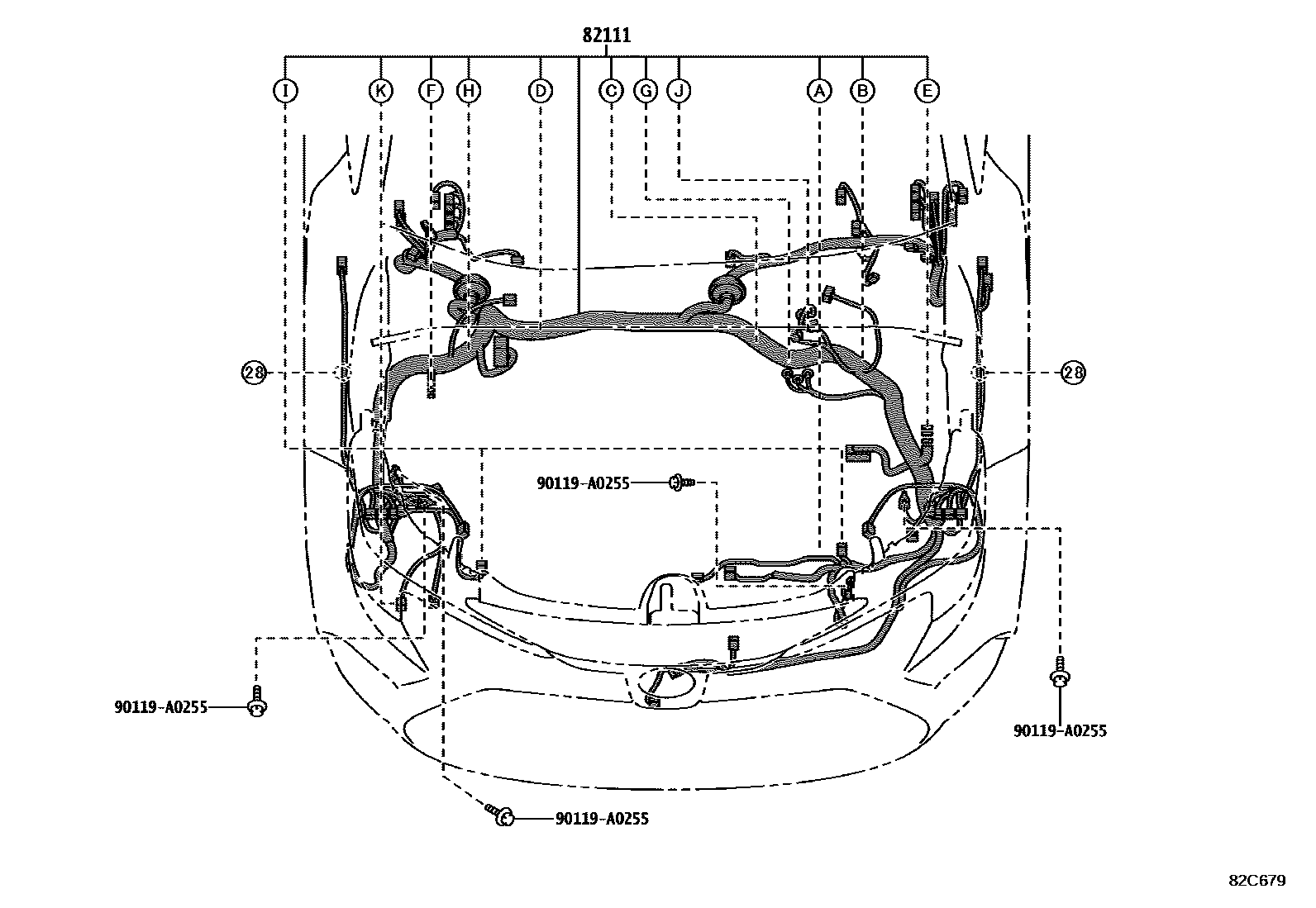

82111WIRE, ENGINE ROOM MAIN

main82111-F2B80iZRE212..6F201903-202007

main82111-F2B81iZRE212..6F202007-202107

main82111-F2C50iZRE212..CVT201903-202007

main82111-F2C51iZRE212..CVT202007-202107

main82111-F2D30iMZEA12..6F201903-202007

main82111-F2D31iMZEA12..6F202007-202106

main82111-F2D60iMZEA12..CVT201903-202007

main82111-F2D61iMZEA12..CVT202007-202107

main82111-FEQ21iMZEA12202410

main82115-F2F80iMZEA18202211-202410

main82115-F2Q60iMZEA12202211-202311

main82115-F2Q61iMZEA12202311-202410

main82115-F2W70iZRE212..6F202107-202211

main82115-F2W80iZRE212..CVT202107-202211

main82115-F2X20iMZEA12202107-202211

main82116-0ZT90iMZEA18202410

90119A0255

main90119-A0255

2 parts on this diagram · 26 diagrams in section
