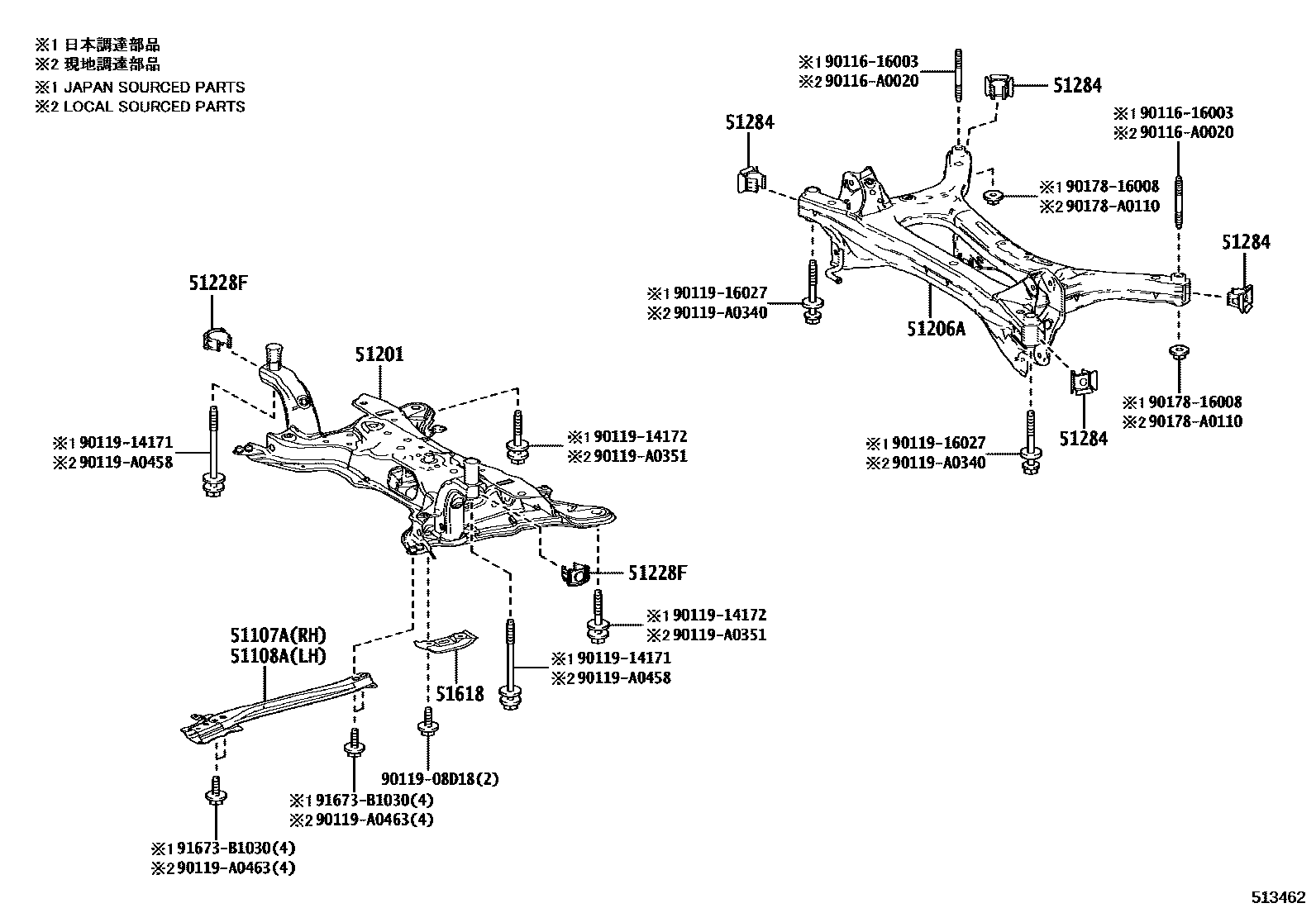

Toyota COROLLA (MEXICO) — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER 0005 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-02070iMZEA1#202410

main51107-02070iMZEA12..6F202007-202106

main51107-02070iZRE212;MZEA12..CVT202007-202211

main51107-02070iMZEA12,ZRE212201903-202007

main51107-02070iMZEA1#202211-202410

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-02070iMZEA1#202410

main51108-02070iMZEA12,ZRE212201903-202007

main51108-02070iMZEA12..6F202007-202106

main51108-02070iZRE212;MZEA12..CVT202007-202211

main51108-02070iMZEA1#202211-202410

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02221iMZEA1#202410

main51201-02221iMZEA12,ZRE212201903-202007

main51201-02221iMZEA12..6F202007-202106

main51201-02221iZRE212;MZEA12..CVT202007-202211

main51201-02221iMZEA1#202211-202410

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02060iMZEA12202410

main51206-02060iMZEA12,ZRE212201903-202007

main51206-02060iMZEA12..6F202007-202106

main51206-02060iZRE212;MZEA12..CVT202007-202211

main51206-02060iMZEA12202211-202410

51228FPLATE, FRONT SUSPENSION MEMBER DUMPER

main51228-02050iZRE212;MZEA12..CVT202007-202211

main51228-02050iMZEA1#202410

main51228-02050iMZEA12,ZRE212201903-202007

main51228-02050iMZEA12..6F202007-202106

main51228-02050iMZEA1#202211-202410

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-02020iMZEA12,ZRE212201903-202007

main51284-02020iMZEA12202410

main51284-02020iMZEA12..6F202007-202106

main51284-02020iZRE212;MZEA12..CVT202007-202211

main51284-02020iMZEA12202211-202410

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010iMZEA1#202410

main51618-47010iMZEA12,ZRE212201903-202007

main51618-47010iMZEA12..6F202007-202106

main51618-47010iZRE212;MZEA12..CVT202007-202211

main51618-47010iMZEA1#202211-202410

9011616003

main90116-16003¥540

90116A0020

main90116-A0020

9011908D18

main90119-08D18¥80

9011914171

main90119-14171¥430

9011914172

main90119-14172¥310

9011916027

main90119-16027¥540

90119A0340

main90119-A0340

90119A0351

main90119-A0351

90119A0458

main90119-A0458

90119A0463

main90119-A0463

9017816008

main90178-16008¥190

90178A0110

main90178-A0110

91673B1030

main91673-B1030¥120

20 parts on this diagram · 5 diagrams in section
