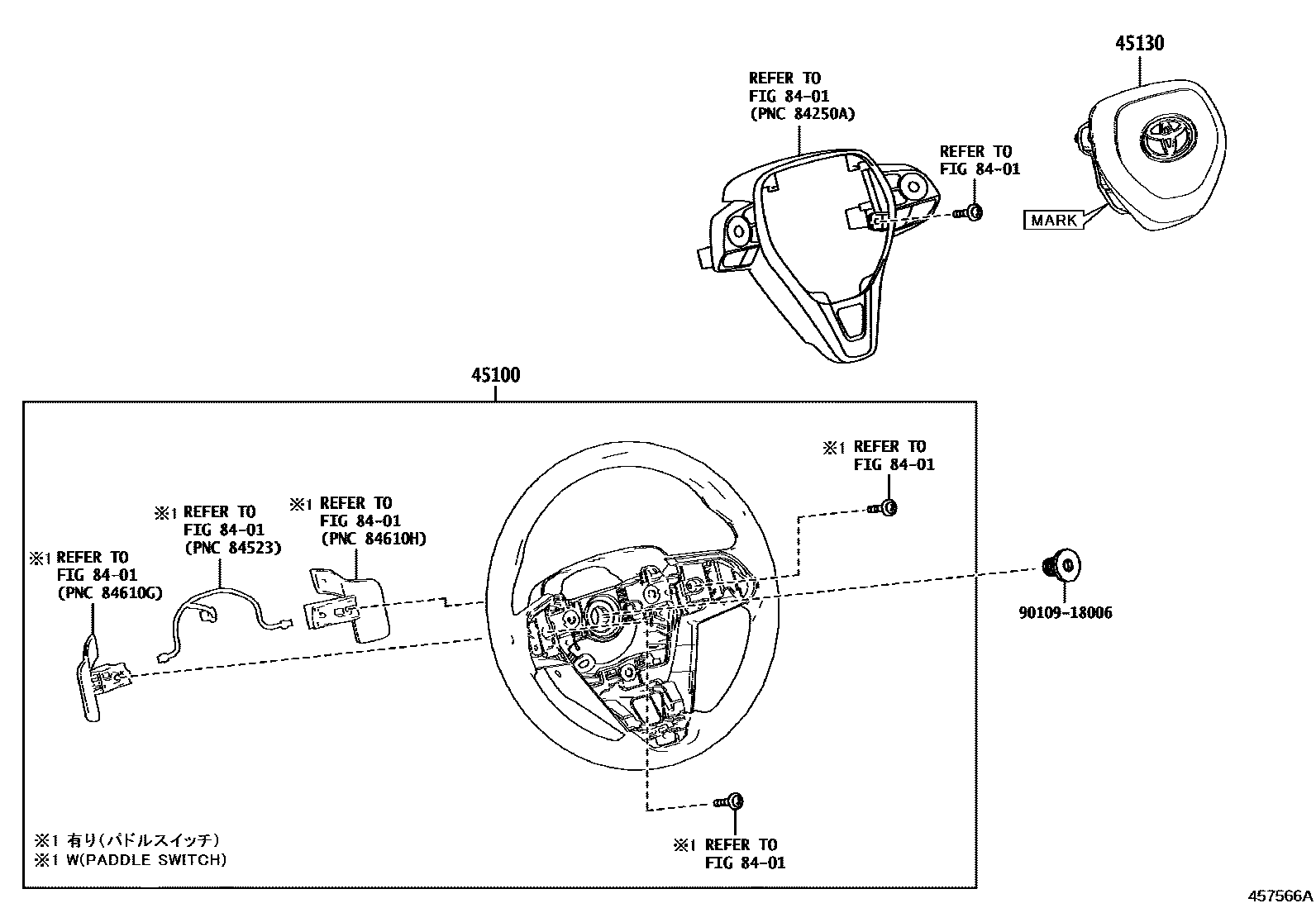

Toyota COROLLA (MEXICO) — STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM0#,1#,2#,TYPE B,REF PNC 45130
3-SPOKE,URETHANE,BLACK,TRIM1#,2#,TYPE B,REF PNC 45130
3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,2#,TYPE B,REF PNC 45130
sub45100-0Z120
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER,BLACK & BLACK,TRIM0#,1#,2#,TYPE B,REF PNC 45130
sub45100-0Z120
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER,BLACK & BLACK,TRIM1#,2#,TYPE B,REFPNC 45130
sub45100-0Z120
3-SPOKE,LEATHER,BLACK & BLACK,TRIM2#,TYPE B,REF PNC 45130
sub45100-0Z120
3-SPOKE,LEATHER,BLACK,TRIM1#,2#,TYPE B,REF PNC 45130
sub45100-0Z120
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM0#,1#,2#,TYPE B,REF PNC45130
sub45100-0Z120
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM1#,2#,TYPE B,REF PNC 45130
sub45100-0Z120
3-SPOKE,LEATHER,BLACK & BLACK,TRIM2#,TYPE B,REF PNC 45130
sub45100-0Z130
3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,2#,TYPE B,REF PNC 45130
sub45100-0Z130
3-SPOKE,LEATHER,BLACK,TRIM1#,2#,TYPE B,REF PNC 45130
sub45100-0Z130
3-SPOKE,URETHANE,BLACK,TRIM0#,1#,2#,TYPE A,REF PNC 45130
3-SPOKE,URETHANE,BLACK,TRIM1#,2#,TYPE A,REF PNC 45130
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM1#,2#,TYPE A,REF PNC 45130
3-SPOKE,LEATHER,BLACK,TRIM2#,TYPE A,REF PNC 45130
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM0#,1#,2#,TYPE A,REF PNC45130
3-SPOKE,LEATHER,BLACK,TRIM2#,TYPE A,REF PNC 45130
45130BUTTON ASSY, HORN
MARK=AUTOLIV
BLACK,TRIM0#,1#,2#,MARK=AUTOLIV
BLACK,TRIM1#,2#,MARK=AUTOLIV
BLACK,TRIM2#,MARK=AUTOLIV
8401
9010918006
4 parts on this diagram · 2 diagrams in section
