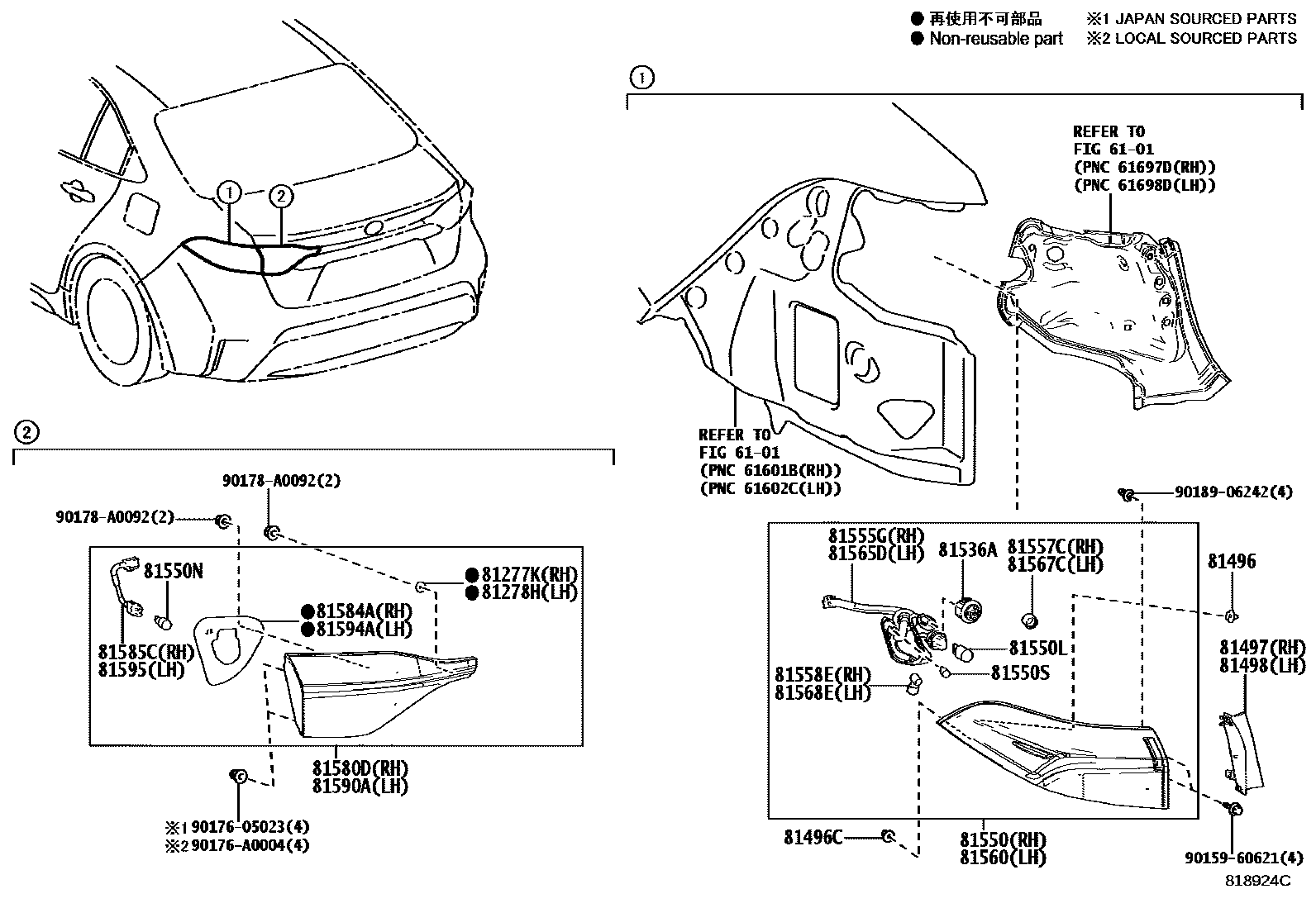

Toyota COROLLA (MEXICO) — REAR COMBINATION LAMP
6101
81277KSHADE, LICENSE PLATE LAMP, RH
81278HSHADE, LICENSE PLATE LAMP, LH
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81536ALED, REAR COMBINATION LAMP
TYPE A
HIGH GRADE PACKAGE
TYPE B
81550LAMP ASSY, REAR COMBINATION, RH
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81550SBULB, REAR SIDE MARKER LAMP
12V 5W
81555GCORD, REAR COMBINATION LAMP, RH
81557CCOVER, REAR COMBINATION LAMP, RH
81558ECOVER, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81565DCORD, REAR COMBINATION LAMP, LH
81567CCOVER, REAR COMBINATION LAMP, LH
81568ECOVER, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81584AGASKET, REAR LAMP RH
81585CSOCKET & WIRE, REAR LAMP, RH
81590ALAMP ASSY, REAR, LH
81594AGASKET, REAR LAMP LH
81595SOCKET & WIRE, REAR LAMP, LH
9015960621
9017605023
90176A0004
main90176-A0004
90178A0092
9018906242
30 parts on this diagram · 2 diagrams in section
