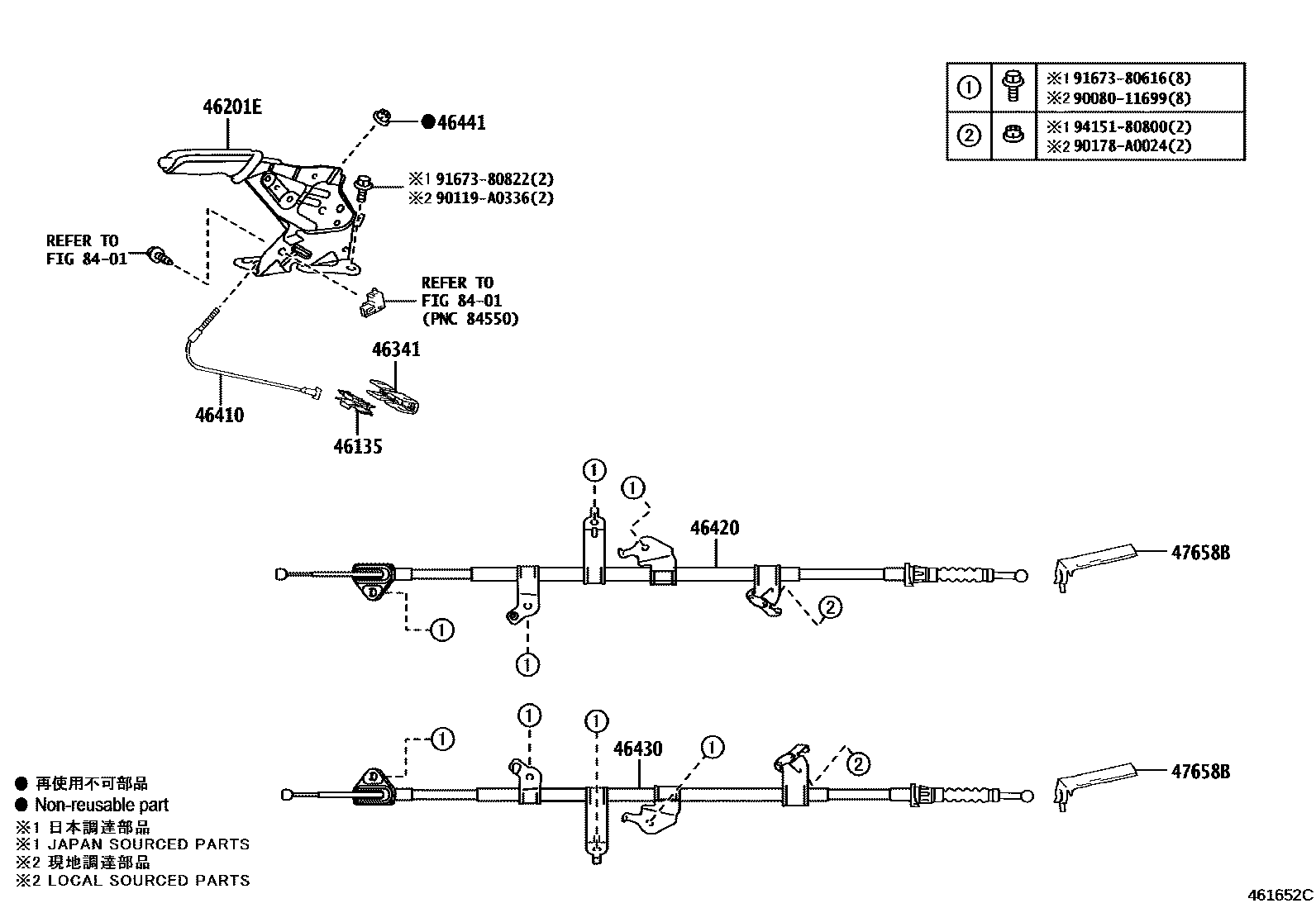

Toyota COROLLA (MEXICO) — PARKING BRAKE & CABLE

0001 1 0002 1ELECTRIC PARKING BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iMZEA12,ZRE212¥220201903-202106

main46135-12010iZRE212;MZEA12..CVT¥220202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12560-C0iZRE212..L201903-202211

BLACK,TRIM0#,1#,2#

main46201-12560-C0iZRE212..L201903-202211

BLACK,TRIM1#,2#

main46201-12560-C0iMZEA12..6F202007-202211

BLACK,TRIM2#

main46201-12560-C0iZRE212..L202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE,BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-12040iMZEA12,ZRE212¥470201903-202106

main46341-12040iZRE212;MZEA12..CVT¥470202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12340iMZEA12,ZRE212201903-202106

main46410-12340iZRE212;MZEA12..CVT202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02390iMZEA12,ZRE212201903-202106

main46420-02390iZRE212;MZEA12..CVT202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02250iMZEA12,ZRE212201903-202106

main46430-02250iZRE212;MZEA12..CVT202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iMZEA12,ZRE212¥80201903-202106

main90177-06003iZRE212;MZEA12..CVT¥80202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iMZEA12,ZRE212¥510201903-202106

main47658-47010iZRE212;MZEA12..CVT¥510202007-202211

PARKING BRAKE-ELECTRIC PARKING BRAKE

8401

9008011699

main90080-11699¥110

90119A0336

main90119-A0336

90178A0024

main90178-A0024

9167380616

main91673-80616¥60

9167380822

main91673-80822¥80

9415180800

main94151-80800¥80

15 parts on this diagram · 2 diagrams in section
