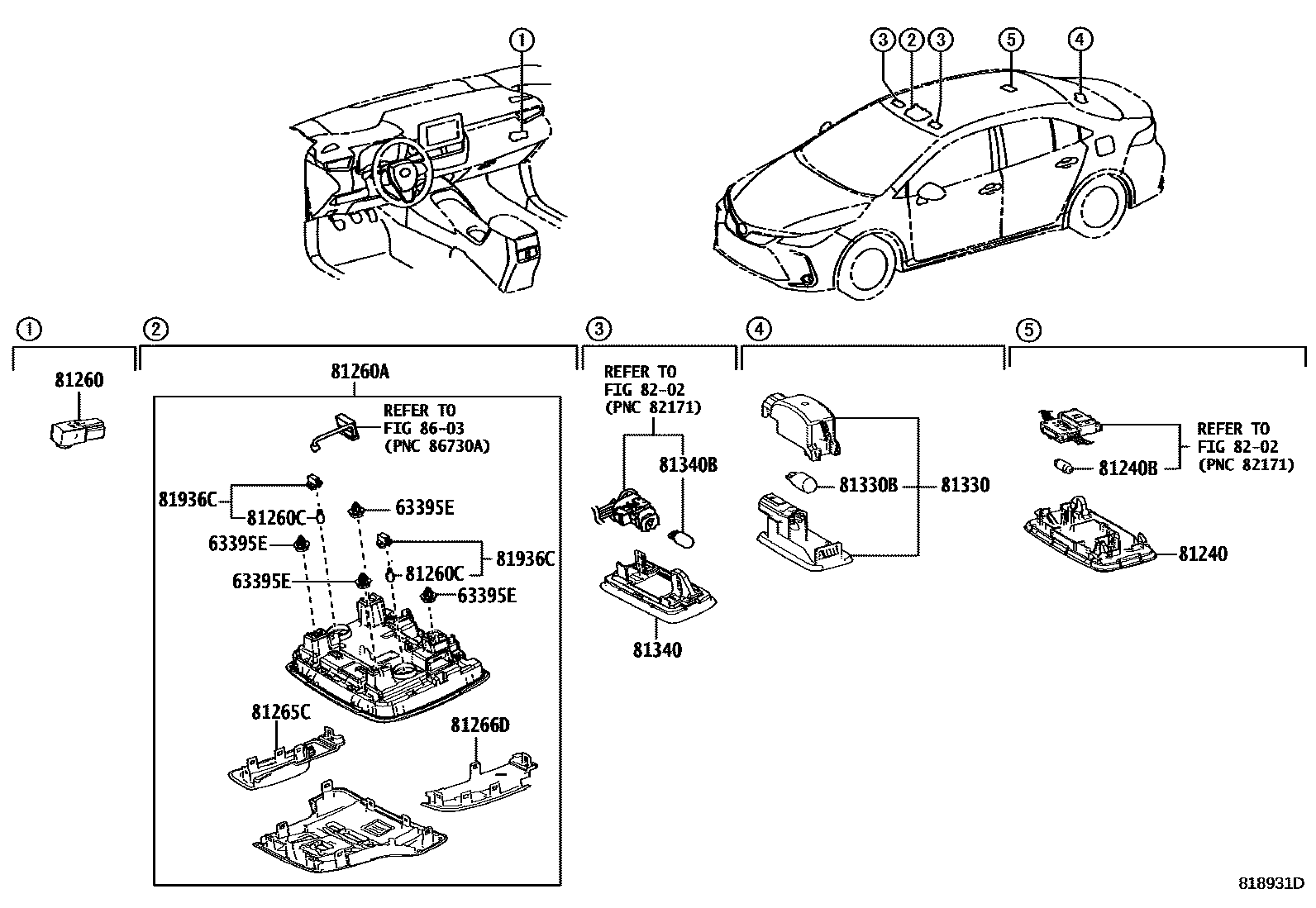

Toyota COROLLA (MEXICO) — INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
MOON ROOF-WITH
81240LAMP ASSY, ROOM, NO.1
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
BLACK,TRIM2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM2#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM1#,2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
BLACK,TRIM2#
81260CBULB(FOR MAP LAMP)
12V 5W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
MOON ROOF-WITH&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
81340BBULB (FOR VANITY LAMP)
12V 8W
81936CBULB ASSY
8202
8603
15 parts on this diagram · 1 diagram in section
