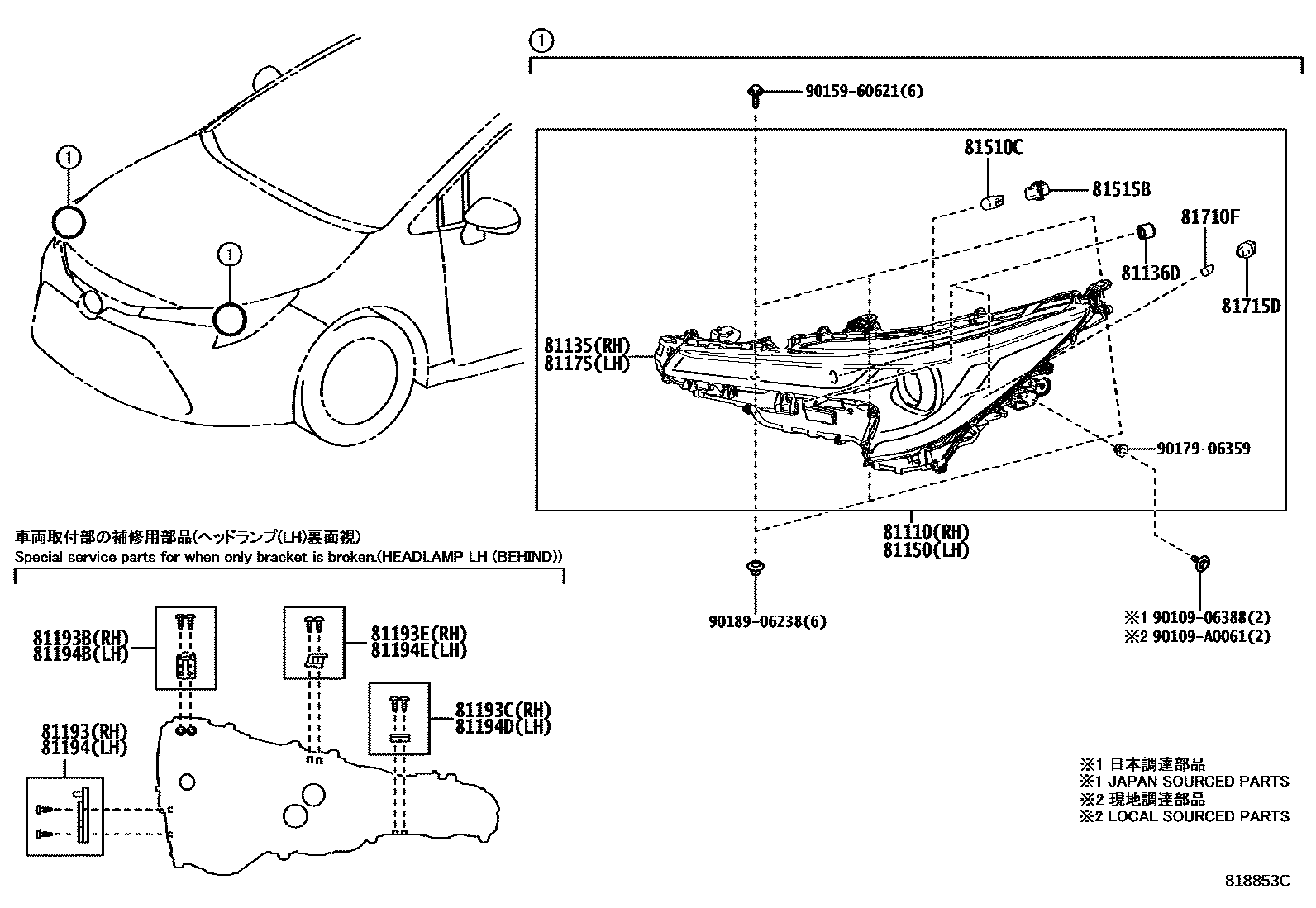

Toyota COROLLA (MEXICO) — HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81136DCOVER, HEADLAMP
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 28/8W
81515BSOCKET, FRONT TURN SIGNAL LAMP
81710FBULB, FRONT SIDE MAKER LAMP
81715DSOCKET PLUG, FRONT MARKER LAMP
9010906388
90109A0061
main90109-A0061
9015960621
9017906359
9018906238
22 parts on this diagram · 2 diagrams in section
