Toyota COROLLA (MEXICO) — DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

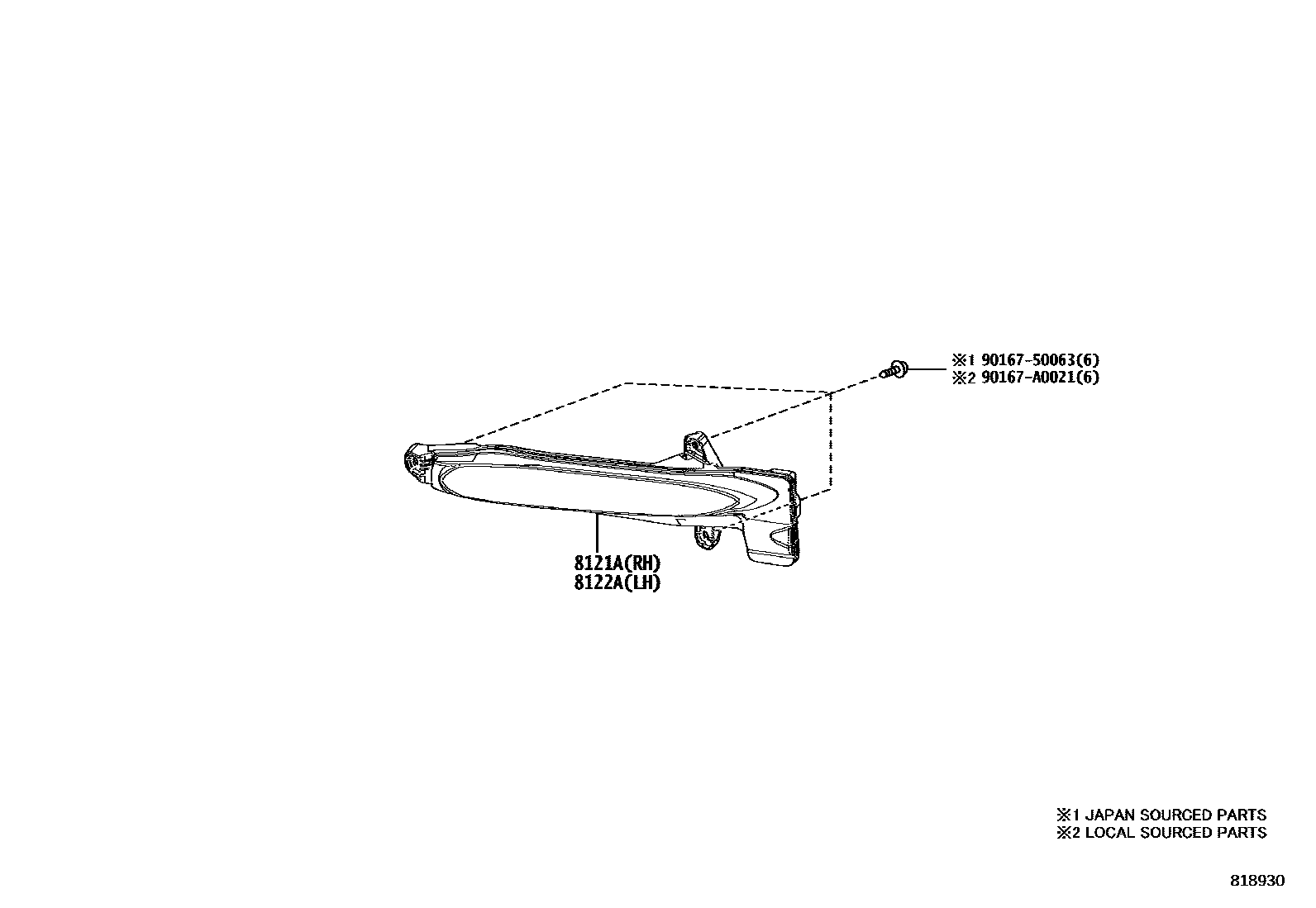

Parts diagram

8121ALAMP, LED ILLUMINATION, RH

main812A0-02010i201903-202001

main812A0-02011i202001-202007

main812A0-02011i202007-202106

main812A0-02011i202410

main812A0-02011i202211-202410

main812A0-02011i202007-202211

8122ALAMP, LED ILLUMINATION, LH

main812B0-02010i201903-202001

main812B0-02011i202211-202410

main812B0-02011i202410

main812B0-02011i202001-202007

main812B0-02011i202007-202106

main812B0-02011i202007-202211

9016750063

main90167-50063¥60

90167A0021

main90167-A0021

4 parts on this diagram · 1 diagram in section
