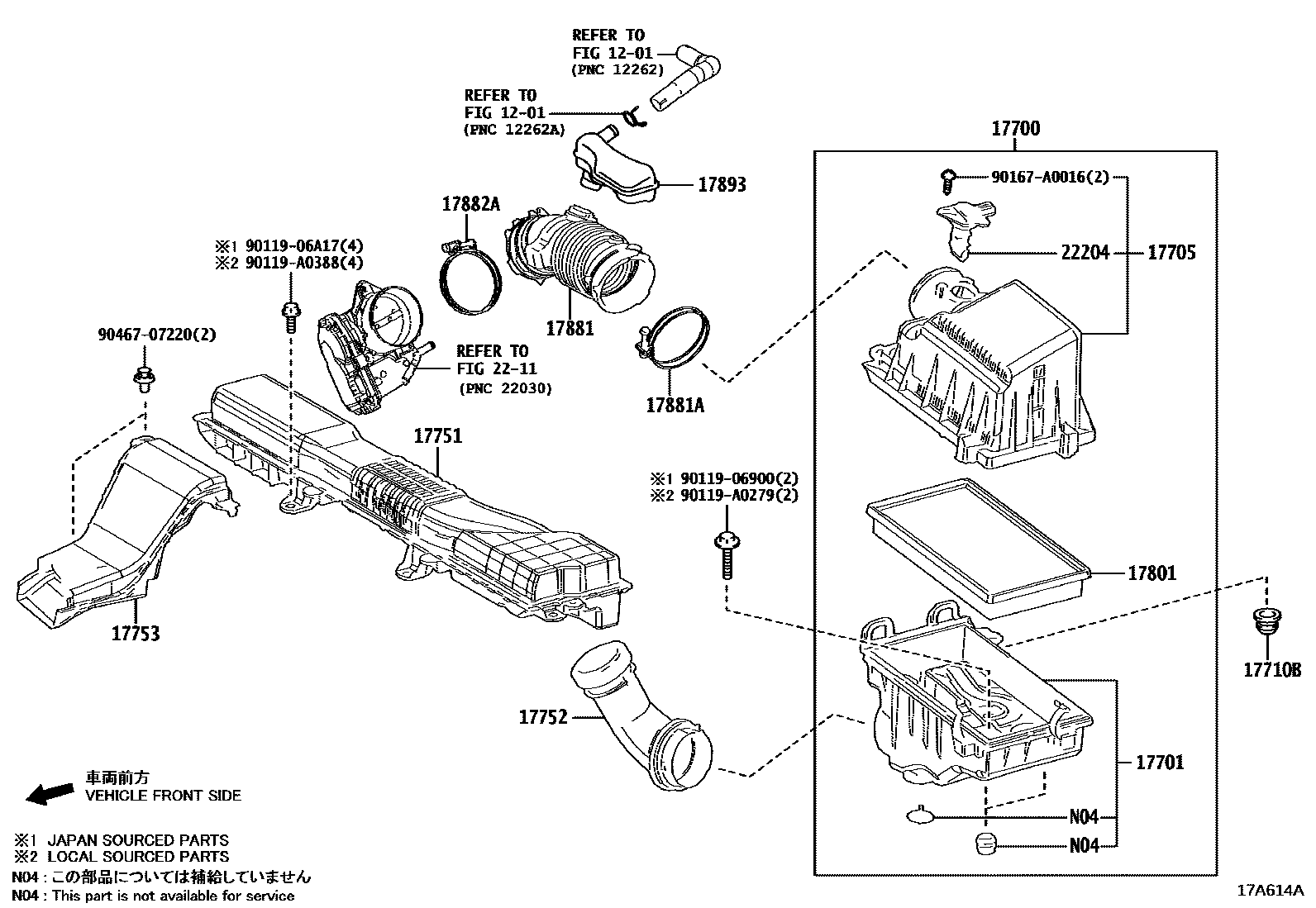

Toyota COROLLA (MEXICO) — AIR CLEANER

0001 1 0003 1 0004 1

1201

17700CLEANER ASSY, AIR

main17700-0T350i2ZRFAE..ZRE212201903-202007

main17700-F2100iM20AFKS..MZEA12..CVT201903-202410

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T210i2ZRFAE..ZRE212201903-202007

main17701-F2010iM20AFKS..MZEA12..6F201903-202410

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T360i2ZRFAE..ZRE212201903-202007

main17705-F2090iM20AFKS..MZEA1#201903-202410

17710BGROMMET

main90480-18006iM20AFKS..MZEA12..6F¥130201903-202410

17751INLET, AIR CLEANER, NO.1

main17751-0T230i2ZRFAE..ZRE212201903-202007

main17751-F2010iM20AFKS..MZEA12..CVT201903-202211

main17751-F2070iM20AFKS..MZEA1#202211-202410

17752INLET, AIR CLEANER, NO.2

main17752-0T080i2ZRFAE..ZRE212201903-202007

main17752-F2010iM20AFKS..MZEA12..CVT201903-202410

17753INLET, AIR CLEANER, NO.3

main17753-0T030i2ZRFAE..ZRE212201903-202211

main17753-F2050iM20AFKS..MZEA1#202211-202410

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iM20AFKS..MZEA12..6F¥2,700201903-202410

(J)

main17801-F0020iM20AFKS..MZEA12201903-202410

(L)

17881HOSE, AIR CLEANER, NO.1

main17881-0T390i2ZRFAE..ZRE212201903-202007

main17881-F2010iM20AFKS..MZEA12201903-202410

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10780i2ZRFAE..ZRE212¥410201903-202007

main96111-10850iM20AFKS..MZEA12..CVT¥240201903-202410

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20AFKS..MZEA1#¥160201903-202410

17893RESONATOR, INTAKE AIR

main17893-F2020iM20AFKS..MZEA1#201903-202410

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iM20AFKS..MZEA1#¥9,400201903-202410

9011906900

main90119-06900¥80

9011906A17

main90119-06A17¥60

90119A0279

main90119-A0279

90119A0388

main90119-A0388

90167A0016

main90167-A0016

9046707220

main90467-07220¥80

21 parts on this diagram · 3 diagrams in section
